| Brand Name: | YINGDA |
| Model Number: | 1X4 1;4 1*4 splitter |
| MOQ: | 100 pcs |
| Price: | negotiable |
| Delivery Time: | 5-8days after payment |
| Payment Terms: | T/T, Western Union, MoneyGram |

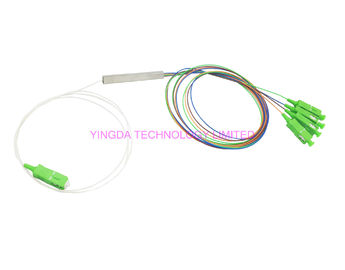

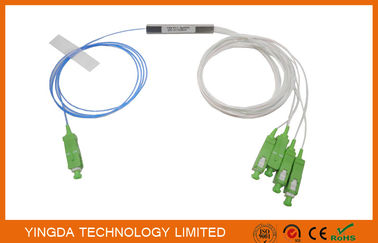

1*4 SC/APC Blockless PLC Splitter Block Type 900um FTTH PON Passive ODN LSZH 1Meter Pigtails
Splitter(planar lightwave circuit splitter) is also called plc splitters, fiber splitter,
fiber optic splitter, optical splitter and fiber optic, According to the different packing
materials also called metalling House PLC Splitter or metal House PLC Splitter which
is based on planar light wave technology, It is widely used in FTTX,EPOM,GPON field.
Shenzhen YINGDA PHOTONIC CO.,LTD have unique competitive advantages in our
PLC product platform by leveraging our strong expertise in PLC splitter chips ,V-groove
and fiber array which is one-stop solution and service.
Our splitters are tested based on the strictest standards of the industry, and we guarantee
quality, turnaround and competitive pricing.
The PLC splitter we offer are:1x2,1x4,1x8,1x16,1x32,1x64,2x4,2x8,2x16,2x32,2x64 PLC splitter in bare device, fanout type,module type, rack mount type and closure types
Features
Corning fiber
Bidirectional, Compact size
Low insertion loss, Low PDL and High reliability
High return loss and Good repeatability
Wide wavelength range
Excellent channel-to-channel uniformity
Telcordia GR-1221-Core Compliant
1x2 through 1x64 Configurations
Applications
LAN, WAN and Metro Networks
FTTH project & FTTX Deployments
CATV System
GPON, EPON
Fiber Optic Test Equipment
Data-base Transmit Broadband Net
Specification
Split ratio | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 1x128 |
Operating Wavelength(nm) | 1260-1620nm | ||||||
Fiber Type | G657A1 or customer specified | ||||||
Insertion Loss (dB)P Grade | 3.8 | 7.1 | 10.2 | 13.5 | 16.5 | 20.5 | 23.8 |
Insertion Loss (dB) S Grade | 4 | 7.3 | 10.5 | 13.7 | 16.9 | 21 | 24.2 |
Loss Uniformity(dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2 | 2.5 |
Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 | 0.35 | 0.4 |
Return Loss (dB) | 55 | ||||||
Directivity (dB) | 55 | ||||||
Wavelength Dependent | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 | 0.5 |
Loss(dB) |
|
|
|
|
|
|
|
Temperature Stability(-40- +85℃)(dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 | 0.5 |
Operating Temperature | -40- +85℃ | ||||||
Storage Temperature | -40- +85℃ | ||||||
Pack information
Split ratio | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 1x128 |
Mini-Module Dimension(mm) | 60*7*4 | 60*7*4 | 60*7*4 | 60*12*4 | 80*20*6 | 100*40*6 | N/A |
Dimension diagram

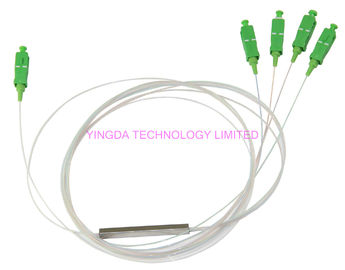

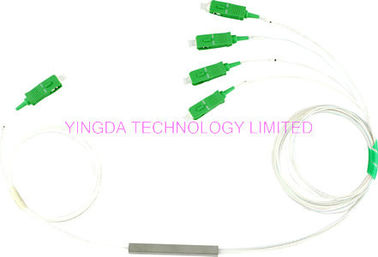

More pictures
plc splitter input and output length, connectors, cable material, cable color can made on customer request.
can stick customer logo, serial number,product name on the steel tube.
package by carton box with foam, stable and safe transporation protect.
if customer like blister box, we can use it, but it wil cost a little more, and shipping cost maybe higher.
And we use very high quality fiber optic connectors, each cable will have a figure ring to identify which is number 1, number 2, number 3... outputs, and input with" input " ring.
Order information
| Type | Package size | Port | Fiber Type | Input/output | Fiber length | connector |
| PLCS | BF=bare fiber FO=fan-out MD=module MB=metal box | 01X02 01x04 01x08 …… 02x16 02x32 02x64 | 0=G652D 1=G657A C=Customize | 1=bare fiber 2=900µm tight buffered 3=2.0mm Loose tube 4=3.0mm Loose tube | 1=1m 2=1.5m C=Customize | 0=no connector |
PLC workshop:
|
|
