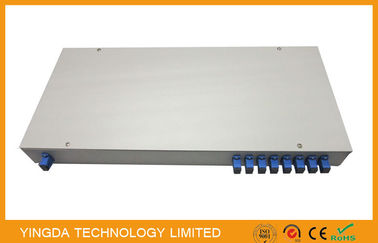

ODM Fiber Optic PLC Splitter In 19 inch Rack Patch Panel 1u Sc / Apc Terminated Rack Mount
  • name

ODM Fiber Optic PLC Splitter In 19 inch Rack Patch Panel 1u Sc / Apc Terminated Rack Mount

MOQ: 100 pcs
Price: 1.1USD-4.58USD
Standard Packaging: 1pc/ box, 5 pcs/carton box
Delivery Period: 5-8days after payment
Supply Capacity: 10,000 pcs per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO SGS ROHS
Model Number
FSM-108SC
Size:
1U Rack 19inch
Split Ratio:
1*8 Plc Splitter Module 2mm
Connector:
SC/UPC SC/APC, FC LC
Fiber Type:
Single Mode G657A1
Rack Dimension:
430x250x43mm
N.w.:
2.65kgs
Rack Color:
Black
Material:
Cold rolled steel sheet
Highlight:

fiber optic splitter

,

fbt coupler

Product Description

1 * 8 Fiber Optic PLC Splitter In 19inch Rack Patch Panel 1u SC/UPC Terminated Rack Mount





Advantage:

1. OEM ODM available

2. Sliding out drawer type available

3. Rack size can be design

4. White black color choic

5. Can print LOGO or figure for adapter output

6. 1x2 1x4 1x8 1x16 till 2 x 64 splitter can be installed.



Description

This 1 * 8 plc splitter rack mount patch panel (ODF optical distribution frame ) are

suitable for small capacity optical splitting in FTTH network, achieve optical splitting

and distribution function.This splitter rack module is mainly used in network cabinet

or comprehensive cabinet. 19'' standard structure, rack-mounted.





Features

  1. Splitting ratio can be customized,max. 2 x 64 PLC splitter
  2. Light weight, strong strength
  3. Good anti-shocking and dustproof
  4. Rack dimension can be customized
  5. Asy install
  6. Color: white / blacks
  7. Mamterial: Cold rolled steel sheet,with electrostatic spraying
  8. Sheet thickness: 1.0mm
  9. Connector: Suitable for FC,SC,ST,LC,E2000 adapters



Application

  • Fiber optical communication system
  • CATV system
  • LAN system



Specification



Item

Max PLC splitter ratio

Dimension(L*W*D)mm

Connector

1U 19" distribution frame

1&2X8

430x250x43

SC/LC/FC

1U 19" distribution frame

1&2X16

430x250x43

SC/LC/FC

1U 19" distribution frame

1&2X32

430x250x43

SC/LC/FC

2U 19" distribution frame

1&2X64

430x250x86

SC/LC/FC



kind note:

can print figures 1 2 3... on the adapter front panel as request.

ODM Fiber Optic PLC Splitter In 19 inch Rack Patch Panel 1u Sc / Apc Terminated Rack Mount 0

Ratings & Review

Overall Rating

5.0
Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings
5 stars
100%
4 stars
0%
3 stars
0%
2 stars
0%
1 stars
0%

All Reviews

A
Aincosa
Guyana Mar 20.2024
Helpful (2)
We have cooperated with the company for five years and are satisfied with both its products and services.
H
H*d
Morocco Sep 6.2022
Helpful (5)
This enclosure worked perfectly, well designed tray inside for spooling excess fiber. Solid post / clamp to secure jacket .Very happy with product , would buy again.
R
Rajeeb Lalchan
Turkey Jan 28.2022
Helpful (2)
The team helped me from start to finish with this special order. Always updated on the status. With so many bad issues in the past, i was worried when buying items from alibaba, but for this one it went 100% ok. The order arrived as discussed and all perfect. Thank you.
Tags:

fbt coupler,

fiber optic splitter,

plc splitter
