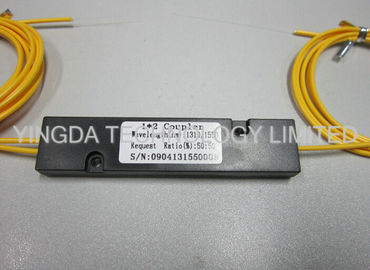

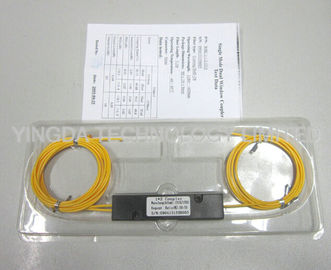

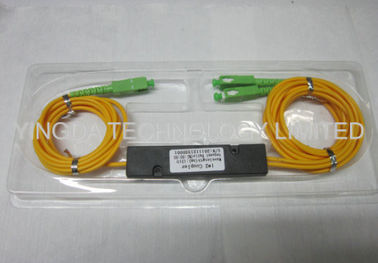

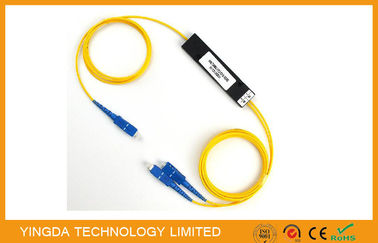

Dual Window Broadband FBT Coupler Cassette 2mm 1 x 2 SFF ABS ISO SGS ROHS

Dual Window Broadband FBT Coupler Cassette 2mm 1 x 2 SFF ABS ISO SGS ROHS

  • High Light

    fiber optic splitter

    ,

    fbt coupler

  • Coupling Ratio
    1-50 (%)
  • Pacakge
    Plastic Blister Box
  • Wavelength
    1310nm/1550nm Dual Window
  • Fiber Type
    SMF-28e Corning Fiber,G652D
  • Port Configuration
    1x2 or 2x2,1x3,1x4,1x6,etc
  • Cable Type
    0.9mm,2mm,3mm
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO SGS ROHS
  • Model Number
    dual window 1x2 cassette
  • Minimum Order Quantity
    50 pcs
  • Price
    negotiable
  • Packaging Details
    1pc/blister box,100pcs/box
  • Delivery Time
    5-8days after payment
  • Supply Ability
    10,000 pcs per month

Dual Window Broadband FBT Coupler Cassette 2mm 1 x 2 SFF ABS ISO SGS ROHS

Single Mode Dual Window Broadband Fbt Coupler Cassette 2mm 1 x 2 Sff Abs Type





Features

  1. Long-haul telecommunications
  2. CATV systems & Fiber sensors
  3. Local area network





Performance Specifications



Coupling Ratio(%)

1-50

Directivity (dB)

>55 dB

Operating Temperature

-20 ° C - 85 ° C

Storage Temperature

-40 ° C - 85 ° C

Fiber Type

Corning Single mode SMF-28 , DS Fiber, or Flexcore

Fiber Pigtail Length (m)

1meter or on customer request

Port Configuration

1x2 or 2x2

Package Dimension

Package A, B, C





Coupling Ratio/Insertion Loss Conversion Chart



Coupling Ratio

Insertion Loss

Premium

A Grade

40/60

4.7/2.7

5.0/2.9

30/70

6.0/1.9

6.4/2.1

20/80

7.9/1.2

8.4/1.4

10/90

11.3/0.5

12.7/0.8

5/95

15.2/0.4

18.5/0.5

1/99

22.5/0.3

23.0/0.4





Application

  • Low excess loss
  • Various coupling ratio
  • Compact size



Single mode Dual Window Broadband Couplers

Grade

P

A

Excess Loss (Typical )(dB)

0.10

0.15

Maximum Insertion loss (dB)

3.6

3.8

Uniformity (Max.) (dB)

0.7

1.0

Polarization Sensitivity (dB)

0.10

0.15

Operating Wavelength (nm)

1310 /1550 + 40



Order Information

Type

Grade

Wave-

length

Coupling

Ratio (dB)

Port

Package

Pigtail Style

Fiber Type

In/Out

Connector

S
W

P
A

35=1310/

1550nm
36=1310/

1585nm

50=50/50
30=30/70
10=10/90
05=5/95
01=1/99

0102=1x2
0202=2x2

A=Package A
B=Package B
C=Package C

0=Bare Fiber
1=900µm Jacket
2=2mm Cable

3=3mm Cable

0=SMF-28
D=DS Fiber

0=None
1=FC/APC
2=FC/PC
3=SC/APC
4=SC/PC
5=ST
6=LC

* Type:

S -- Single mode Standard Coupler
W -- Single mode Broadband Coupler
