| Brand Name: | YINGDA |
| Model Number: | FDB0208C |
| MOQ: | 100PCS |
| Price: | NEGOTIABLE |
| Delivery Time: | 5-8 working days |
| Payment Terms: | Western Union, T/T, L/C, MoneyGram |

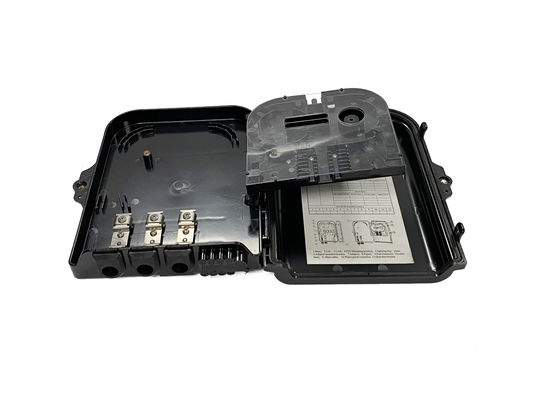

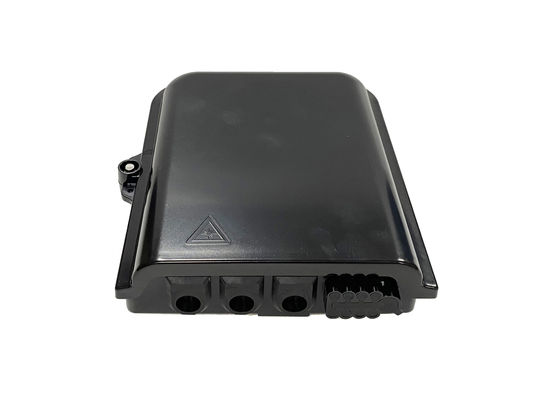

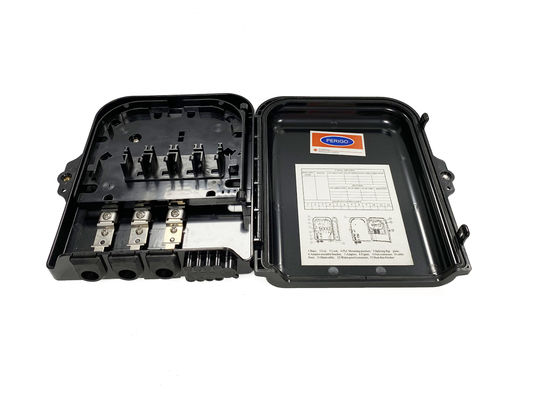

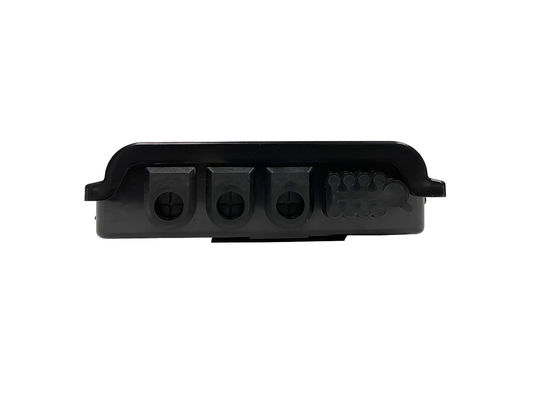

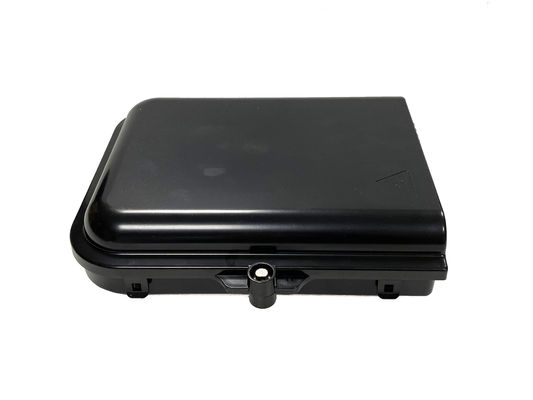

FDB0208C is designed for the FTTH application and widely used in Telecommunication networks, CATV networks, Data communications networks, Local Area networks, etc. It can maximum hold 8 ftth drops, fast connectors, sc adapters, or splitter 1*2 1*4 1*8 in mini module or LGX cassette type.
8 Port Distribution Box Features
8 Core Nap Specification
| Dimension | 195×240×66mm | Maximum capacity(single core) | 8cores |
| Weight | 602g | Sealing method | Mechanical |
| Numbers of entrances | 2 ports (for fiber optical cable)+8 ports (for drop cables) | Environmental temperature | -40°C~+65°C |
| Diameter of suitable cable | InΦ12mm, outΦ2*3mm | ||
| Protection class | IP65 | PLC splitter | 1X8, 1x4 mini module |
FTTH terminal box Installation instruction
1. Preparation all components and tools, and make them in clean and dry. Cut the appropriate length of cable about 1meter, and reserve about 4cm after strip. Install adapter on the adapter panel with screws.
2. There are two places to put the PLC steel tube on the back of adapter panel. Put the optical splitter into the groove and connect with adapters.
3. Relax the screw of the reinforced core and remove the fixing clamp. Thread the stripped cable into terminal box, and protect the fiber cable with the foam strip. Tighten the cable with the fixing clamp, the aramid yarn around the reinforced core screws, then screw up the fixing screw.
4. Coil the optical fiber on the bottom at the least radium more than 30mm, the fibers with the nylon ties tightly.
5. Install the fast connector on site with adapter and cables.
6. Seal the cable ports with rubber plugs, and fasten all screws tightly.
FDB Box Pack Information
Order information
| Model | Adapter | PLC splitter |
| FDB0208C |
SCA=SC/UPC SCU=SC/UPC LCA=LC/APC LCU=LC/UPC NU=NULL |
102=1X2 104=1X4 108=1X8 NU=NULL |
video
video
|
