PC Material Pole / Wall Mount Fiber Optic 1x 64 PLC Splitter Box IP65 GPDB-S64D/72D

PC Material Pole / Wall Mount Fiber Optic 1x 64 PLC Splitter Box IP65 GPDB-S64D/72D

  • High Light

    fiber optic closure

    ,

    splitter distribution box

  • Capacity
    72fibers
  • Cable Ports
    12 Pcs
  • Dimension
    350*340*120mm
  • Material
    High Strength Engineer Plastic PC
  • Color
    White
  • Application
    FTTH FTTX ODN,PON Network
  • Adapter
    72 Pcs SC
  • Application
    Outdoor Wall Mount, Pole Mount
  • Splitter Type
    1pc 1:64 Or 2pcs 1:32 Splitter Module ABS Plastic
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO SGS CE ROHS
  • Model Number
    GPDB-S372D
  • Minimum Order Quantity
    100PCS
  • Price
    NEGOTIABLE
  • Packaging Details
    1 pc per box, 6 pcs per carton shipping box
  • Delivery Time
    5-8 working days
  • Payment Terms
    Western Union, T/T, L/C

PC Material Pole / Wall Mount Fiber Optic 1x 64 PLC Splitter Box IP65 GPDB-S64D/72D

PC Material Pole / Wall Mount Fiber Optic Splitter Box 1x64 PLC Splitter





Description:

1x72 PLC splitter distribution box, wall mount splitter closure is plastic cable distribution

box,with insert-style splitters,suitable for outdoor,corridor or weak current silo, can be

used for local or drop cable end and sub-distribution; also it can be used for protective

connection of cable and layout pigtails, and fiber optic terminations of optic access network,

with the advantage of light, small, convenience of transportation and installation,and capacity

of 16core and 32cores. Max capacity can reach 1 or 2pcs 1:64 / 1:32 cassette splitter.





Features:

  1. The box is made of imported flame retardant material,with aging resistant and
  2. ultra violet resistant characters;
  3. Sealing with pressed strip,waterproof and dust-proof with IP65;
  4. Special screw and key for its door lock,can be installed on wall or mounted on pole;
  5. Temperature working:-40~+80℃, storage:-40~+80℃.
  6. Spare pigtails and drop cable can be save in the storage part,convenience for maintenance;
  7. Special lock device for outlet of drop cable,bilayer structure,bottom for splicing and upper layer for splitting and distribution. The installing plate can be turn over for convenience of installation and operation;
  8. With 2/4standard slot position for the installation of insert-style splitters of 1:8 or 1:32;
  9. Maximum 2pcs of splice tray for satisfying kinds of connection.



Specification



Model

Cable ports

Max splitting

Dimension/mm

GPDB-S64D/72D

12

1:32;2X1:32;2X1:16

350*340*120





Pack information



Model

Carnton quantity

Gross weight

carton size

GPDB-S64D/72D

6pcs

21.8kgs

430*380*460mm





More product show:

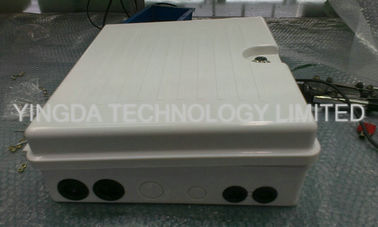

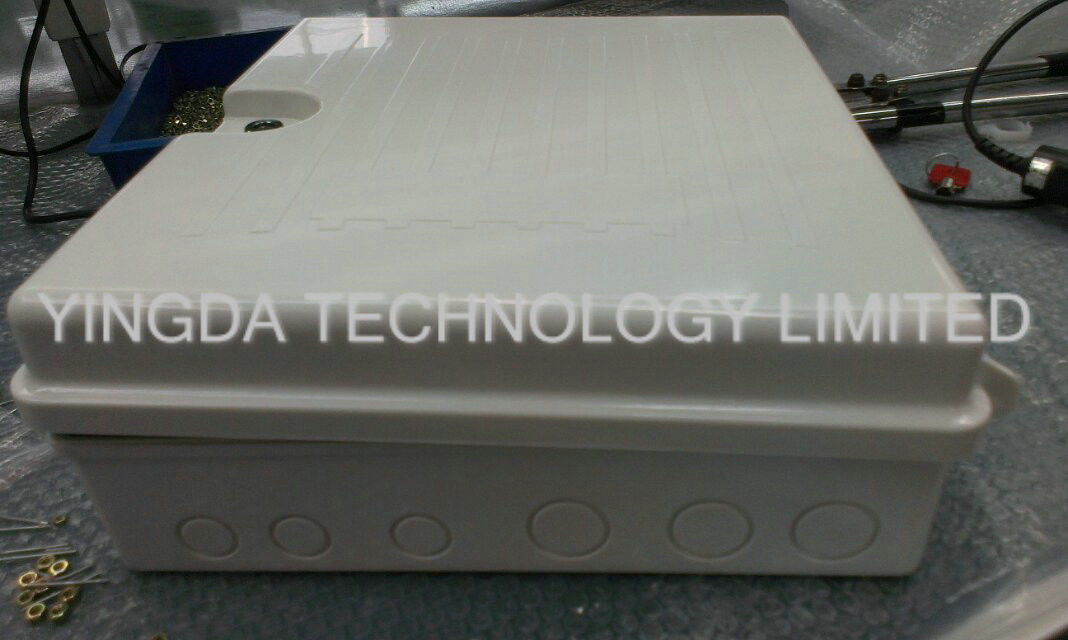

PC Material Pole / Wall Mount Fiber Optic 1x 64 PLC Splitter Box IP65 GPDB-S64D/72D 0

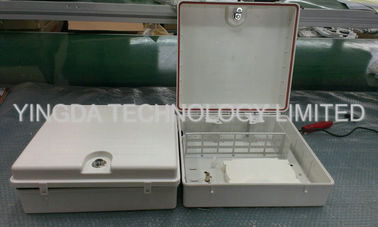

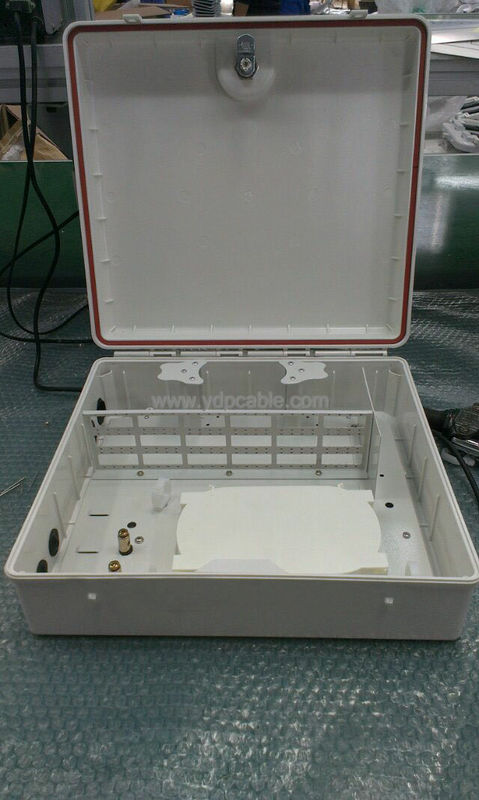

PC Material Pole / Wall Mount Fiber Optic 1x 64 PLC Splitter Box IP65 GPDB-S64D/72D 1
