Dust - proof 16 Port Optical Splitter Distribution Box Lgx Module Insert - Style
  • name
  • name
  • name
  • name

Dust - proof 16 Port Optical Splitter Distribution Box Lgx Module Insert - Style

MOQ: 100PCS
Price: 1.0USD-18.6USD
Standard Packaging: 1 pc per box, 6 pcs per carton shipping box
Delivery Period: 5-8 working days
Payment Method: Western Union, T/T, L/C
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO SGS CE ROHS
Model Number
GPDB-S16D
Capacity:
17 Fibers
Cable Ports:
12 Pcs
Dimension:
350*340*120mm
Material:
High Strength Engineer Plastic PC
Color:
White
Application:
FTTH FTTX ODN,PON Network
Adapter:
17 Pcs SC
Application:
Outdoor Wall Mount, Pole Mount
Splitter Type:
LGX Splitter Module 1slot Cassette
Max Split Ratio:
1slot 1x16 Splitter Cassette
Highlight:

fiber optic closure

,

splitter distribution box

Product Description

Loaded 16 Ports Waterproof Wall Mount Optical Splitter Distribution Box LGX Module

Model: GPDB-S16D





GP series plastic distribution box,with insert-style splitters,suitable for outdoor, corridor or

weak current silo,can be used for local or drop cable end and sub-distribution; also it can be

used for protective connection of cable and layout pigtails,and fiber optic terminations of optic

access network,with the advantage of light,small,convenience of transportation and installation,

and capacity of 16core and 32cores.





Features:

  • The box is made of imported flame retardant material,with aging resistant and ultra violet
  • resistant characters;
  • Sealing with pressed strip,waterproof and dust-proof with IP65;
  • Special screw and key for its door lock,can be installed on wall or mounted on pole;
  • Temperature working:-40~+80℃, storage:-40~+80℃.
  • Spare pigtails and drop cable can be save in the storage part,convenience for maintenance;
  • Special lock device for outlet of drop cable,bilayer structure,bottom for splicing and upper layer
  • for splitting and distribution. The installing plate can be turn over for convenience of installation and operation;
  • With 2/4standard slot position for the installation of insert-style splitters of 1:8 or 1:32;
  • Maximum 1pcs of splice tray for satisfying kinds of connection.





Specification



Model

GPDB-S16D

Max splitting

1:16; 2 x 1:8

Cable ports

12 pcs

Dimension/mm

350*340*120

LGX module

1 pcs

Net weight

3.41 kg

Carton size

430*380*460 mm

Gross weight

21.90 kg

Carton quantity

6 pcs



Accessory:



  1. Adapter
  2. Pigtail
  3. Plc splitter
  4. Connector
  5. Sleeve
  6. Nylon tie
  7. Wall mount screws
  8. Cable fix circle



More product show:

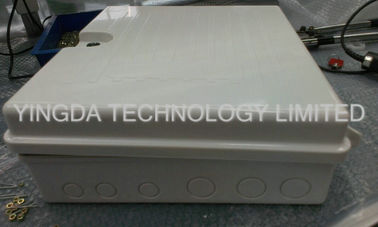

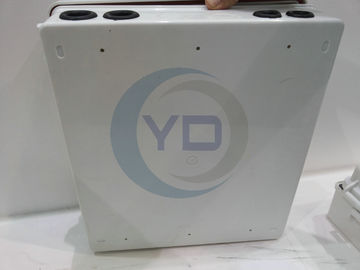

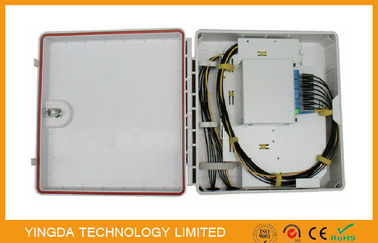

Dust - proof 16 Port Optical Splitter Distribution Box Lgx Module Insert - Style 0
