Dual Layer Fiber Optic Splitter Box For PLC Splitter 1x16 LGX Modular / Cable Distribution Box

Dual Layer Fiber Optic Splitter Box For PLC Splitter 1x16 LGX Modular / Cable Distribution Box

  • High Light

    optical distribution box

    ,

    splitter distribution box

  • Capacity
    16 Fibers
  • Cable Inport
    2pcs In, 16pcs Out For Pigtail Or Drop Cable
  • Dimension
    260*356*90mm
  • Material
    High Strength Engineer Plastic PC
  • Color
    White
  • Application
    FTTH FTTX ODN,PON Network
  • Adapter
    17 Pcs SC
  • Special 1
    Cable Go Through The Box Not Cut
  • Special 2
    Use For Fast Connector And FTTH Drop Cable
  • Application
    Outdoor Wall Mount, Pole Mount
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO SGS CE ROHS
  • Model Number
    FDB0216D
  • Minimum Order Quantity
    100PCS
  • Price
    NEGOTIABLE
  • Packaging Details
    1 pc per box, 10 pcs per carton shipping box
  • Delivery Time
    5-8 working days
  • Payment Terms
    Western Union, T/T, L/C

Dual Layer Fiber Optic Splitter Box For PLC Splitter 1x16 LGX Modular / Cable Distribution Box

Wall Mount Fiber Optic Splitter Box For PLC Splitter 1x16 LGX Modular

Model: FDB0216D

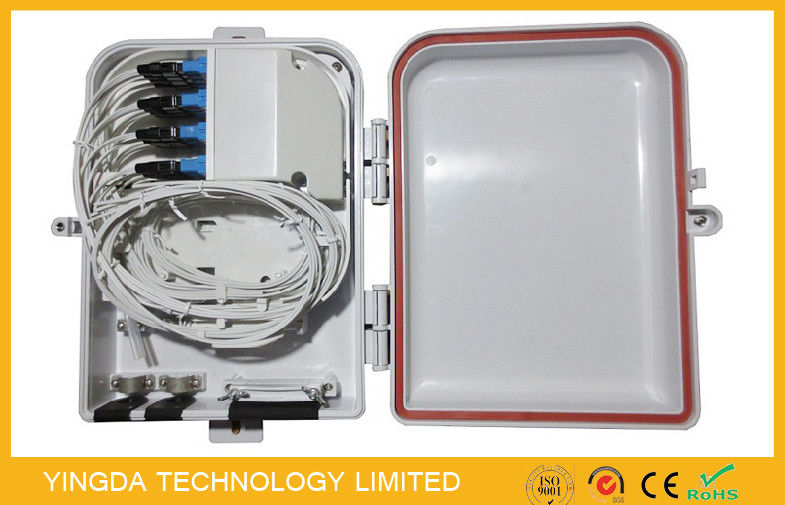

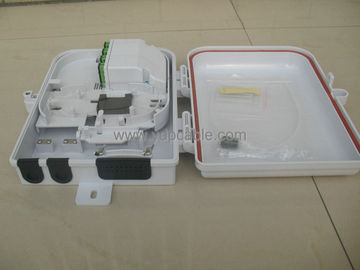

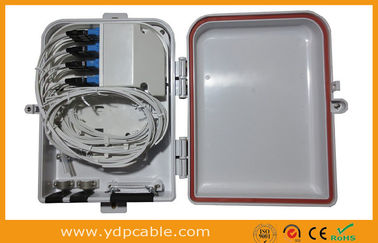

This Opticall planar lightwave circuit Splitter distribution box is widely used in outdoor or indoor,

which is especially design for PLC splitter insert type LGX module, ma hold 1x8 PLC splitter inside,

the upper layer install PLC splitter, the lower layer use for distribution cable. 2cable inlet, 24port

outlet for drop cable with rubber sealing.





Selling point:

  1. Insert type PLC splitter modular, easy and fast installation
  2. Indoor and outdoor cable go throught the cable without cut
  3. FTTH drop cable specially use with sealing rubber
  4. Outdoor application, wall or pole mount
  5. Satisfy IP65
  6. Max can use 1x16 Planar lightwave circuit splitter modue
  7. SC/UPC, SC/APC adapter, connectors, or quick assembly connector available
  8. Dual layer design, upper for split light, lower layer for distribution cable
  9. With key to open and close, safe and convenient
  10. The factory pre-assembly terminated with pigtail, adapter,make sure high quality and low cost but rapid deployment.
  11. 100% test each items in house



Working environment



Item

Working temperature

Relative humidity

Atmospheric pressure

Indoor

-10℃~+40℃

≤85%(+30℃)

70kPa~106kPa





Specifications



Model

Dimension

(W*D*Hmm)

Cable

Ports

Carton size

/cm

Carton

qty/pc

G.W.

/kg

FDB-0216D

260*356*90

2in,16out

56*36*62

10

17.5





Feature

1. Industry Standard User Interface, be made of high impact plastic.

2. Can accommodate 1x8 PLC splitter with SC Connector

3. Anti-UV, Ultra violet resistant and rainfall resistant.

4. Up to 16 FTTH drops.

5. Wall mount, pole mount

6. 2 inlet ports, 16 outlet ports.

7. No connector inlet ports, 17 pcs SC Connector outlet ports.

8. Contain 8 pcs SC Adapter.

9. Material - PC





More product show:
