1x8 PLC Splitter Box Wall Mount Drop Cable Box, 16 Ports With Glands SC Adapter Panel IP65

  • 1x8 PLC Splitter Box Wall Mount Drop Cable Box, 16 Ports With Glands SC Adapter Panel IP65
  • 1x8 PLC Splitter Box Wall Mount Drop Cable Box, 16 Ports With Glands SC Adapter Panel IP65
  • 1x8 PLC Splitter Box Wall Mount Drop Cable Box, 16 Ports With Glands SC Adapter Panel IP65
  • 1x8 PLC Splitter Box Wall Mount Drop Cable Box, 16 Ports With Glands SC Adapter Panel IP65
Place of Origin china
Brand Name YINGDA
Certification ISO
Model Number FDB0216A
Minimum Order Quantity 100PCS
Price NEGOTIABLE
Packaging Details 1 pc per box, 10 pcs per carton shipping box
Delivery Time 5-8 working days
Payment Terms T/T, Western Union, MoneyGram

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Adapter 8pcs SC Simplex Coupler Capacity 16 Fibers
Output 16 FTTH Drop Cable Figure-8 Or Self-supporting Type. Cable Inport 2 PCS
PLC Splitter 1x8 Micro Splitter Dimension 260*320*90mm
Material High Strength Engineer Plastic PC Color White
Application FTTH FTTX ODN PON Network
High Light

optical distribution box

,

splitter distribution box
Leave a Message
Product Description

1x8 PLC Splitter Box Wall Mount Drop Cable Box, 16 Ports With Glands SC Adapter Panel IP65



FTTH Fiber Customer Terminal Box is used in the end termination of residential buildings and villas, to fix and splice with pigtails; Hinge and convenient press-pull button lock design; Wall mounted with mechanical protection function



More pictures



1x8 PLC Splitter Box Wall Mount Drop Cable Box, 16 Ports With Glands SC Adapter Panel IP65 01x8 PLC Splitter Box Wall Mount Drop Cable Box, 16 Ports With Glands SC Adapter Panel IP65 1

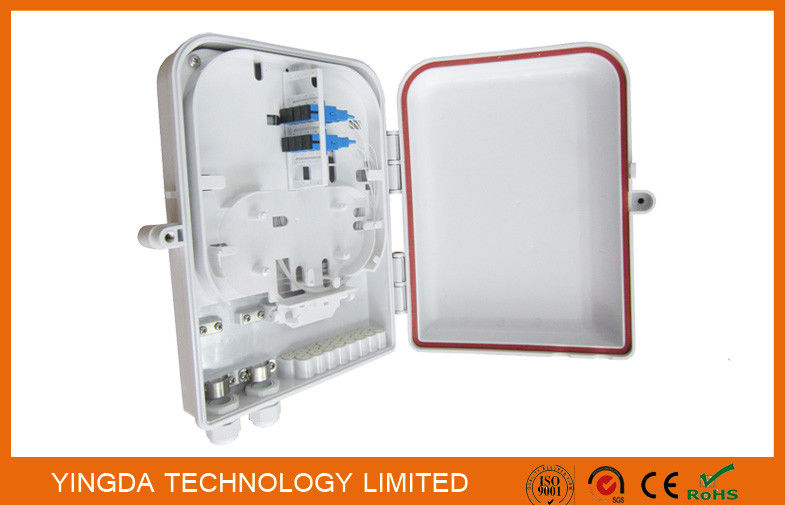

there is rubber seal all around the box in red color, which prevents the box from water, humidity and harsh environment outside.

it has double layer tray, upper layer for adapter panel and fiber routing or storage, down layer is for distribution, splitting or heatsrhink protection storage.

   1x8 PLC Splitter Box Wall Mount Drop Cable Box, 16 Ports With Glands SC Adapter Panel IP65 2   1x8 PLC Splitter Box Wall Mount Drop Cable Box, 16 Ports With Glands SC Adapter Panel IP65 3

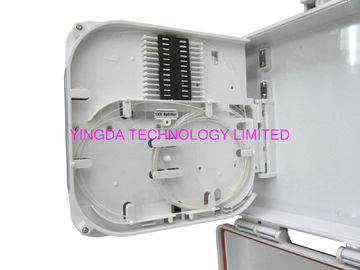

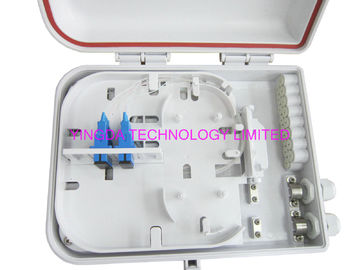

The adapter panel is plastic, and fix by screws, it maximum can install 16pcs SC adapters simplex, or LC duplex.

There is a speical fixation place for PLC splitter steel tube, maximum hold 1x16 plc splitters and there is 24pcs heat shrink tube protection tray.

the whole tray can be 90° angel rorate to ease on-site construction, during transporation,tighten the screws with box. Then it will be in place, not moving and break fiber, humanity design.



    1x8 PLC Splitter Box Wall Mount Drop Cable Box, 16 Ports With Glands SC Adapter Panel IP65 4    1x8 PLC Splitter Box Wall Mount Drop Cable Box, 16 Ports With Glands SC Adapter Panel IP65 5



Box is white color, plastic key to pen and press-pull bottom with blot, plastic material.

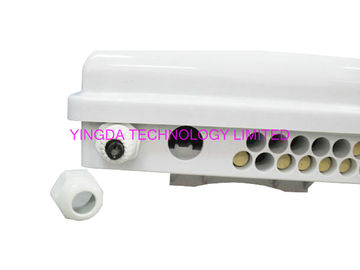

2pcs cable ports for entry, and 16pcs cable ports for round indoor cable or ftth drop cable.



Specification

Model FDB0216A
Dimension 260*320*90Mm
Cable ports 2in, 16out
Cable diameter In :7-10mm, out: 2*3.0mm or indoor cable
PLC split ratio 1x2, 1x4, 1x8,1x16 micro splitter
Net weight 1.4kg
Material PC / ABS
Color White



Package information

Model FDB0216A
Carton quantity 10pcs
Carton size 56*36*62cm
Carton weight 15.6kg



Features

  • Industry standard user interface,be made of high impact plastic.
  • Canuse1x4 & 1x8 & 1x16 micro module PLC splitter.
  • Anti-UV,Ultra violet resistant and rainfall resistant.
  • Up to 16 FTTH drop cables.
  • Wall mount or pole mount
  • 2inlet ports,16outlet ports.
  • Small size, light weight, pleasing in appearance
  • Suitable for SC, FC, E2000, 4 fibers
  • Indoor or outdoor use

Application

  • Widely used in FTTH access network.
  • Telecommunication networks.
  • CATV Networks.
  • Data communications networks.
  • Local Area Networks.
