8 Port Outdoor Braodband CATV / LAN Fiber Optic Splitter Box Pole Mounted

8 Port Outdoor Braodband CATV / LAN Fiber Optic Splitter Box Pole Mounted

  • High Light

    optical distribution box

    ,

    splitter distribution box

  • Capacity
    8 Fibers Bunchy
  • Cable Inport
    3 PCS
  • Dimension
    205*215*55 Mm L*W*D
  • Material
    High Strength Engineer Plastic PC
  • Color
    White
  • Application
    FTTH FTTX ODN,PON Network
  • Adapter
    8PCS SC/UPC SC/APC Adapter
  • Output Diameter
    8 FTTH Drop Cable Figure-8 Or Self-supporting Type.
  • PLC Splitter
    1x4 & 1x8 PLC Splitter.mini Module 0.9mm
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO SGS CE ROHS
  • Model Number
    FDB0208A
  • Minimum Order Quantity
    100PCS
  • Price
    NEGOTIABLE
  • Packaging Details
    1 pc per box, 20 pcs per carton shipping box
  • Delivery Time
    5-8 working days
  • Payment Terms
    Western Union, T/T, L/C

8 Port Outdoor Braodband CATV / LAN Fiber Optic Splitter Box Pole Mounted

8 Port Outdoor Braodband Splittr Box, Plastic Fiber Optic Splitter Box







Description



FDB0208 is designed to connect feeder / distribution cable to subscriber's drop cable using

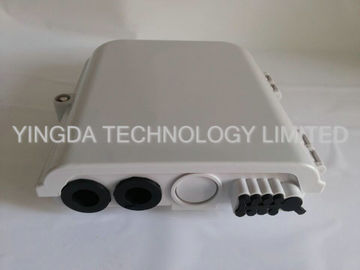

PLC splitter in FTTx networks. It has 2 input ports and 8 output ports on the bottom and it is

easy to install on the wall or pole.

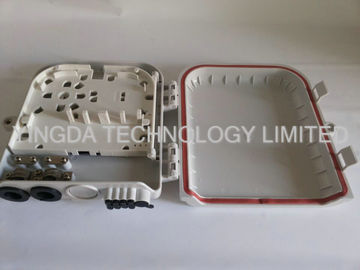

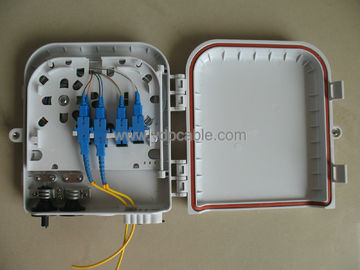

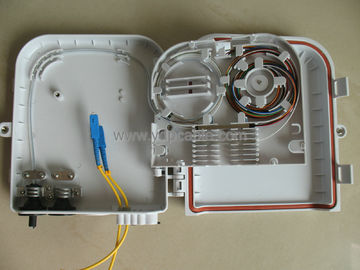

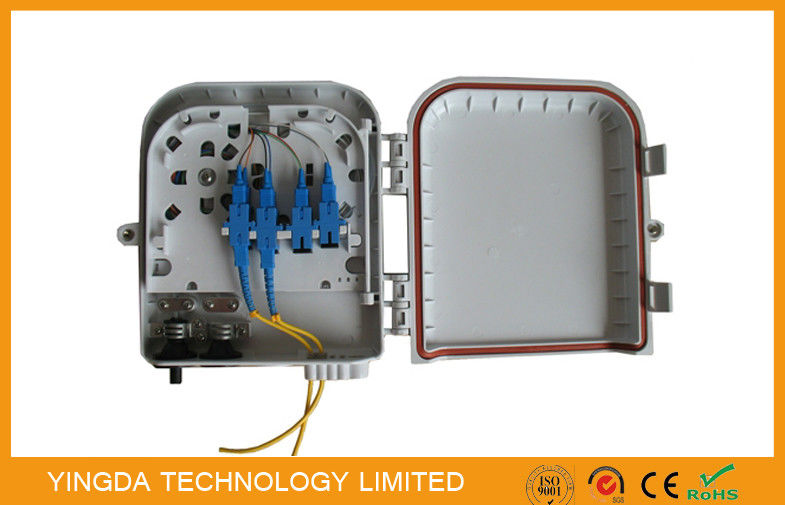

The rear tray is for splicing a fiber of feeder cable with PLC splitter and the front tray is for

connecting subscriber's drop cable through adaptor plate on the tray.





Applications

  1. Widely used in FTTH access network.
  2. Telecommunication networks.
  3. CATV / LAN Networks.
  4. Data communications networks.



Specifications



Model

Dimension

(W*D*Hmm)

Cable

 Ports

Carton size

/cm

Carton

qty/pc

G.W.

/kg

FDB0208

205*215*55

2in,8out

53*50*39

20

17.1





Features

  1. Industry standard user interface,be made of high impact plastic.
  2. Can accommodate 1x4 & 1x8 PLC splitter.
  3. Anti-UV, Ultra violet resistant and rainfall resistant.
  4. Up to 8 FTTH drop cable figure-8 or self-supporting type.
  5. Wall and pole mountable.
  6. 2inlet ports,8outlet ports.
  7. Pole / wall mounting



Working environment



Item

Working temperature

Relative humidity

Atmospheric pressure

Indoor

-10℃~+40℃



≤85%(+30℃)

70kPa~106kPa

Outdoor

-40℃~+60℃

≤95%(+40℃)
