Indoor Outdoor 8 Ports FTTH Fiber Termination Box Screw Lock For LGX Module 1x8 Splitter

Name: Indoor Outdoor 8 Ports FTTH Fiber Termination Box Screw Lock For LGX Module 1x8 Splitter
Brand: YINGDA TECHNOLOGY LIMITED
SKU: FDB0208C
Price: 9.00 USD
Availability: InStock

Brand Name:	YINGDA
Model Number:	FDB0208C
MOQ:	100PCS
Price:	1.0USD-18.6USD
Delivery Time:	5-7 working days
Payment Terms:	Western Union, T/T, L/C, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

ISO SGS CE ROHS

Capacity:

8 Cores, FTTH Drop Cable 8pcs

Cable Ports:

2in,8out

Dimension:

195mm(W)×240mm(H) ×66mm(D)

Material:

ABS+PC

Color:

White Or Black

Adapter:

8 Pcs SC/UPC Or SC/APC

Installation Method:

Outdoor Wall Mount, Pole Mount

Splitter:

1x4, 1x8 PLC Splitter

Packaging Details:

1 pc / box, 20 pcs/ carton box

Supply Ability:

20000 pcs/per month

Highlight:

8 Ports FTTH Fiber Termination box

Screw Lock FTTH Fiber Termination box

1x8 Splitter Fiber Termination box

Product Description

8 Ports FTTH Fiber Termination box with Screw Lock For LGX Module Splitter 1x8 for indoor outdoor

Model: FDB0208C

FDB0208C is designed for the FTTH application and widely used in Telecommunication

networks, CATV networks, Data communications networks, Local Area networks.

Features

Compact design, diameter 195×240×66mm
Hinged structure
Perfect sealing performance
Material: high impact plastic
High impact resistant and UV resistant thermoplastic for long life
Easy to install
Can be re-opened and reusable
Wall-mounting and pole-mounting
The seal type is screw+buckle

Specification

Dimension	195×240×66mm	Maximum capacity(single core)	8cores
Weight	602g	Sealing method	Mechanical
Numbers of entrances	2 ports (for fiber optical cable)+8 ports (for drop cables)	Environmental temperature	-40°C~+65°C
Diameter of suitable cable	InΦ12mm, outΦ2*3mm	Environmental temperature	-40°C~+65°C
Protection class	IP65	PLC splitter	1X8, 1x4 mini module

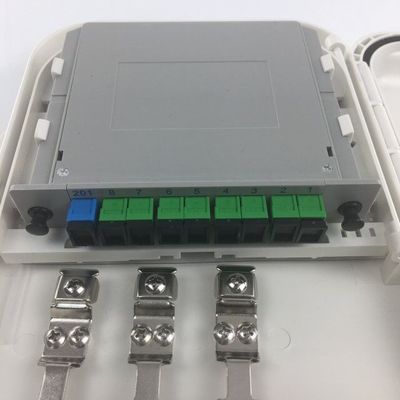

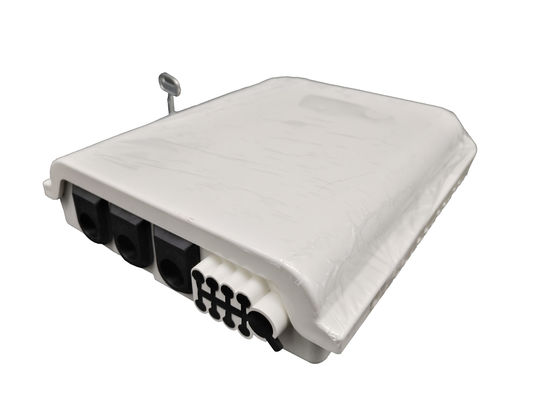

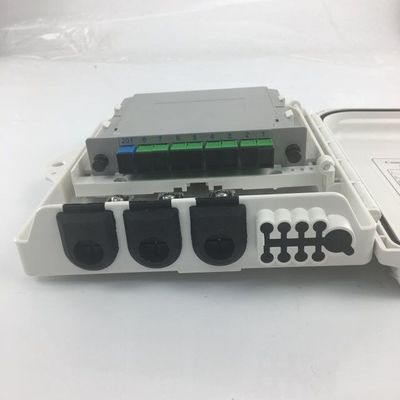

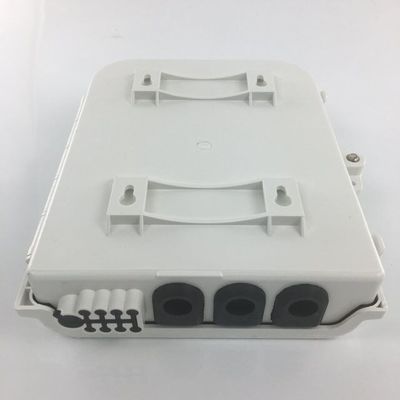

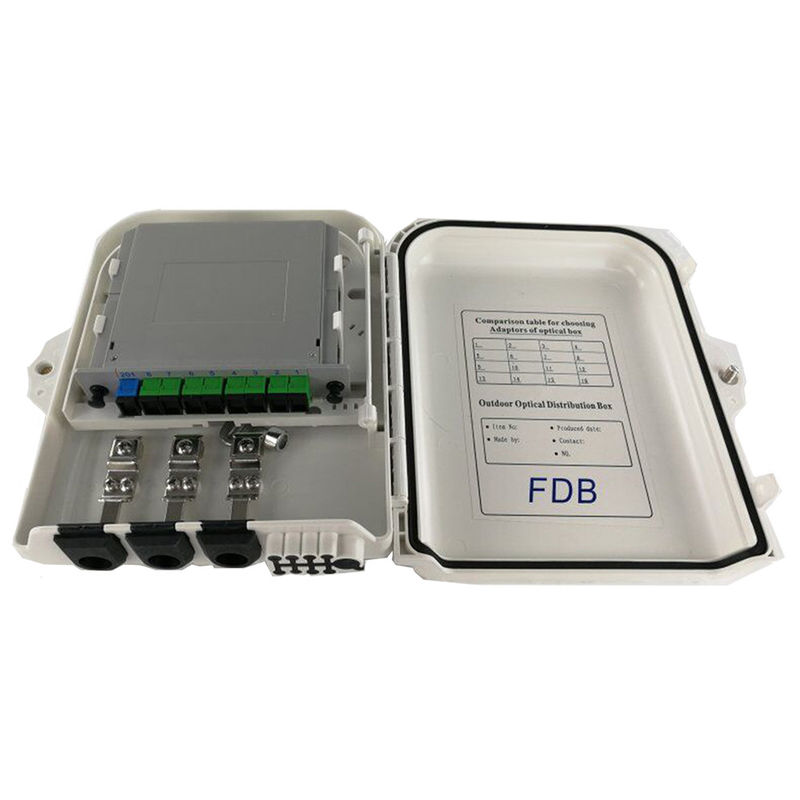

Product view

Sealing method: screw+buckle

Accessories

Order information

Model

Adapter

PLC splitter

FDB0208C

SCA=SC/UPC

SCU=SC/UPC

LCA=LC/APC

LCU=LC/UPC

NU=NULL

102=1X2

104=1X4

108=1X8

NU=NULL

Installtion:

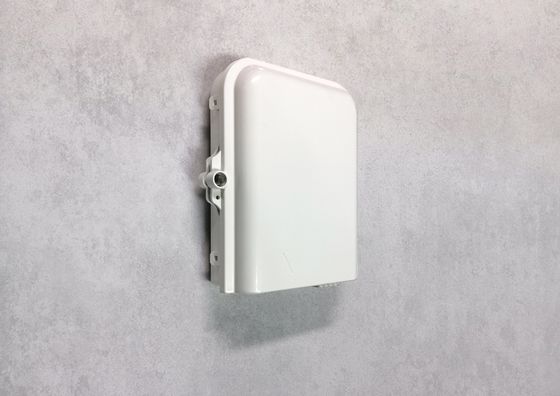

Wall mounted:

Indoor Outdoor 8 Ports FTTH Fiber Termination Box Screw Lock For LGX Module 1x8 Splitter 5

Pole mounted

Indoor Outdoor 8 Ports FTTH Fiber Termination Box Screw Lock For LGX Module 1x8 Splitter 6
