Waterproof 16 Port Pole Mount FDB0216HF Optical Splitter Box

16 Port Pole Mount 1:8 1:16 Optical Fiber Terminal Splitter Distribution Box Allen Screws SC Connectors Black PC+ABS

FDB0216H fiber access termination box is able to hold up to 16 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

Specification

Product Details:

 max.4pcs white optical fiber fusion tray with lid,standard is 2pcs, ach tray capacity: 6core 1layer, dual layer 12core

the tray is clip fix on the back brackets, you can take it off for fast and easy operation on site.

the bottom bracket have slots for steel tube and splitter input side connectors, which ensure stability during long time transportation, not fiber broken or mess.  The adapter plate is plastic, and can hold max. 16pcs SC adapters or LC duplex adapters.

There are holes and projections on the adapter panel to fix the adapter, which can be fixed without screws. Only the protrusion should be aligned with the screw hole on the adapter and the metal spring piece of the adapter itself can be fixed.

The plate also can insert into the reserved hole to make it at place,no need screws to fix.

There is cable clamps to fix on the cable on the stainless brackets,total 4pcs cable entry: 1uncut port (mid span) and 2 cable glands, 16pcs drop cable exit.

Total box is quite often use outdoor wall mount or pole mount, anti UV, there is laser mark sticker inside of the cover. The box is open and close by a screw rods in front and 2 Allen screws (brackets) at both sides. Which make fast and safe construction for FTTH.

Features

• The box casing is made of high quality engineering industrial plastic PC+ABS alloy material, strong and tough;
• Outdoor application and good UV resistant, IP65 waterproof.
• Bottom with splitter tube fix slot, and input connector slot, humanity design
• Maximum12F splice capacity, stainless anti-rust bolts and nuts.
• The adapter bracket has two fulcrums, which can be directly inserted into the reserved hole at the bottom, and can be taken out by hand, which is convenient for fiber reeling, construction, maintenance and expansion.
• Fiber bend radius control more than 35mm.
• 180 degree access with 2pcs of buckled lock structure (Allen screws).

Standard accessory

Splice tray 2pcs, 4pcs wall mount expansion screws, 16pcs fiber protective sleeve, 4pcs cable clamp,nylon ties, adapter plate for 16 x adapters, cable protection tube, key, PG 13.5 cable glands for distribution ports, Pole mounted kits (optional).

Related products:

                       FTTH drop cable                                                       SC field fast connector                                   SC optical coupler

                          FTTH drop cable                                               Fiber optic pigtails                                        Fiber optic PLC splitter

Application

• Wall-mounted, Pole-mounted Installation
• Suitable for ftth pre-connectorized drop cable with SC/LC connectors

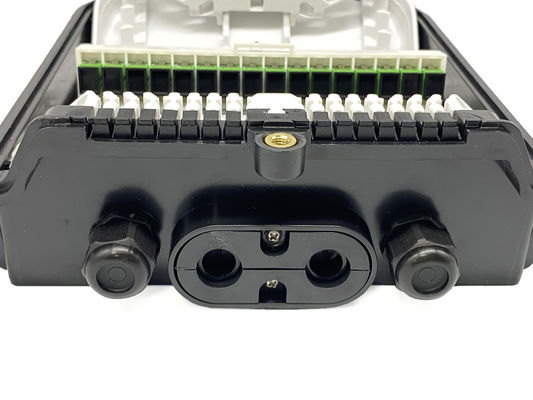

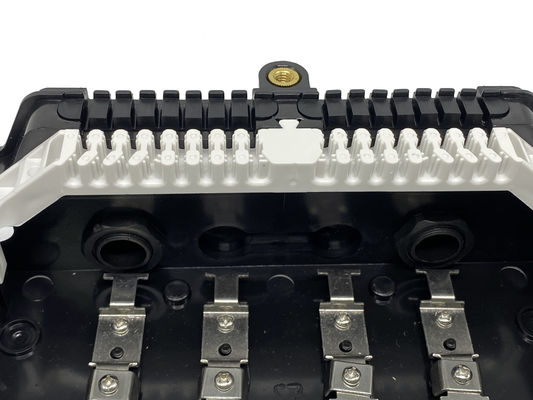

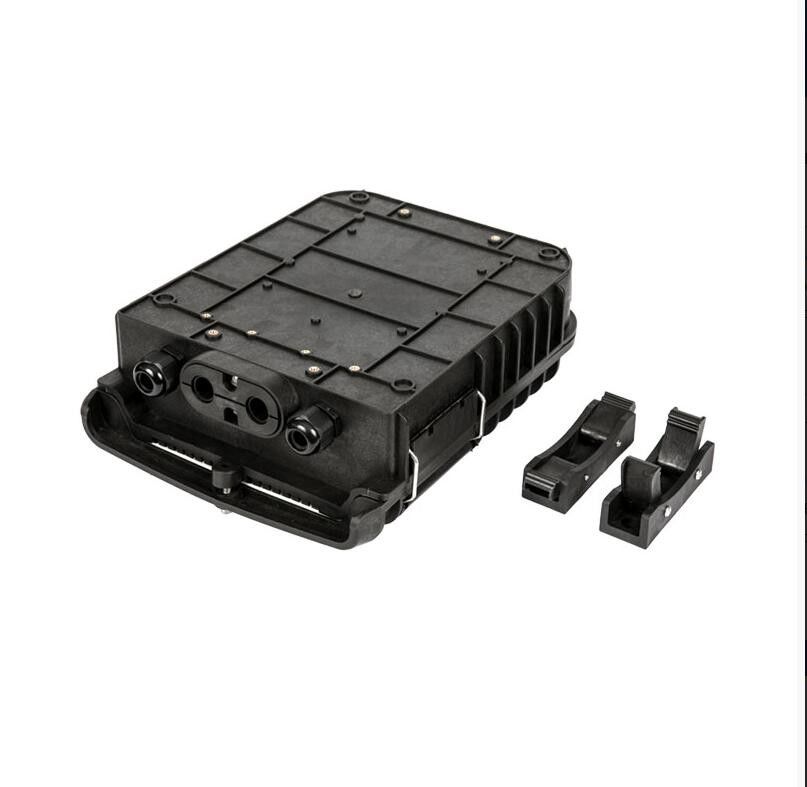

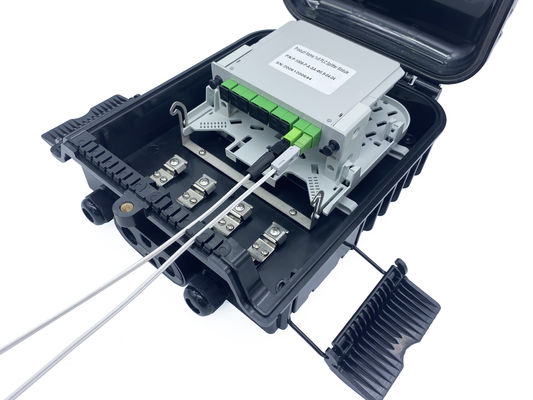

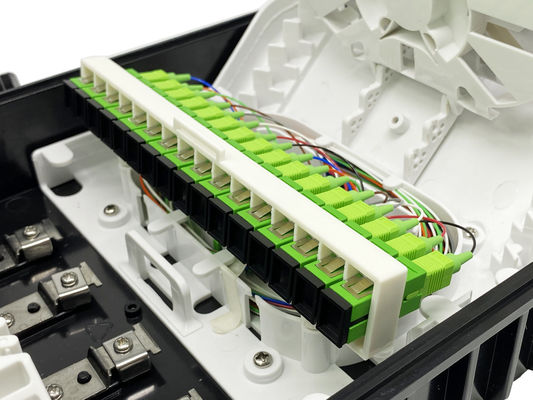

Actual pictures
