Outdoor 5 PORTS Fiber Optic Cable Distribution Box Black 24CORES SC Adapter Splitter 1x16 1x8

Quick details:

1. 5pcs drop cable exit, 2cable glands or go through the box
2. can use splitter mini tube type or lgx module, normally 1x8 or 1x16 splitter
3. buckle open and lock, fast and easy to operate
4. large productivity, fast lead time 5-7 working days
5. Support OEM and ODM

YINGDA produce all kinds of FTTX series desktop box, FTTX series outdoor box and regular terminal box. FDB0205 terminal box can be wall mount or pole mount. And it maximum can hold 2pcs 1*8 plc splitter, and 24pcs SC adapters, also has 5pcs FTTH cable outputs can be adjustable according to the cable size, and 2 cable inputs for glands cable go through the box.

Features

• The high strength plastic, anti-ultraviolet radiation and ultraviolet radiation resistant, resistant to rain
• For indoor and outdoor overhead and hang wall use
• Box of body use "lock type" structure, box of body switching of simple, convenient, with a lock function, safe use
• Melt receive flip type design simple to use, melting with complete separation of fine points fibre layout more reasonable
• Double layer tray, upper layer for fiber optic adapters, lower layer for splitter routing.
• Maximum hold 24pcs SC simplex adapters, or LC duplex adapters.
• Can hold 1x2,1x4,1x8,1x16 PLC splitter micro module steel tube
• 2 inputs ,5 outputs for  cable
• it can also be spliced with home cable to realize the straight-through connection of the optical cable.

Application

• FTTH access netowrk
• Telecommunication
• WAN, LAN network
• ODN, PON netowrk

Specifications

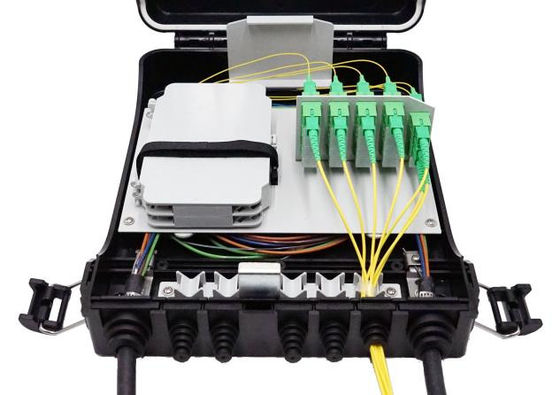

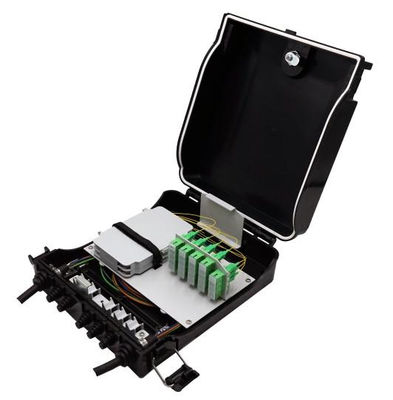

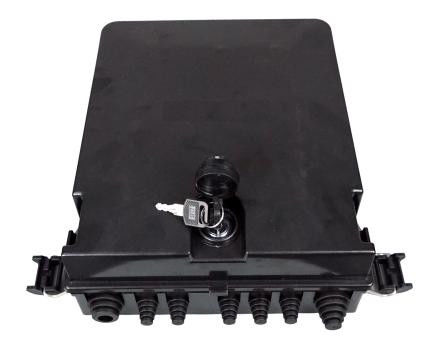

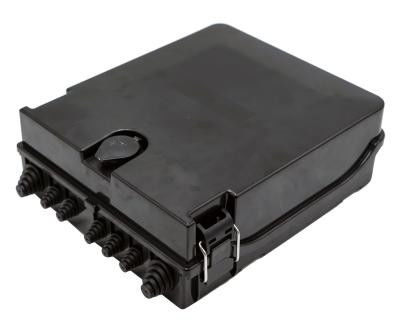

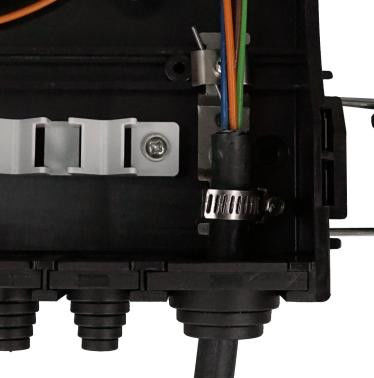

Product pictures

CABLE PORTS: 2 cable entry,5pcs cable exit

Splice tray:4pcs

Adapter:24pcs

Packaging Pictures
