1 x 2 Pon Fiber Optic Plc Splitter Coupler, Fused Fbt Coupler 1310nm 1550nm Dual Window 50% / 50%

Basic Information
Place of Origin: SHENZHEN,CHINA
Brand Name: YINGDA
Certification: ISO SGS ROHS
Model Number: dual window 1x2
Minimum Order Quantity: 50 pcs
Price: negotiable
Packaging Details: 1pc/blister box,100pcs/box
Delivery Time: 5-8days after payment
Supply Ability: 10,000 pcs per month
Contact Now
Detail Information
Coupling Ratio: 1-50 (%) Input Color: White
Output Color: Blue And Red Pacakge: Plastic Blister Box
Wavelength: 1310nm/1550nm Fiber Type: SMF-28e Corning Fiber
Port Configuration : 1x2 or 2x2 Cable Type: 900um Single Mode

Product Description

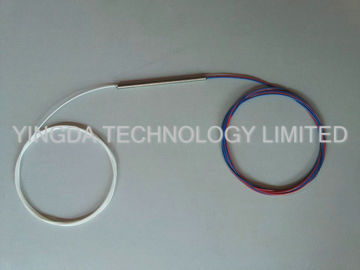

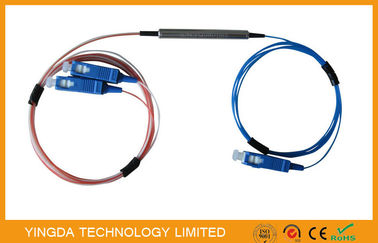

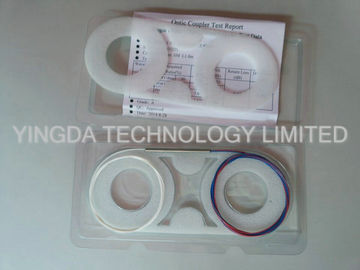

1 x 2 Pon Fiber Optic Plc Splitter Coupler, Fused Fbt Coupler 1310nm 1550nm

Dual Window 50% / 50%





Features

  1. Long-haul telecommunications
  2. CATV systems & Fiber sensors
  3. Local area network



Application

  • Low excess loss
  • Various coupling ratio
  • Compact size



Performance Specifications



Coupling Ratio(%)

1-50

Directivity (dB)

>55 dB

Operating Temperature

-20 ° C - 85 ° C

Storage Temperature

-40 ° C - 85 ° C

Fiber Type

Corning Single mode SMF-28 , DS Fiber, or Flexcore

Fiber Pigtail Length (m)

1meter or on customer request

Port Configuration

1x2 or 2x2

Package Dimension

Package A, B, C





Single mode Dual Window Broadband Couplers



Grade

P

A

Excess Loss (Typical )(dB)

0.10

0.15

Maximum Insertion loss (dB)

3.6

3.8

Uniformity (Max.) (dB)

0.7

1.0

Polarization Sensitivity (dB)

0.10

0.15

Operating Wavelength (nm)

1310 /1550 + 40





Coupling Ratio/Insertion Loss Conversion Chart



Coupling Ratio

Insertion Loss

Premium

A Grade

40/60

4.7/2.7

5.0/2.9

30/70

6.0/1.9

6.4/2.1

20/80

7.9/1.2

8.4/1.4

10/90

11.3/0.5

12.7/0.8

5/95

15.2/0.4

18.5/0.5

1/99

22.5/0.3

23.0/0.4





Order Information

Type

Grade

Wave-

length

Coupling

Ratio (dB)

Port

Package

Pigtail Style

Fiber Type

In/Out

Connector

S
W

P
A

35=1310/

1550nm
36=1310/

1585nm

50=50/50
30=30/70
10=10/90
05=5/95
01=1/99

0102=1x2
0202=2x2

A=Package A
B=Package B
C=Package C

0=Bare Fiber
1=900µm Jacket
2=2mm Cable

3=3mm Cable

0=SMF-28
D=DS Fiber

0=None
1=FC/APC
2=FC/PC
3=SC/APC
4=SC/PC
5=ST
6=LC

* Type:

S--Single mode Standard Coupler
W -- Single mode Broadband Coupler
