| Brand Name: | YINGDA |
| Model Number: | GJXFH-04 |
| MOQ: | 10km |
| Price: | Negotiable |
| Delivery Time: | 5 working days |
| Payment Terms: | T/T or western Union |
Fiber Optical FTTH Drop Cable Figure-8 4Core / Fiber FTTH cable (GJXFH)

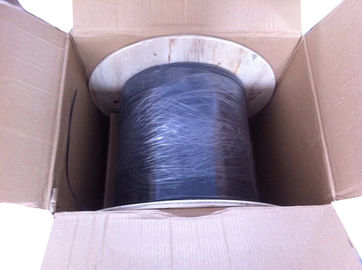

2KM / Wooden Drum Carton Box Pack
Features
Description
The optical fiber unit is positioned in the center ,two parallel fiber reinforced plastics FRP
are placed at the two sides ,then the cable is completed with a black or color LSZH Sheath.
Application
Used as access building cable
Used in indoor cabling especially used for FTTH

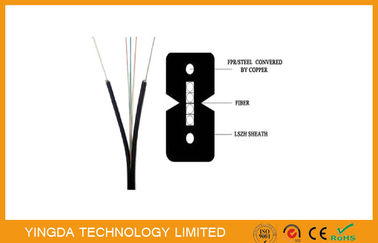

Cable structure
Technical parameters
|
Cable code |
Fiber count |
Cable size (mm) |
Cable weight (kg/km) |
Tensile(N) |
Crush (N/100mm) |
Crush resistance |
Temperature (°C) |
|||||||
|
Long term |
Short term |
Long term |
Short term |
Dynamic |
Static |
|||||||||
|
GJXFH-01 |
1 |
1.6*2.0 |
5 |
40 |
80 |
500 |
1000 |
30D |
15D |
-20~+60 |
||||
|
GJXFH-01 |
1 |
2.0*3.0 |
8 |
40 |
80 |
500 |
1000 |
30D |
15D |
|||||
|
GJXFH-02 |
2 |
2.0*3.0 |
8.5 |
40 |
80 |
500 |
1000 |
30D |
15D |
|||||
|
GJXFH-04 |
4 |
2.0*3.0 |
9 |
40 |
80 |
500 |
1000 |
30D |
15D |
|||||
|
GJXFH-06 |
6 |
3.0*4.0 |
14 |
45 |
85 |
500 |
1000 |
30D |
15D |
|||||
|
GJXFH-08 |
8 |
3.0*4.0 |
16 |
50 |
90 |
500 |
1000 |
30D |
15D |
|||||
|
GJXFH-12 |
12 |
3.0*4.0 |
19 |
55 |
95 |
500 |
1000 |
30D |
15D |
|||||
|
Fiber type |
G652D |
50/125 |
62.5/125 |
G657A1 |
G657A2 |
OM3-150 |
OM3-300 |
OM4 |
||||||
|
Jacket material |
PE |
LSZH |
||||||||||||
|
|
