LAN / WAN Mini Module Fiber Optic PLC Splitter blockless 0.9mm with SC / UPC Connector
  • name
  • name
  • name
  • name
  • name

LAN / WAN Mini Module Fiber Optic PLC Splitter blockless 0.9mm with SC / UPC Connector

MOQ: 100PCS
Price: 1.1USD-4.58USD
Standard Packaging: Packed in blister box or carton box,then in a shipping outer carton box.
Delivery Period: 5 working days after received your payment
Payment Method: T/T or western Union
Supply Capacity: 100,000pcs per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO
Highlight:

fbt coupler

,

plc splitter

Product Description

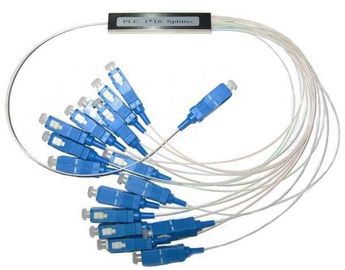

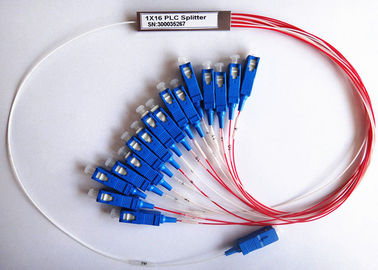

Fiber Optic PLC splitter mini module/1:16 blockless PLC splitter 0.9mm with SC/UPC connector single mode

splitter coupler,white color cable

Unique Service:

  1. SAMPLES for quality testing are available
  2. 6working days leading time if order quantity < 100pcs
  3. Drawing, Specification, Test Report  can be sent at any time if request
  4. Quality complaint will handle in 24 hours by our After-sales Service Dept
  5. 1pcs per pack
  6. OEM/ODM, customer LOGO or label available.



Features

Low Insertion loss

Low PDL

Compact Design

Good channel-to-channel uniformity

High Reliability and Stability



Application

FTTX Systems

PON Networks

CATV Links

Optical Signal Distribution

LAN/WAN system



Compliance

Telcordia GR-1209-CORE

Telcordia GR-1221-CORE

RoHS



Specification

Split ratio

1x2

1x4

1x8

1x16

1x32

1x64

1x128

Operating Wavelength(nm)

1260-1620nm

Fiber Type

G657A1 or customer specified

Insertion Loss (dB)P Grade

3.8

7.1

10.2

13.5

16.5

20.5

23.8





Insertion Loss (dB) S Grade

4.0

7.3

10.5

13.7

16.9

21

24.2





Loss Uniformity(dB)

0.4

0.6

0.8

1.2

1.5

2

2.5





Polarization Dependent

 Loss(dB)

0.2

0.2

0.2

0.25

0.3

0.35

0.4





Return Loss (dB)

55

Directivity (dB)

55

Wavelength Dependent

 Loss(dB)

0.3

0.3

0.3

0.5

0.5

0.5

0.5





Temperature Stability

(-40- +85℃)(dB)

0.4

0.4

0.4

0.5

0.5

0.5

0.5





Operating Temperature

-40- +85℃

Storage Temperature

-40- +85℃



Split ratio

1x2

1x4

1x8

1x16

1x32

1x64

1x128

Mini-Module Dimension

(mm)

60*7*4

60*7*4

60*7*4

60*12*4

80*20*6

100*40*6

N/A
