GPON Mini Optical Fiber Splitter Planar Lightwave Circuit SC/UPC 1x32 PLC Splitter

GPON Mini Optical Fiber Splitter Planar Lightwave Circuit SC/UPC 1x32 PLC Splitter

  • High Light

    GPON optical fiber splitter

    ,

    ISO optical fiber splitter

    ,

    SC UPC 1x32 PLC Splitter

  • Split Ratio
    1x32 Couplers
  • Connector
    SC
  • Fiber Type
    Singlemode G657A1
  • Insertion Loss
    16.5dB
  • Uniformity (Max.)
    <1.3dB
  • Wavelength
    1260 - 1650 Nm
  • PDL(Max.)
    0.3dB
  • Standard
    Telcordia GR-1221 And GR-1209
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO
  • Model Number
    1x32 fiber optic splitter
  • Minimum Order Quantity
    100 pcs
  • Price
    negotiable
  • Packaging Details
    1pc/ box, 20pcs/carton box
  • Delivery Time
    5-8days after payment
  • Payment Terms
    Western Union, T/T, MoneyGram
  • Supply Ability
    10,000 pcs per month

GPON Mini Optical Fiber Splitter Planar Lightwave Circuit SC/UPC 1x32 PLC Splitter

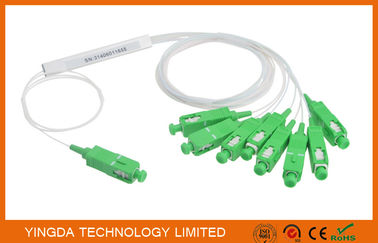

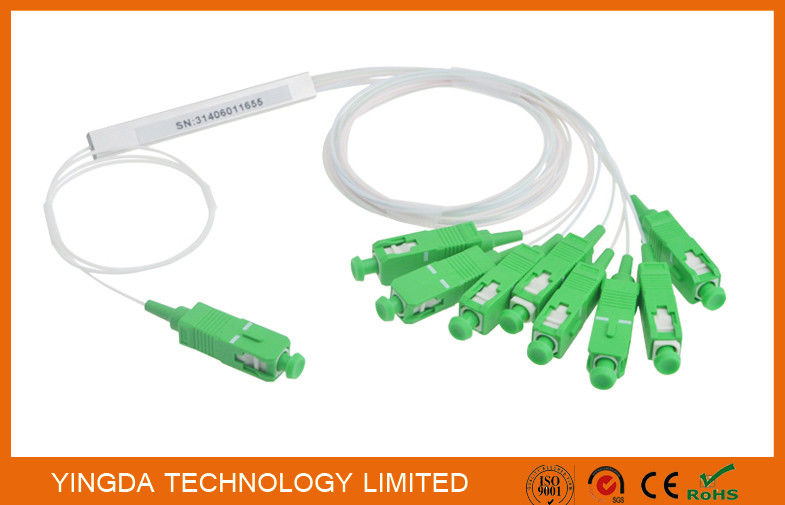

GPON 1:32 Mini Optical Fiber Splitter Planar Lightwave Circuit with SC/UPC Connector Steel Tube





YINGDA provides whole series of 1xN and 2xN splitter products .



Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.



All products meet GR-1209-CORE and GR-1221-CORE requirements.





Splitter Tube Internal Structures:

GPON Mini Optical Fiber Splitter Planar Lightwave Circuit SC/UPC 1x32 PLC Splitter 0







Feature Of Fiber Optic Splitter

- Good uniformity and low insertion loss

- Low Polarization Dependent Loss

- Excellent Environmental Stability

- Stability Telcordia GR-1221 and GR-1209

- High Reliability and Stability



Telcordia GR-1209 & GR-1221-CORE Compliant

High Polarization Extinction Ratio & Excellent Uniformity

Jacketing Material Rated to -40 to +85 °C Operating Temperature

Compact package,convenient for small Application & High Density Areas

Offer Unique Designs and Configuartions & Support Industry Standard Applications



Applications

  • Fiber to The Home (FTTH)
  • Passive optical networks (PON)
  • Local Area Networks (LAN)
  • Cable Television (CATV)
  • Test Equipment
  • FTTX Systems
  • PON Networks
  • CATV Links



1×N PLC Splitter Specifications



Ports 1×2 1×4 1×8 1×16 1×32 1×64
Operating Wavelength (nm) 1260~1650
Insertion Loss (dB) Max(P/S) 3.8/4.0 7.1/7.3 10.2/10.5 13.5/13.7 16.5/16.8 20.5/21.0
Loss Uniformity (dB) Max 0.6 0.6 0.8 1.2 1.5 2.5
PDL (dB) Max 0.15 0.15 0.25 0.3 0.3 0.3
Return Loss (dB) Min UPC:50 APC:55
Directivity (dB) Min 55
Standard Input Fiber Bend Insensitive SM Single Fiber(ITU G.657A)
Standard Output Fiber Bend Insensitive SM Ribbon Fiber(ITU G.657A)
Standard Output Color Blue,Orange,Green,Brown,Grey,White,Red,Black (TIA/EIA 598-B)
Max.Optical Power(mw) 300
Humidity Range(rh) 5%~85%
Operating Temperature(°C) -40~+85
Storage Temperature(°C) -40~+85
Connector Options FC/SC/LC/ST/MU/E2000
Packaging Options Bare Device*Mini Tube*ABS Module*LGX Box*19''/23'' Rack-mount

*Telcordia GR-1221-CORE&G-1209-CORE Compliant.
*Premium spec available upon request. (P/S:Premium Grade/Standard Grade)
*Typical value at +23°C without connectors losses.



Product details

GPON Mini Optical Fiber Splitter Planar Lightwave Circuit SC/UPC 1x32 PLC Splitter 1GPON Mini Optical Fiber Splitter Planar Lightwave Circuit SC/UPC 1x32 PLC Splitter 2

plc splitter input and output color, connectors,length can be decide by customers: white, blue, green, red..etc

the steel tube can print a label with customer logo, part number or other important ghings.



GPON Mini Optical Fiber Splitter Planar Lightwave Circuit SC/UPC 1x32 PLC Splitter 3GPON Mini Optical Fiber Splitter Planar Lightwave Circuit SC/UPC 1x32 PLC Splitter 4

ribbon fibers inside: 4x8fibers, input: 1 or 2 series ok, package by box, better protection for connectors and fibers.







Order information



Type Package size Port Fiber Type Input/output Fiber length connector
PLCS BF=bare fiber
FO=fan-out
MD=module
MB=metal box
01X02
01x04
01x08
……
02x16
02x32
02x64
0=G652D
1=G657A
C=Customize
1=bare fiber
2=900µm
tight buffered
3=2.0mm
Loose tube
4=3.0mm
Loose tube
1=1m
2=1.5m
C=Customize

0=no connector
1=FC/APC
2=FC/PC
3=SC/APC
4=SC/PC
5=ST/APC
6=ST/PC
7=LC/AP
8=LC/PC
C=customize
