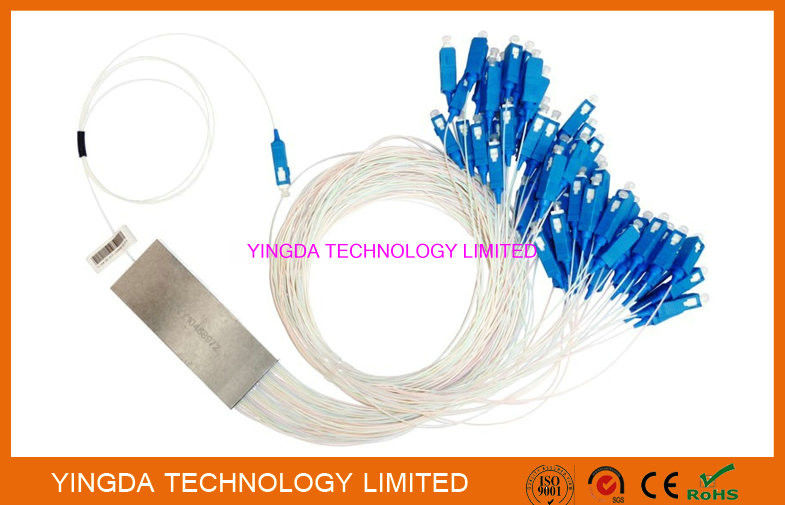

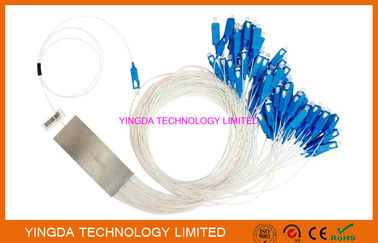

SC/APC Blockless FTTH Fiber Splitter 1x16 PLC Splitter Single Mode 900um LSZH

Products

SFP Module

sales@yingdapc.cn

+86 18688982406

Contact Now

SC/APC Blockless FTTH Fiber Splitter 1x16 PLC Splitter Single Mode 900um LSZH

MOQ:	100 pcs
Price:	1.1USD-4.58USD
Standard Packaging:	2pc/ box, 20pcs/carton box
Delivery Period:	5-8days after payment
Supply Capacity:	10,000 pcs per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin

china

Brand Name

YINGDA

Certification

Model Number

1*16 mini splitter

Split Ratio:

1x16 Micro Splitter

Connector:

SC/APC Simiplex

Fiber Type:

Single Mode G657A1

Uniformity (Max.):

1.4dB

Wavelength:

1260 - 1650 Nm

Standard:

Telcordia GR-1221 And GR-1209

Tube Dimension:

60*12*4mm

Cable Diameter:

0.9mm

Cable Color:

Input White, Output: Colorful

Highlight:

Blockless FTTH Fiber Splitter

LSZH FTTH fiber splitter

1x16 PLC Splitter 900um

Product Description

FTTH Optical Splitter 1:16, 1x16 SC/APC Blockless PLC Splitter Single Mode 900um LSZH

Description Of Fiber Optic PLC Splitter
Planar Lightwave Circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.

Features

Ø Low insertion loss, Low PDL and High reliability

Ø High return loss and Good repeatability

Ø Wide wavelength range

Ø Excellent channel-to-channel uniformity

Applications

Fiber to The Home (FTTH)
Passive optical networks (PON)
Local Area Networks (LAN)
Cable Television (CATV)
Test Equipment
FTTX Systems
PON Networks
CATV Links

PLC Splitter Steel Tube

SC/APC Blockless FTTH Fiber Splitter 1x16 PLC Splitter Single Mode 900um LSZH 0

More pictures

Product is pack by carton box, not blister. 2pcs in a box, then 20pcs in a shipping box. Good and high protection to fiber and steel tube, connectors.

SC/APC Blockless FTTH Fiber Splitter 1x16 PLC Splitter Single Mode 900um LSZH 1

All connectors, cable, plc chip is test 100% before in factory. and each with figure ring for better identification on-site constructions.

SC/APC Blockless FTTH Fiber Splitter 1x16 PLC Splitter Single Mode 900um LSZH 3

Technical Specs for PLC Splitter with Connector

1xn SPLITTER

Item	1x2	1x4	1x8	1x16	1x32	1x64	1x128
Fiber Type	G.657.A
Working Wavelength	1260nm~1650nm
Standard Insertion Loss(dB)	≤4.2	≤7.6	≤10.7	≤14.0	≤17.2	≤20.8	≤24.0
P-Grade Insertion Loss(dB)	≤4.0	≤7.4	≤10.5	≤13.8	≤17.0	≤20.4	≤23.7
Uniformity(dB)	≤0.6	≤0.8	≤0.8	≤1.0	≤1.5	≤2.0	≤2.0
PDL(dB)	≤0.2	≤0.2	≤0.3	≤0.3	≤0.3	≤0.4	≤0.5
Wavelength Dependent Loss(dB)	≤0.6	≤0.8	≤0.8	≤1.0	≤1.5	≤2.0	≤2.0
Return Loss(dB)	≥50
Directivity(dB)	≥55
Operating Temp.Gange	-40℃~+85℃
Note:The above parameter is for Splitter with connector.If w/o connector,insertion loss will reduce by 0.2dB.

2XN splitter

Item	2x2	2x4	2x8	2x16	2x32	2x64	2x128
Fiber Type	G.657.A
Working Wavelength	1260nm~1650nm
Standard Insertion Loss(dB)	≤4.4	≤8.0	≤11.0	≤14.6	≤17.8	≤21.0	≤24.4
P-Grade Insertion Loss(dB)	≤4.2	≤7.7	≤10.8	≤14.1	≤17.4	≤20.7	≤24.0
Uniformity(dB)	≤0.8	≤1.0	≤1.2	≤1.5	≤1.8	≤2.0	≤3.0
PDL(dB)	≤0.2	≤0.2	≤0.3	≤0.3	≤0.3	≤0.4	≤0.5
Wavelength Dependent Loss(dB)	≤0.8	≤1.0	≤1.2	≤1.5	≤1.8	≤2.0	≤3.0
Return Loss(dB)	≥50
Directivity(dB)	≥55
Operating Temp.Gange	-40℃~+85℃
Note:The above parameter is for Splitter with connector.If w/o connector,insertion loss will reduce by 0.2dB.

Special notes:

This product can be customized according to your requirements.

Please contact me to confirm everything before you pay. Thank you.

All the goods are inspected and tested 100% before shipment with test report

The shipping and handling charge is all bared by customers if not mentioned especially.

Trade term:EXW, FOB.

TT 100% in advance, no credit or L/C

Types of Fiber Optic Splitter

1. Basic type PLC splitter
2. SFF type PLC splitter
3. 900um Fan-out Type PLC Splitter
4. Cassette type PLC splitter Module
5. Rack type PLC splitter Module
6. Tray assembly PLC splitter Module
7. Flat Quick-Connect Termination Type PLC Splitter Module
