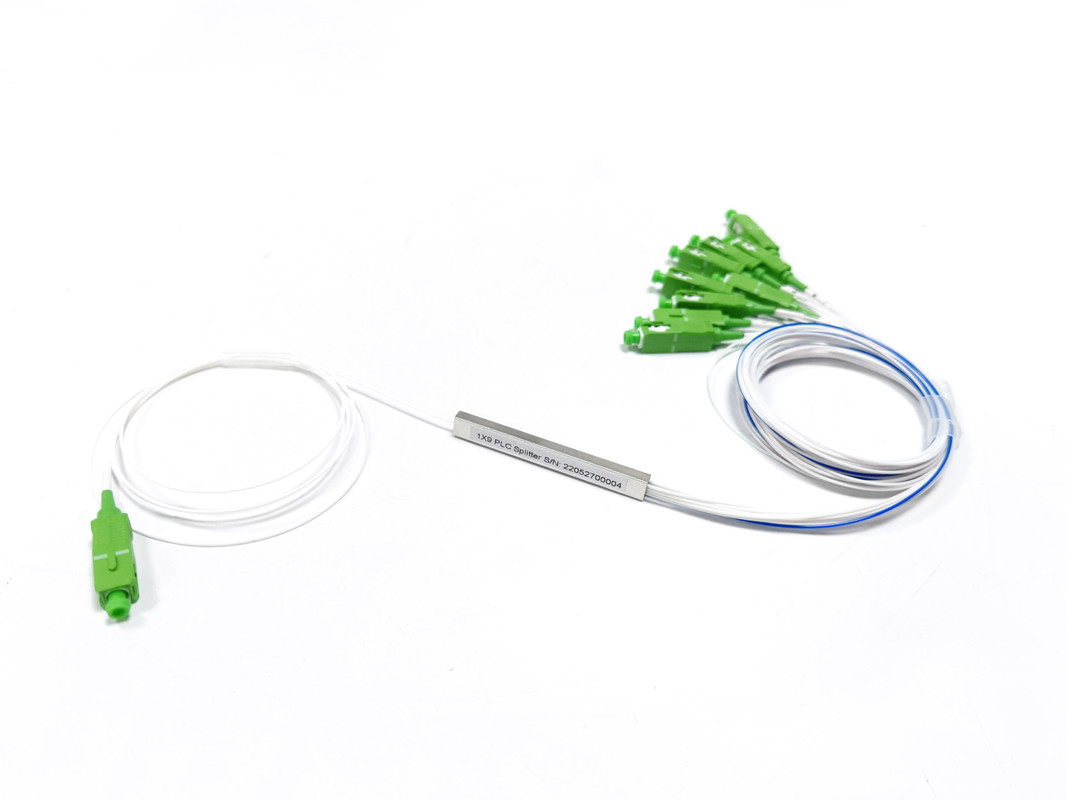

Tight Buffer Fiber Optic PLC Splitter Single Mode SC APC G657A1 1Meter

Name: Tight Buffer Fiber Optic PLC Splitter Single Mode SC APC G657A1 1Meter
Brand: YINGDA TECHNOLOGY LIMITED
SKU: 1:9 PLC splitter
Price: 2.10 USD
Availability: InStock

Brand Name:	YINGDA
Model Number:	1:9 PLC splitter
MOQ:	100 pcs
Price:	1.1USD-4.58USD
Delivery Time:	5-8days after payment
Payment Terms:	Western Union, T/T, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

ISO, CE

Split Ratio:

1x9 Splitter

Fiber Type:

G657A1

Insertion Loss:

2.2dB / 16.3 DB

Connector:

SC APC Connector

Wavelength:

1260 - 1650 Nm

Tube Dimension:

60*7*4mm

Input And Output Length:

1meter

Cable Type:

Tight Buffer

Cable Color:

White, Blue, Colorful

Cable Diameter:

0.9mm

Packaging Details:

1pc/ box,80pcs/carton box

Supply Ability:

10,000 pcs per month

Highlight:

tight buffer Fiber Optic PLC Splitter

0.9mm Fiber Optic PLC Splitter

G657A1 Single Mode PLC Splitter

Product Description

1:9 1x9 70/30 Unbalanced Fiber Optic PLC Splitter Single Mode SC APC G657A1 1Meter

Planar Lightwave Circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.

Features

• Low insertion loss and high return loss

• PDL automatic screening system(Ultra low PDL is available)

• High reliability and stability

• Connector can up to grade B

• 100% 3D tested by Daisi and Sumix

1x9 Splitter Specification

Split ratio (%)		85/15	80/20	70/30	60/40
Operating wavelength (nm)		1260-1650
Fiber type		G657A or customized
IL max(dB)	channel 1	1.6	1.8	2.1	2.7
	channel 2-9	21.0	18.6	16.5	15.1
IL uni(dB)	Channel 2-9	1.8	1.8	1.8	1.8
Return loss (dB)		≥55
Directivity (dB)		≥55
PDL (max.)		0.3	0.3	0.3	0.3
Uniformity (max.)		0.8	0.8	0.8	0.8
Wavelength dependent loss (dB)		≤0.3
TDL (max.)		0.5
Operating temperature		-40 ~+85
Storage temperature		-40 ~+85
Dimension (mm) / LXWXH	Bare fiber	60x7x4	60x7x4	60x7x4	60x7x4
	900um	60x7x4	60x7x4	60x7x4	60x7x4
	ABS box	120x80x18	120x80x18	120x80x18	120x80x18

Note:

1. Specified without connectors

2. Add an additional 0.2dB loss including connectors

Tight Buffer Fiber Optic PLC Splitter Single Mode SC APC G657A1 1Meter 0

Output of the optical splitter can divide into 70/30 80/20 60/40 or 85/15% 4types, in order to distinguish the split ration, use different color like blue to mark, this special chip 1x9 ensure unbalanced split ratio not equal types, which can meet special requirements and flexible optical application, and is widely used in 5G FTTR networks.

Tight Buffer Fiber Optic PLC Splitter Single Mode SC APC G657A1 1Meter 1

1x9 unbalanced splitter use the same steel tube 60*7*4mm as 1x8 splitter, input 1, output 9= 4*2+1pcs fiber array.

Fiber color is colorful, loose tube 900um can be customized, like blue, orange, green ,brown, gray, white, red, black, etc, with number marks to distinguish.

Tight Buffer Fiber Optic PLC Splitter Single Mode SC APC G657A1 1Meter 2

All types of optical connectors can be used, like SC FC LC ST;

Polish method: UPC, APC

Input ouput pigtails length: 0.5meter, 1meter, 1.5meter, etc

Application

Passive optical network (such as EPON, GPON, BPON, FTTX, FTTH, etc.)
Supports multiple users to share a single PON interface.

Tight Buffer Fiber Optic PLC Splitter Single Mode SC APC G657A1 1Meter 3

If buy 1:9 optical splitter blockless type only, will pack in blister box with test report. The tube, connectors or cables will be fixed in place in blister box with good protection.

Pre-terminated with connectors and assembly in optical nap box or distribution box is acceptable at factory before delivery.
