G657A1 Fiber Optic PLC Splitter 1m SC APC Connector 0.9mm Cable Diameter

MOQ: 100 pcs
Price: 1.1USD-4.58USD
Standard Packaging: 1pc/ box,80pcs/carton box
Delivery Period: 5-8days after payment
Payment Method: Western Union,T/T,MoneyGram
Supply Capacity: 10,000 pcs per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO, CE
Model Number
1:9 PLC splitter
Split Ratio:
1x9 Splitter
Fiber Type:
G657A1
Insertion Loss:
2.2dB / 16.3 DB
Connector:
SC APC Connector
Wavelength:
1260 - 1650 Nm
PDL(Max.):
0.3dB
Standard:
Telcordia GR-1221 And GR-1209
Tube Dimension:
60*7*4mm
Input And Output Length:
1meter
Cable Diameter:
0.9mm
Highlight:

Fiber Optic PLC Splitter 1m

,

FTTH Fiber Optic PLC Splitter

,

SC APC full arrange PLC Splitter

Product Description

1:9 1x9 70/30 Unbalanced Fiber Optic PLC Splitter Single Mode SC APC G657A1 1Meter


Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations. Yingda full arrange PLC Splitters feature small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity.


Fiber optic splitter features

• Low insertion loss and high return loss

• PDL automatic screening system(Ultra low PDL is available)

• High-low temperature cycle test

• 100% test before delivery

• FTTH Cabling solution could be design


1x9 Splitter Specification

Split ratio (%) 85/15 80/20 70/30 60/40
Operating wavelength (nm) 1260-1650
Fiber type G657A or customized
IL max(dB) channel 1 1.6 1.8 2.1 2.7
channel 2-9 21.0 18.6 16.5 15.1
IL uni(dB) Channel 2-9 1.8 1.8 1.8 1.8
Return loss (dB) ≥55
Directivity (dB) ≥55
PDL (max.) 0.3 0.3 0.3 0.3
Uniformity (max.) 0.8 0.8 0.8 0.8
Wavelength dependent loss (dB) ≤0.3
TDL (max.) 0.5
Operating temperature -40 ~+85
Storage temperature -40 ~+85
Dimension (mm) / LXWXH Bare fiber 60x7x4 60x7x4 60x7x4 60x7x4
900um 60x7x4 60x7x4 60x7x4 60x7x4
ABS box 120x80x18 120x80x18 120x80x18 120x80x18

Note:

1. Specified without connectors

2. Add an additional 0.2dB loss including connectors

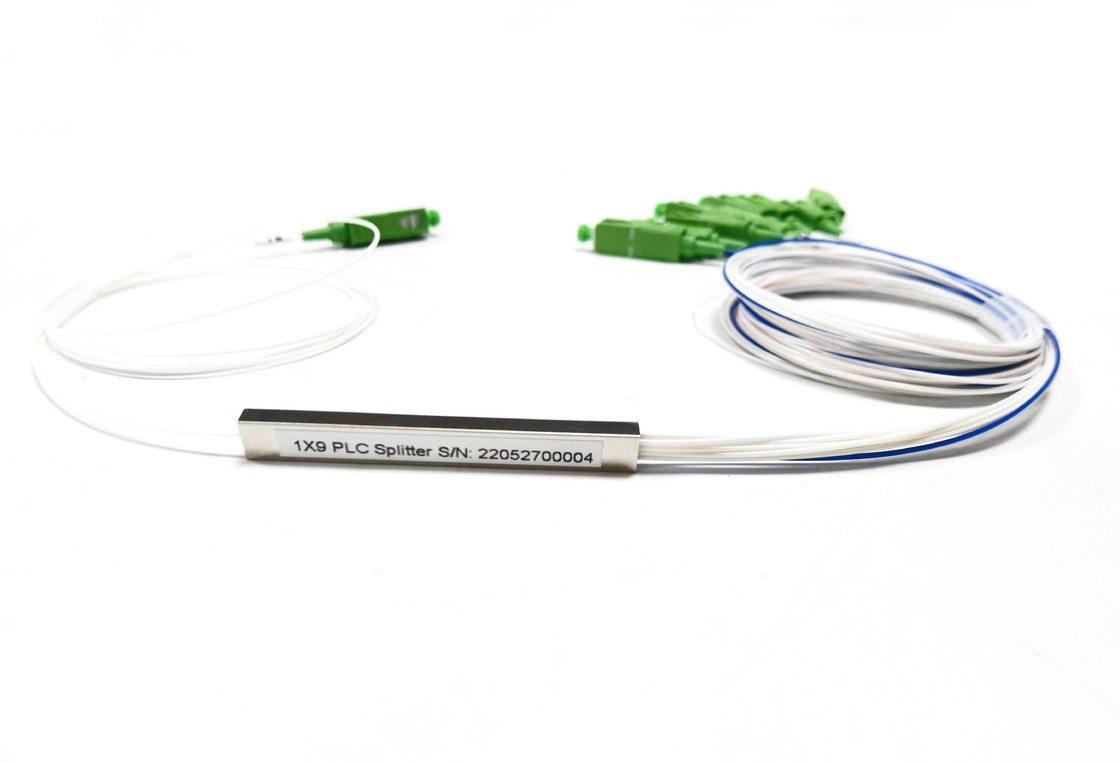

G657A1 Fiber Optic PLC Splitter 1m SC APC Connector 0.9mm Cable Diameter 0

Output of the optical splitter can divide into 70/30  80/20 60/40  or 85/15% 4types, in order to distinguish the split ration, use different color like blue to mark, this special chip 1x9 ensure unbalanced split ratio not equal types, which can meet special requirements and flexible optical application, and is widely used in 5G FTTR networks.

G657A1 Fiber Optic PLC Splitter 1m SC APC Connector 0.9mm Cable Diameter 1

1x9 unbalanced splitter use the same steel tube 60*7*4mm as 1x8 splitter, input 1, output 9= 4*2+1pcs fiber array.

Fiber color is colorful, loose tube 900um can be customized, like blue, orange, green ,brown, gray, white, red, black, etc, with number marks to distinguish.

G657A1 Fiber Optic PLC Splitter 1m SC APC Connector 0.9mm Cable Diameter 2

All types of optical connectors can be used, like SC FC LC ST;

Polish method: UPC, APC

Input ouput pigtails length: 0.5meter, 1meter, 1.5meter, etc

Application

  • EPON
  • GPON
  • FTTX
  • FTTH
  • Supports multiple users to share a single PON interface.


G657A1 Fiber Optic PLC Splitter 1m SC APC Connector 0.9mm Cable Diameter 3

If buy 1:9 optical splitter blockless type only, will pack in blister box with test report. The tube, connectors or cables will be fixed in place in blister box with good protection.

Pre-terminated with connectors and assembly in optical nap box or distribution box is acceptable at factory before delivery.
