1x3 Fiber Optical PLC Splitter Singlemode G657A SC APC Connector 1260 - 1650 Nm

Place of Origin china
Brand Name YINGDA
Certification ISO, CE
Model Number 1x3 Unbalanced splitter
Minimum Order Quantity 100 pcs
Price negotiable
Packaging Details 1pc/ box, 20pcs/carton box
Delivery Time 5-8days after payment
Payment Terms Western Union, T/T, MoneyGram
Supply Ability 10,000 pcs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Split Ratio 1:3 Splitter Connector SC APC Connector
Fiber Type Singlemode G657A Channel 1 Insertion Loss 1.8-4.6dB
Channel 2-3 11.5-6.3dB Wavelength 1260 - 1650 Nm
PDL(Max.) 0.3dB Standard Telcordia GR-1221 And GR-1209
High Light

SC APC Fiber Optical PLC Splitter


1650 Nm Fiber Optical PLC Splitter


G657A 1x3 PLC Splitter

Leave a Message
Product Description

FTTR PON 1:3 Unbalanced Mini Steel Tube Fiber Optical PLC Splitter SC 1X3 80/20 G657A


Fiber Optics PLC Splitters provide a cost effective and space saving product suitable to the ever changing networking requirements. With it’s compact size,these splitters can be utilized in in-ground and aerial pedestals as well as rack mount systems. Installation is simple using a variety of connector types or fusion splicing.


YINGDA supply Planar Lightwave Circuits which are key components used in FTTx networks including 1:2 1:3 1:4 1:5  :6 1:12 1:24 1:32 1:64 1:128 and 2:2 2:4 2:8 2:24 2:32 2:64 etc. It is with a wide range of working wavelength from 1260nm to 1620nm. The PLC splitter can be with optional various kinds of connectors and cable length, they feature compact size and very good optical performance.


Nowadays FTTR fiber optic network need more unbalanced split ratio, so our unbalanced splitter with chips instead of fusion couplers emerge and graduallly in big demand on market.


1:3 Optical Splitter Features

  • One-stop Solution Provider for Fiber OpticTelecommunication Connectivity Industries.
  • 10 years manufacture experience
  • Meet the standard of Telcordia GR-1209-core,GR-1221-core
  • Factory price;
  • Certified by CE,ROHS,ISO,SGS,TLC;
  • 1xN,2xN optional;
  • Low insertion loss, Low PDL and High reliability
  • High return loss and Good repeatability
  • Wide wavelength range


1x3 Mini Unbalanced PLC Splitter Specification

Split ratio (%) 80/20 70/30 60/40 40/60
Operating wavelength (nm) 1260-1650
Fiber type G657A or customized
IL max(dB) channel 1 1.8 2.2 2.6 4.6
channel 2-3 11.5 9.6 8.3 6.3
IL uni(dB) Channel 2-3 1.8 1.8 1.8 1.8
Return loss (dB) ≥55
Directivity (dB) ≥55
PDL (max.) 0.3 0.3 0.3 0.3
Uniformity (max.) 0.8 0.8 0.8 0.8
Wavelength dependent loss (dB) ≤0.3
TDL (max.) 0.5
Operating temperature -40 ~+85
Storage temperature -40 ~+85
Dimension (mm) / LXWXH Bare fiber 60x7x4 60x7x4 60x7x4 60x7x4
900um 60x7x4 60x7x4 60x7x4 60x7x4
ABS box 120x80x18 120x80x18 120x80x18 120x80x18

1x3 Fiber Optical PLC Splitter Singlemode G657A SC APC Connector 1260 - 1650 Nm 0

1x3 Fiber Optic PLC Unbalanced Splitter can be with different split ratios like  80:20 70:30  60:40 40:60 to meet different requirements, except balanced 50/50. All datas can be meet by PLC CHIPs, not need to fusion splice, which may be fiber broken or not stable during long time transporation or temperature change.


In order to distinguish split channel or ratio on site construction by human eye, output loose tube pigtails 900um use differnt color, for example blue, the rest to use white. Colorful is accpetable, sample is available.  When order, please advice.

1x3 Fiber Optical PLC Splitter Singlemode G657A SC APC Connector 1260 - 1650 Nm 1

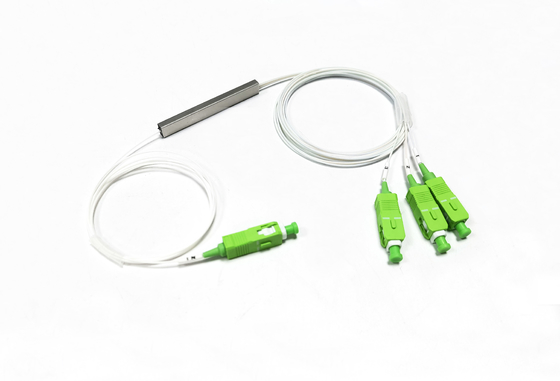

The steel tube is standard size:60*7*4mm, which ease on site construction and uniform.

There will be a sticker on steel tube, OEM with customer logo is availble.

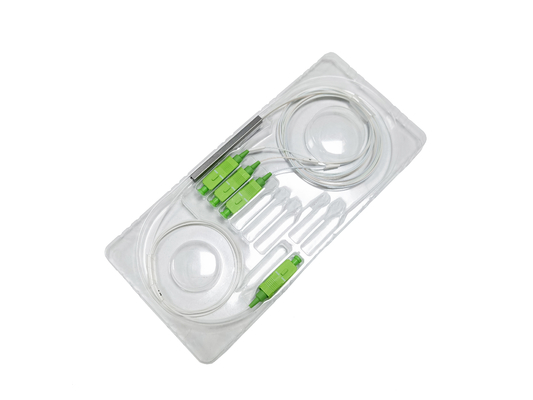

When delivery, it will be fix on the blister box slot which is especially design, not movable to make the fiber in safe.

1x3 Fiber Optical PLC Splitter Singlemode G657A SC APC Connector 1260 - 1650 Nm 2

Input and output connectors can be customized, SC FC LC ST with UPC, APC polish.

There will be number ring to distinguish, input with IN.

If output with colorful loose tube, there will be no number rings, pls kindly note.

1x3 Fiber Optical PLC Splitter Singlemode G657A SC APC Connector 1260 - 1650 Nm 3

  • Unique blister box deisgn, all connectors will be put in slots to make it in place during transporation, better protection than plastic bag or foam.  Transparent materials make it visible to check.
  • Reasonable bend radius ensure good optical performance.
  • Each 1x5 plc splitter will be deliver with test report included.

1x3 Fiber Optical PLC Splitter Singlemode G657A SC APC Connector 1260 - 1650 Nm 4

Factory price and productivity, can meet customer different project requirments, like length, color, connector or different optical performance. Welcome OEM and ODM.


1*3 70/30 FBT Coupler Splitter Application

  • FTTX Systems
  • PON Networks
  • CATV Links
  • Optical Signal Distribution


1x3 80/20 Coupler Compliance

  • Telcordia GR-1209-CORE
  • Telcordia GR-1221-CORE
  • RoHS




1).Lead time

With more than 100 employees in my company,at least 10,000 connectors can be produced a day. So we can assure the lead time.


2).Research Department

With our separate research team,it is advantageous that we are albe to have products made according to your requirements.


3).Qulity assurance

Every product will be tested to be of good quality.Meanwhile free samples can be supplied for your test.The guarantee period is 10 years.So if there are problems with the goods,replacement will be available.
