70 / 30 Unbalanced Fiber Optic PLC Splitter Single Mode SC APC G657A1 1x9 PLC Splitter

70 / 30 Unbalanced Fiber Optic PLC Splitter Single Mode SC APC G657A1 1x9 PLC Splitter
70 / 30 Unbalanced Fiber Optic PLC Splitter Single Mode SC APC G657A1 1x9 PLC Splitter 70 / 30 Unbalanced Fiber Optic PLC Splitter Single Mode SC APC G657A1 1x9 PLC Splitter

Large Image :  70 / 30 Unbalanced Fiber Optic PLC Splitter Single Mode SC APC G657A1 1x9 PLC Splitter

Product Details:
Place of Origin: china
Brand Name: YINGDA
Certification: ISO, CE
Model Number: 1:9 PLC splitter
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: negotiable
Packaging Details: 1pc/ box,80pcs/carton box
Delivery Time: 5-8days after payment
Payment Terms: Western Union, T/T, MoneyGram
Supply Ability: 10,000 pcs per month

70 / 30 Unbalanced Fiber Optic PLC Splitter Single Mode SC APC G657A1 1x9 PLC Splitter

Description
Split Ratio: 1x9 Splitter Fiber Type: G657A1
Insertion Loss: 2.2dB / 16.3 DB Connector: SC APC Connector
Wavelength: 1260 - 1650 Nm PDL(Max.): 0.3dB
Standard: Telcordia GR-1221 And GR-1209 Tube Dimension: 60*7*4mm
Input And Output Length: 1meter Cable Type: Tight Buffer
Cable Color: White, Blue, Colorful Cable Diameter: 0.9mm
High Light:

G657A1 Fiber Optic PLC Splitter

,

Single Mode Fiber Optic PLC Splitter

,

SC APC 1x9 PLC Splitter

1:9 1x9 70/30 Unbalanced Fiber Optic PLC Splitter Single Mode SC APC G657A1 1Meter





Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations. Yingda full arrange PLC Splitters feature small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity.



Features

• Low insertion loss and high return loss

• PDL automatic screening system(Ultra low PDL is available)

• High reliability and stability

• Connector can up to grade B

• 100% 3D tested by Daisi and Sumix

• High-low temperature cycle test

• 100% test before delivery

• FTTH Cabling solution could be design



1x9 Splitter Specification

Split ratio (%) 85/15 80/20 70/30 60/40
Operating wavelength (nm) 1260-1650
Fiber type G657A or customized
IL max(dB) channel 1 1.6 1.8 2.1 2.7
channel 2-9 21.0 18.6 16.5 15.1
IL uni(dB) Channel 2-9 1.8 1.8 1.8 1.8
Return loss (dB) ≥55
Directivity (dB) ≥55
PDL (max.) 0.3 0.3 0.3 0.3
Uniformity (max.) 0.8 0.8 0.8 0.8
Wavelength dependent loss (dB) ≤0.3
TDL (max.) 0.5
Operating temperature -40 ~+85
Storage temperature -40 ~+85
Dimension (mm) / LXWXH Bare fiber 60x7x4 60x7x4 60x7x4 60x7x4
900um 60x7x4 60x7x4 60x7x4 60x7x4
ABS box 120x80x18 120x80x18 120x80x18 120x80x18

Note:

1. Specified without connectors

2. Add an additional 0.2dB loss including connectors


70 / 30 Unbalanced Fiber Optic PLC Splitter Single Mode SC APC G657A1 1x9 PLC Splitter 0

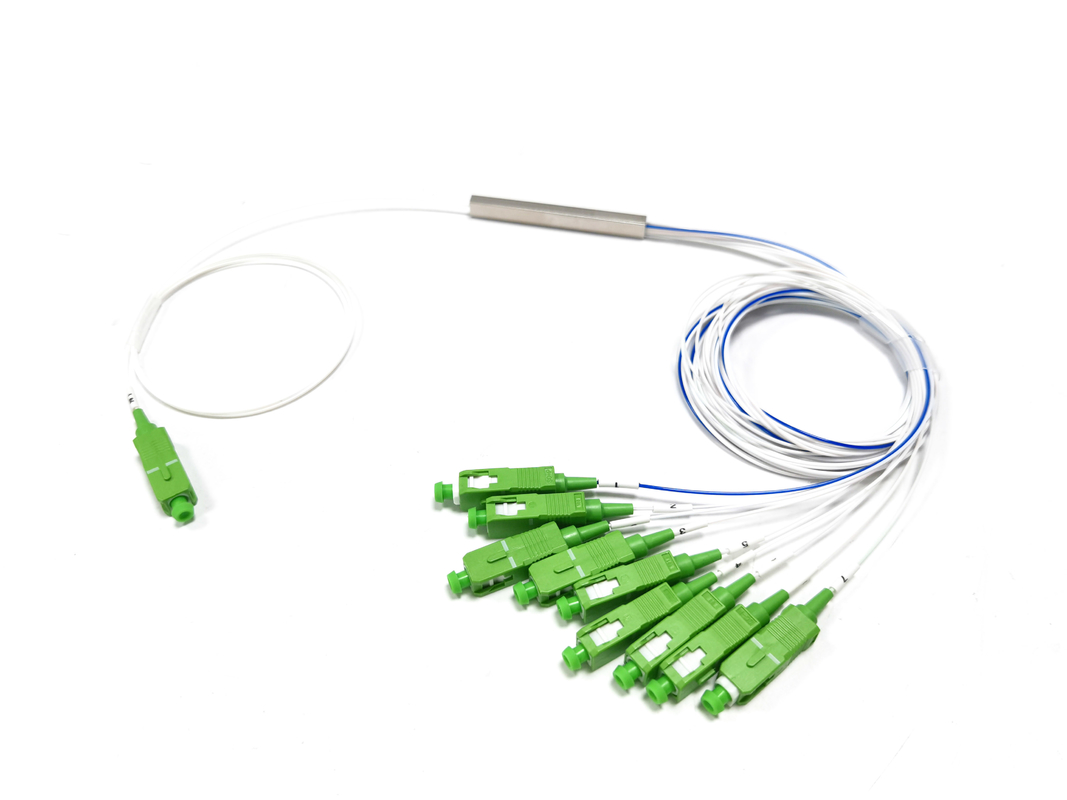

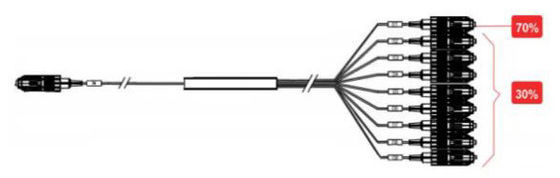

Output of the optical splitter can divide into 70/30  80/20 60/40  or 85/15% 4types, in order to distinguish the split ration, use different color like blue to mark, this special chip 1x9 ensure unbalanced split ratio not equal types, which can meet special requirements and flexible optical application, and is widely used in 5G FTTR networks.


70 / 30 Unbalanced Fiber Optic PLC Splitter Single Mode SC APC G657A1 1x9 PLC Splitter 1

1x9 unbalanced splitter use the same steel tube 60*7*4mm as 1x8 splitter, input 1, output 9= 4*2+1pcs fiber array.

Fiber color is colorful, loose tube 900um can be customized, like blue, orange, green ,brown, gray, white, red, black, etc, with number marks to distinguish.


70 / 30 Unbalanced Fiber Optic PLC Splitter Single Mode SC APC G657A1 1x9 PLC Splitter 2

All types of optical connectors can be used, like SC FC LC ST;

Polish method: UPC, APC

Input ouput pigtails length: 0.5meter, 1meter, 1.5meter, etc


Application

  • Passive optical network (such as EPON, GPON, BPON, FTTX, FTTH, etc.)
  • Supports multiple users to share a single PON interface.



70 / 30 Unbalanced Fiber Optic PLC Splitter Single Mode SC APC G657A1 1x9 PLC Splitter 3

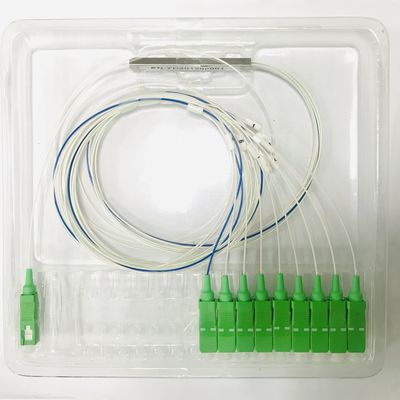

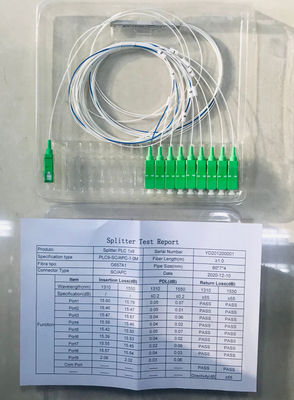

If buy 1:9 optical splitter blockless type only, will pack in blister box with test report. The tube, connectors or cables will be fixed in place in blister box with good protection.

Pre-terminated with connectors and assembly in optical nap box or distribution box is acceptable at factory before delivery.
