8 Fibers MPO Cassette Module G657A2 LSZH Hydra Cable Assembly APC

8 Fibers MPO Cassette Module G657A2 LSZH Hydra Cable Assembly APC

  • High Light

    8 Fibers mpo cassette module

    ,

    SGS mpo cassette module

    ,

    LSZH mtp cassette module

  • Connector
    MPO MTP LC Connectors
  • Fiber Count
    8fibers MPO, 12fibers MPO, 24fibers MPO
  • Application
    Data Center, High Density Cable System
  • Cable Length
    0.35meter In Box, Outside Customized
  • Cable Diameter
    12 Color Pigtails 900um
  • Fiber Type
    OM3 10G Multimode Cable
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO SGS ROHS
  • Model Number
    MTPC-24F-M
  • Minimum Order Quantity
    10 pcs
  • Price
    negotiable
  • Packaging Details
    1 pc/ box, 20pcs / carton box
  • Delivery Time
    7days after payment
  • Payment Terms
    Western Union, T/T
  • Supply Ability
    10,000 pcs per month

8 Fibers MPO Cassette Module G657A2 LSZH Hydra Cable Assembly APC

12 24 Fibers Optical MTP MPO Module Cassette G657A2 LSZH Hydra Cable Assembly APC



The MPO module Cassettes are mainly used to divide the 12 or 24 fibers MPO connector of the pre-assembled terminal end to the simplex or duplex standard connector. By using the simplex or duplex patch cords, the output of the modules can be directly connected with the equipment, frame or the client end.

Features
Adopts high quality engineering plastics and Aluminum alloy material, with electrostatic plating
surface, outstanding in appearance and users friendly.
MPO faceplate can be upgraded easily.
All the front ports are with mark no. , easy to identify.
Quick and easy installed, flexible in configuration and easy to management

MPO MTP Connectors Specification
Insertion loss (dB) SM standard SM Elite MM standard MM Elite
Return loss (dB) ≤0.7 ≤0.35 ≤0.7 ≤0.35
Durability (dB) ≥60 ≥60
Tensile strength (kgf) 10
Working temperature (°C) -20~+70
Measurement wavelength (nm) 1310 850
Geometry Parameters
Item X-axis Y-axis
Min Max Min Max
Radius of curvature (mm) 500 - 50 -
Polishing angle 0-0.2 0+0.2 8-0.2 8+0.2
Item Min Max
Fiber height (nm) 1000 3000
Max fiber height error (nm) 600
Adjancent fiber height error (nm) -300 +300
Avg. Fiber height error(nm) -300 +300
Central concave (nm) 300



LC SC FC fiber optic connector Specification

Fiber mode Single mode   Multi mode
Connector polishing Pc Apc Pc
Insertion loss (dB) ≤0.3
Return loss (dB) ≥50 ≥60 ≥35
Repeatability ≤0.2 1000times mating
Working temperature (°C) -40 ~+85
Measurement wavelength (nm) 1310 850

8 Fibers MPO Cassette Module G657A2 LSZH Hydra Cable Assembly APC 0

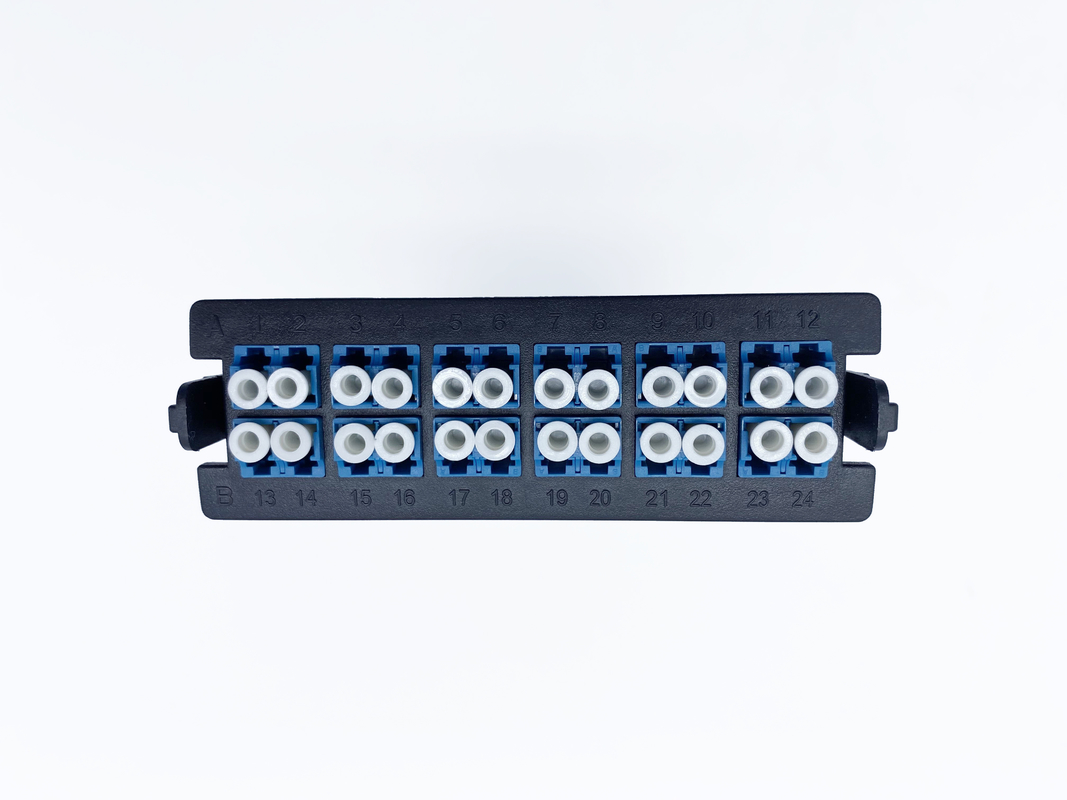

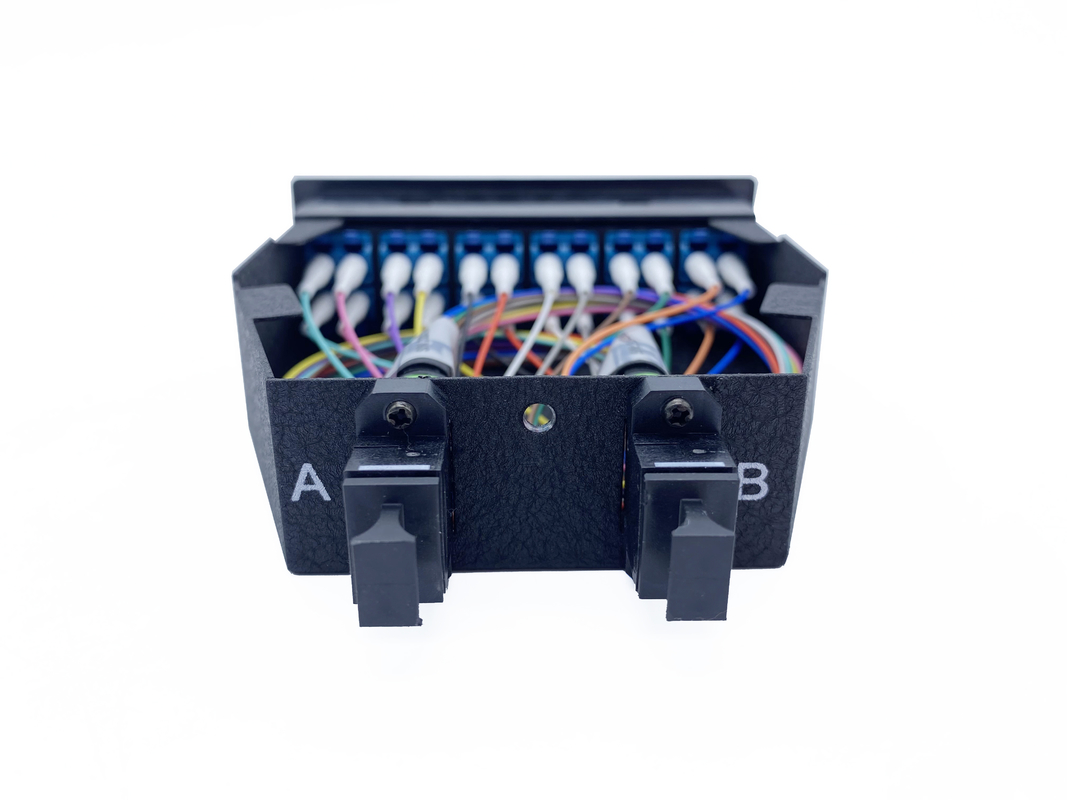

24Fiber MPO cassette use 2pcs MPO adapters A B, and in front of the adapter panel, there is  A 1-12, B 13-24 number mark;

Easy to operate and distinguish during on-site construction.

------------------------------------------------------------------------------------------------------------------------------------------

8 Fibers MPO Cassette Module G657A2 LSZH Hydra Cable Assembly APC 1

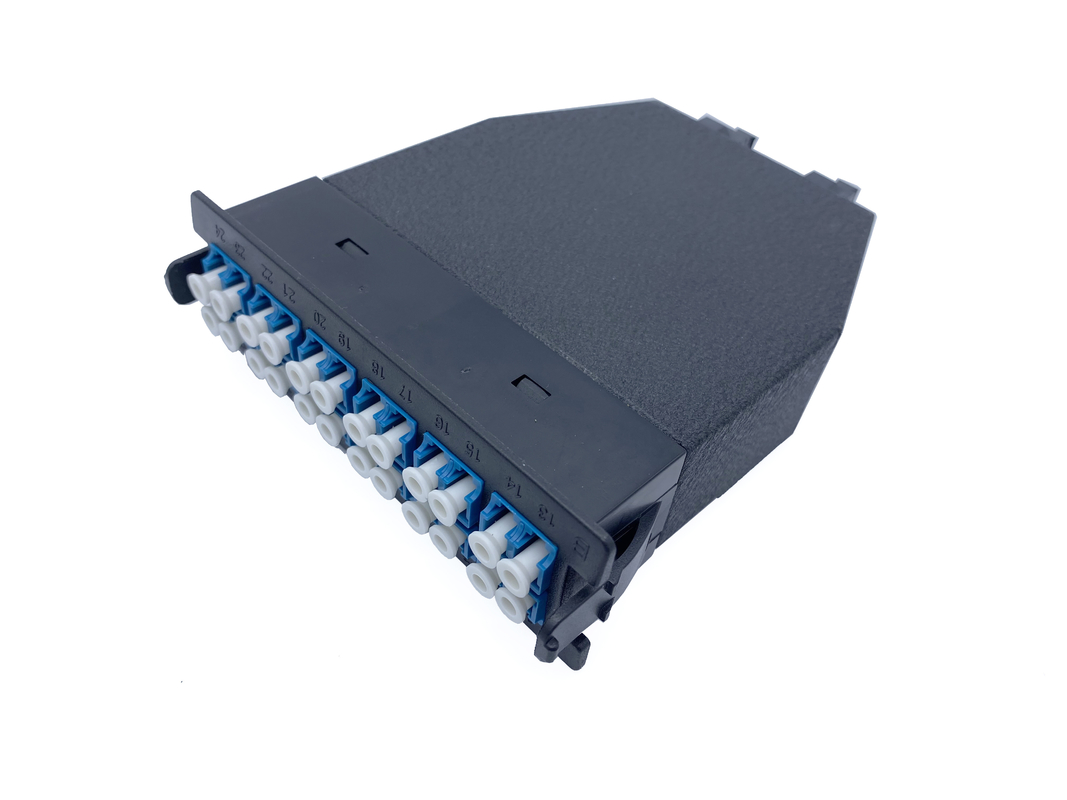

Top and bottom side is the same, can paste stickers of logo, part number, etc.

the cover is locked on bottom with 1*screw.

------------------------------------------------------------------------------------------------------------------------------------------

8 Fibers MPO Cassette Module G657A2 LSZH Hydra Cable Assembly APC 2

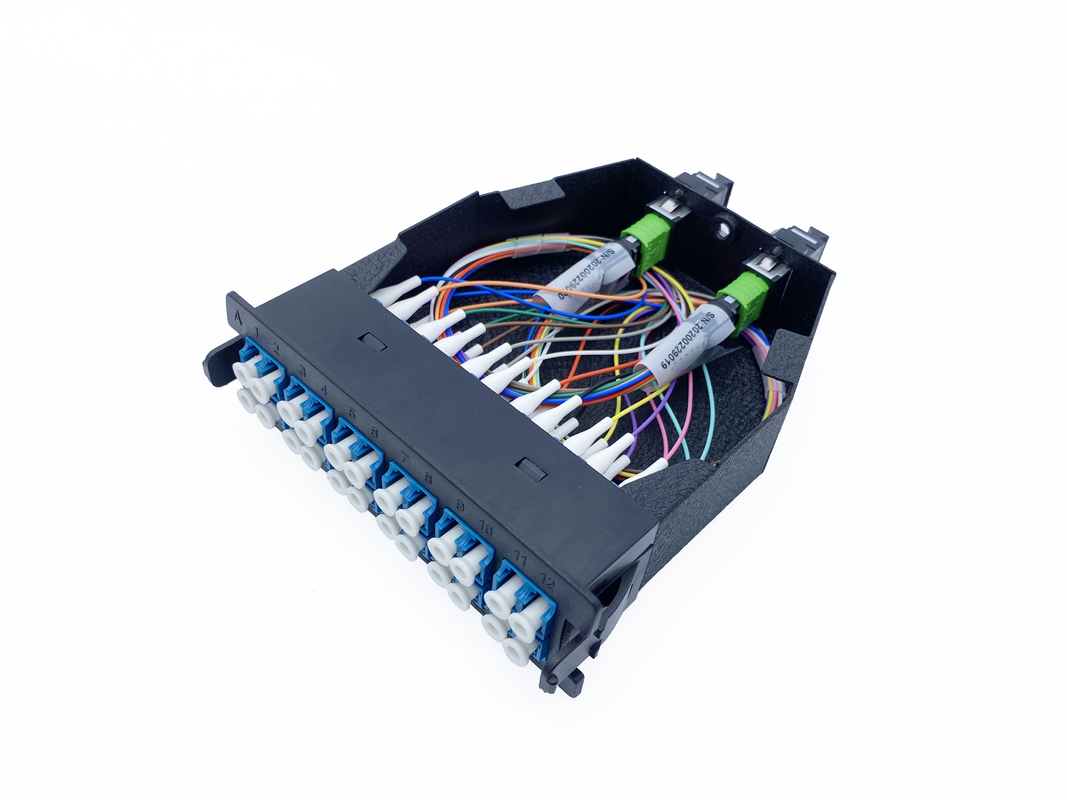

Fully configuration can be done in our factory with patch cord, adapters, etc.one-stop fiber optic suppliers, which save construction time and money.

------------------------------------------------------------------------------------------------------------------------------------------

8 Fibers MPO Cassette Module G657A2 LSZH Hydra Cable Assembly APC 3

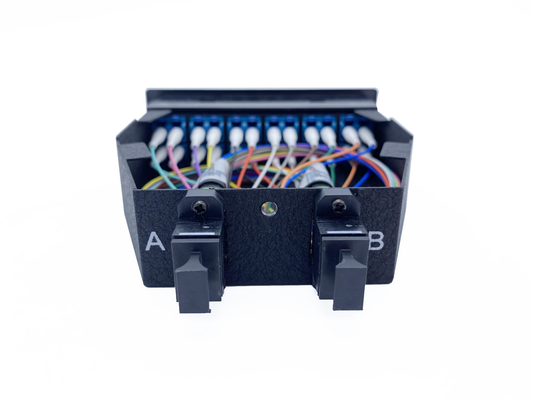

no need screws or other tools to install the modular on the patch panel, fast and easy to operate.

------------------------------------------------------------------------------------------------------------------------------------------

24 Fiber MPO cassette Application

  • Data Centre Infrastructure
  • Storage Area Network-Fiber Channel
  • Emerging 40 & 100Gps Protocols
  • Parallel optics
