| Brand Name: | YINGDA |
| Model Number: | MTPC-24F-P |
| MOQ: | 10 pcs |
| Price: | negotiable |
| Delivery Time: | 7days after payment |
| Payment Terms: | Western Union, T/T |

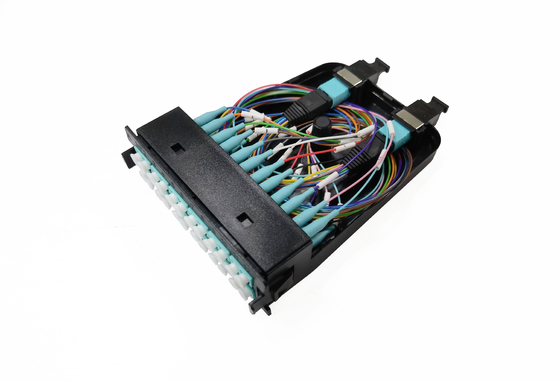

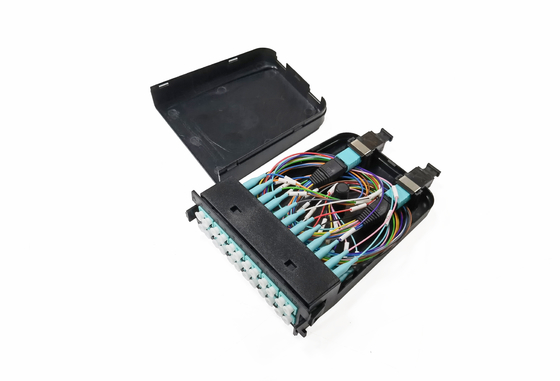

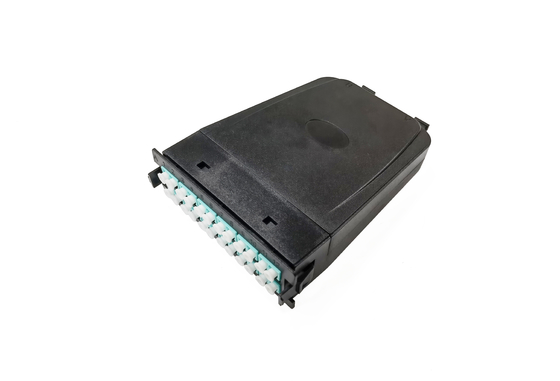

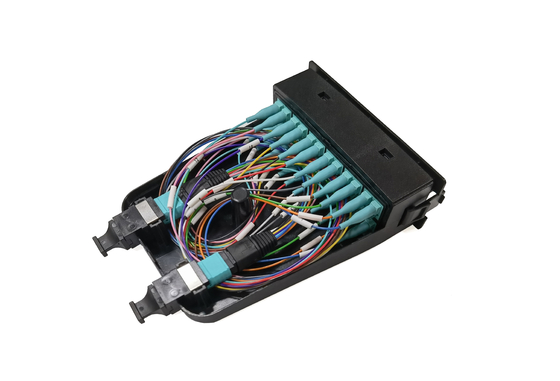

12 24 Fibers MTP MPO Fibra Optica Modular Cassette Plastic OM3 10G Aqua Male Guide Pin
MPO MTP Cassette Modules provide secure transition between MPO to LC SC direct connetion, they are sued to interconnect MPO backones with LC or SC patching.
Modular system allows for rapid deployment of high density data center infrastructure as well as improved trouble shooting and reconfiguration during moves, add and change, it can be mounted in 1u, 4u 19inch multi-slot chassis.
MPO MTP cassette contain factory controlled and tested mpo lc harness cables to deliver optical performance and reliability. Low loss MPO elite and LC SC premium version are offered featuring low insertion loss for demanding power budget high speed networks.
12Fiber MPO Connector Specification
|
Parameters |
Standard Fiber Cable Assemblies |
|
|
Fiber Type |
SM(G.652/G.657A) |
MM(OM1/OM2/OM3/OM4) |
|
Jacket Materials |
LSZH/OFNR/PVC |
|
|
Connector Type |
SC/LC/ST/LC/MU/MTRJ/MPO/E2000 |
|
|
Ferrule Materials |
Ceramic |
|
|
Testing Wavelengths |
1310±30/1550±30nm |
850±30/1300±30nm |
|
Insertion Losss(dB) |
≤ 0.3dB |
≤ 0.3dB |
|
Return Loss(dB) |
≥45dB(PC/UPC) |
≥35dB(PC/UPC) |
|
Exchangeability |
≤ 0.2dB |
|
|
Cable Assemblies |
Pigtail/Simplex/Duplex/Fan-out Patchcord |
|
|
Operating Temperature (° C) |
-10~ + 70 |
|
|
Storage Temperature (° C) |
-40 ~ +85 |
|
|
Package |
1unit/bag |
|
|
*All values specified are with connectors. |
||
Features
------------------------------------------------------------------------------------------------------------------------------------------
Front side middle can use stickers or silk print customer logo, part number, etc.
back with empty places to paste stickers too.
------------------------------------------------------------------------------------------------------------------------------------------
Fully configuration can be done in our factory with patch cord, adapters, etc.one-stop fiber optic suppliers, which save construction time and money.
------------------------------------------------------------------------------------------------------------------------------------------
no need screws or other tools to install the modular on the patch panel, fast and easy to operate.
------------------------------------------------------------------------------------------------------------------------------------------
24 Fiber MPO cassette Application
video
|
|
