GPON Wall Mounted Plastic 1X16 Splitter Fiber Optic Cable Termination Box NAP CTO

Name: GPON Wall Mounted Plastic 1X16 Splitter Fiber Optic Cable Termination Box NAP CTO
Brand: YINGDA TECHNOLOGY LIMITED
SKU: FDB0216G
Price: 9.00 USD
Availability: InStock

Brand Name:	yingda
Model Number:	FDB0216G
MOQ:	10pcs
Price:	1.0USD-18.6USD
Delivery Time:	7-15days
Payment Terms:	T/T, L/C, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO, CE, ROHS

Material:

PC+ABS

Waterproof:

IP65 Protection Level

Installation:

Wall Mount, Pole Mount

Splice Capacity:

4 Cores, Dual Fiber

Plc Splitter:

1 To 2 Splitter, 1*8 Micro Plc Splitter

Color:

Black

Packaging Details:

1pc/box

Highlight:

IK10 Fiber Optic Splitter Box

Waterproof Fiber Optic Splitter Box

IK10 splitter distribution box

Product Description

GPON Wall Mounted Plastic 1X16 Splitter Fiber Optic Cable Termination Box NAP CTO

FDB0216G is access terminal box for FTTH network. It connect feeder cable or distribution cable to subscriber’s drop cable with PLC splitter. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

Features

Total enclosed structure with key and buckles
High strength engineer plastic, wet-proof, water-proof, dust-proof, anti-aging, Resistance to chemical and U.V attack.
Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution,etc all in one.
Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adaptor installation, easy maintenance.
Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
Outdoor Wall mount or pole mount, IP65

Specification

Model	FDB0216G-A	FDB0216G-B
Dimension (ABC)	29221883mm (DE:80155m)
Max.Capacity	16 cores (single fiber)
Cable ports	2cable gland, 16out	1mid span, 16out
Cable diameter	In:Φ7-12mm, out:2*φ3mm	In:φ20mm; out:2*φ3mm
Splitter quantity	1x16 or 2pc 1x8 steel tube	1x16 or 2pc 1x8 LGX module
Adapter quantity	16SC	--
Color	Grey / black /white

Standard Accessory: expansion screws, key, nylon tie, sleeve, buffer tube, uncut ports, user manual

GPON Wall Mounted Plastic 1X16 Splitter Fiber Optic Cable Termination Box NAP CTO 0

Pack information

Net weight	Inner box	Quantity / carton box	Carton box size	Gross weight/carton box
1.5Kg	cm	10pcs	603451cm	17.5kg

GPON Wall Mounted Plastic 1X16 Splitter Fiber Optic Cable Termination Box NAP CTO 1

Product Details

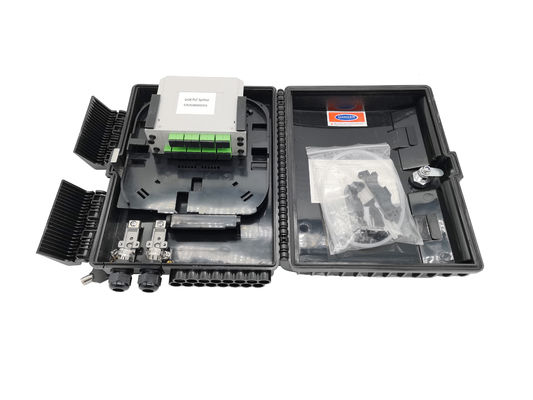

This fiber optic splitter box is a nap fiber access terminal box, the top cover can print customer logo, with laser mark. Before delivery, will stick a plastic film to protect the box. And the box is totally enclosed with key and brackets, the metal key is fixed with nylon tie on the brackets as pictures. Cable ports: 2in, 16out.

GPON Wall Mounted Plastic 1X16 Splitter Fiber Optic Cable Termination Box NAP CTO 2

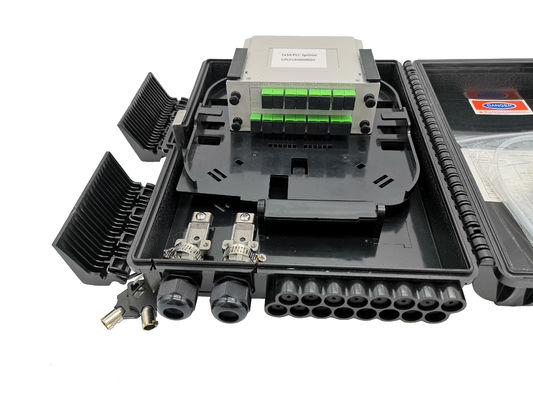

Internal design with LGX splitter modules, there is slots for 1x16 or 2pcs 1x8 splitter, and there is labels for on site construction.

Before delivery, will put the accessory bag in the box inside.

Splitter module is fix on the slots with rivets at both sides, maximum 1pc 1x16 plc splitter, or 2pcs 1x8 plc splitter.

GPON Wall Mounted Plastic 1X16 Splitter Fiber Optic Cable Termination Box NAP CTO 4
