GPON Wall Mounted Plastic 1X16 Splitter Fiber Optic Cable Termination Box NAP CTO

MOQ: 10pcs
Price: 1.0USD-18.6USD
Standard Packaging: 1pc/box
Delivery Period: 7-15days
Payment Method: T/T, L/C, Western Union
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
CHINA
Brand Name
yingda
Certification
ISO, CE, ROHS
Model Number
FDB0216G
Material:
PC+ABS
Waterproof:
IP65 Protection Level
Installation:
Wall Mount, Pole Mount
Splice Capacity:
4 Cores, Dual Fiber
Plc Splitter:
1 To 2 Splitter, 1*8 Micro Plc Splitter
Color:
Black
Highlight:

IK10 Fiber Optic Splitter Box

,

Waterproof Fiber Optic Splitter Box

,

IK10 splitter distribution box

Product Description

GPON Wall Mounted Plastic 1X16 Splitter Fiber Optic Cable Termination Box NAP CTO



FDB0216G is access terminal box for FTTH network. It connect feeder cable or distribution cable to subscriber’s drop cable with PLC splitter. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.



Features

  • Total enclosed structure with key and buckles
  • High strength engineer plastic, wet-proof, water-proof, dust-proof, anti-aging, Resistance to chemical and U.V attack.
  • Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution,etc all in one.
  • Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adaptor installation, easy maintenance.
  • Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
  • Outdoor Wall mount or pole mount, IP65

Specification

Model FDB0216G-A FDB0216G-B
Dimension (A*B*C) 292*218*83mm (D*E:80*155m)
Max.Capacity 16 cores (single fiber)
Cable ports 2cable gland, 16out 1mid span, 16out
Cable diameter In:Φ7-12mm, out:2*φ3mm In:φ20mm; out:2*φ3mm
Splitter quantity 1x16 or 2pc 1x8 steel tube 1x16 or 2pc 1x8 LGX module
Adapter quantity 16SC --
Color Grey / black /white



Standard Accessory: expansion screws, key, nylon tie, sleeve, buffer tube, uncut ports, user manual

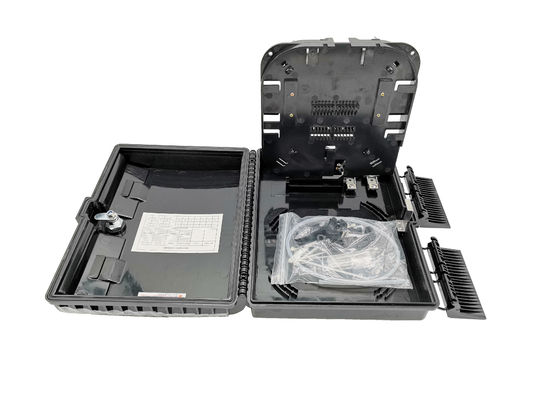

GPON Wall Mounted Plastic 1X16 Splitter Fiber Optic Cable Termination Box NAP CTO 0



Pack information

Net weight Inner box Quantity / carton box Carton box size Gross weight/carton box
1.5Kg cm 10pcs 60*34*51cm 17.5kg



GPON Wall Mounted Plastic 1X16 Splitter Fiber Optic Cable Termination Box NAP CTO 1





Product Details

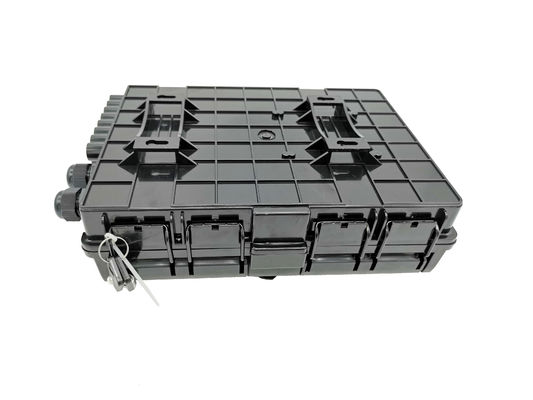

This fiber optic splitter box is a nap fiber access terminal box, the top cover can print customer logo, with laser mark. Before delivery, will stick a plastic film to protect the box. And the box is totally enclosed with key and brackets, the metal key is fixed with nylon tie on the brackets as pictures. Cable ports: 2in, 16out.



GPON Wall Mounted Plastic 1X16 Splitter Fiber Optic Cable Termination Box NAP CTO 2

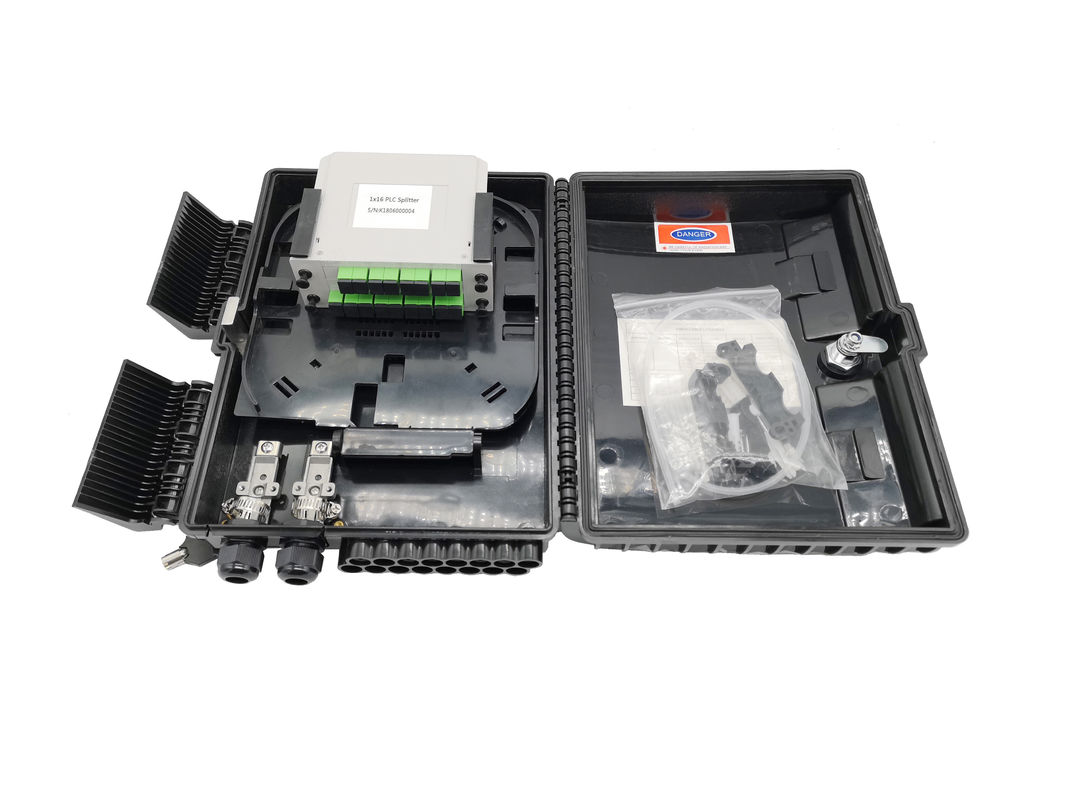

Internal design with LGX splitter modules, there is slots for 1x16 or 2pcs 1x8 splitter, and there is labels for on site construction.

Before delivery, will put the accessory bag in the box inside.

GPON Wall Mounted Plastic 1X16 Splitter Fiber Optic Cable Termination Box NAP CTO 3

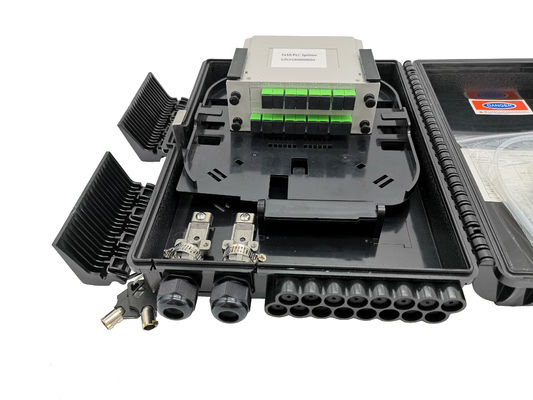

Splitter module is fix on the slots with rivets at both sides, maximum 1pc 1x16 plc splitter, or 2pcs 1x8 plc splitter.

GPON Wall Mounted Plastic 1X16 Splitter Fiber Optic Cable Termination Box NAP CTO 4
