Fiber Optic Splitter Box
Created with Pixso. Pole Mount Air Unbalanced NAP 8 out SC/APC CTO 1X8 1X2 Splitter Fiber Optic Box Mini SC

Pole Mount Air Unbalanced NAP 8 out SC/APC CTO 1X8 1X2 Splitter Fiber Optic Box Mini SC

Brand Name: yingda
Model Number: CTO-10A
MOQ: 10pcs
Price: 1.0USD-18.6USD
Delivery Time: 7-15days
Payment Terms: T/T, L/C, Western Union
Detail Information
Place of Origin:
china
Certification:
ISO, CE, ROHS
Features:
Fiber Optic Splitter Box
Material:
PC+ABS
Box Type:
Fiber Optic NAP Box
Waterproof:
IP65 Outdoor
Installation:
Wall Mount, Pole Mount
Cable Ports:
10 Pcs Waterproof Madapters
Box Dimension:
210*204*88 Mm
Max Capacity:
4 Cores Dual Fiber
PLC Splitter:
1x2 1x8 Mini Splitter
Color:
Black
Packaging Details:
1pc/box
Highlight:

NAP Fiber Optic Splitter Box

,

CTO Fiber Optic Splitter Box

,

Optical Splitter Box 1X8

Product Description

Pole Mount Air Unbalanced NAP 8 out SC/APC CTO 1X8 1X2 Splitter Fiber Optic Box Mini SC



CTO-10A fiber access termination box is able to hold up to 8 subscribers. It is used as a termination point for 1 x ISP cable to connect with 1 x OSP cable and 8 x drop cable in FTTx network system. It integrates fiber splicing, splitting, storage and cable management in one solid protection box.



Features

  • Mini size, light weight, total enclosed with 6pcs screws on bottom plate;
  • High strength engineer plastic, with strength strips, wet-proof, water-proof, dust-proof, anti-aging;
  • Outdoor wall mount, pole mounting, protection level up to IP67;
  • Compact design integrates distribution, splicing, splitting 3functions all in one box;
  • PLC splitter, pigtails are running through their own paths without disturbing each other, easy maintenance;
  • 2 layers splitting design, 1pcs of 1:2 PLC splitter output to be pre-spliced with 1pcs of 1:8 PLC splitter input;
  • Adapters cap color can be customized to distinguish input output.

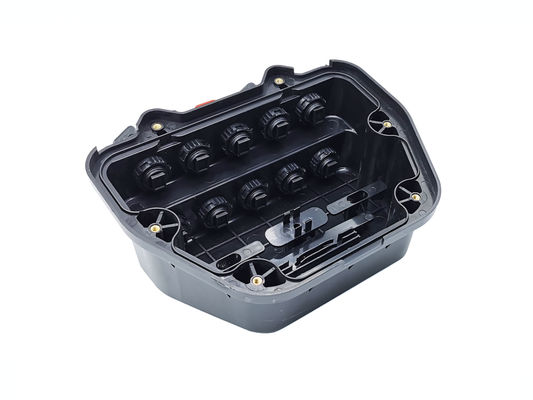

Pole Mount Air Unbalanced NAP 8 out SC/APC CTO 1X8 1X2 Splitter Fiber Optic Box Mini SC 0

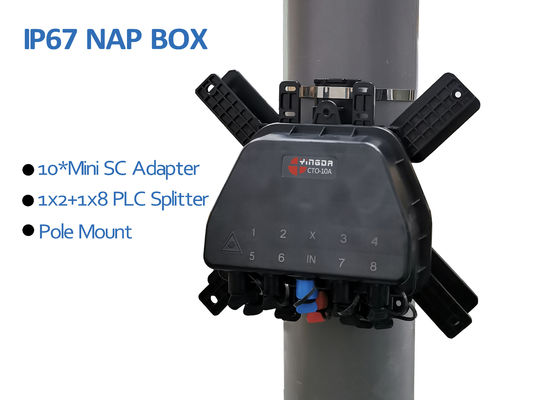

Pole Mount Air Unbalanced NAP 8 out SC/APC CTO 1X8 1X2 Splitter Fiber Optic Box Mini SC 1

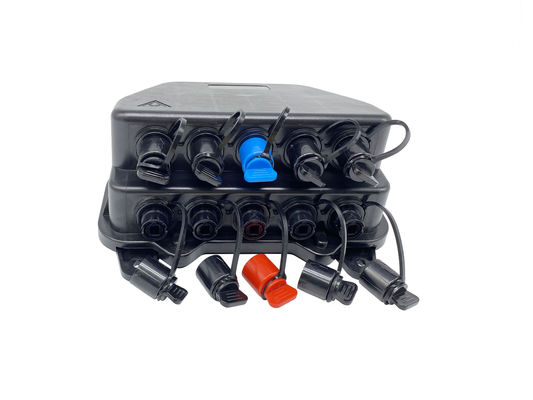

Pole Mount Air Unbalanced NAP 8 out SC/APC CTO 1X8 1X2 Splitter Fiber Optic Box Mini SC 2



Specification

Model CTO-10A
Dimension (A*B*C) /mm 210*204*88
Max.Capacity 4 cores (dual fiber)
Cable exit 10 pcs Mini SC reinforced adapters
Splitter quantity

1x2 mini splitter+1X8 mini splitter

(1output of 1x2 splice with input of 1x8)

Waterproof grade IP67
Material PC+ABS
Color Black
Impact grade IK10



Installation method

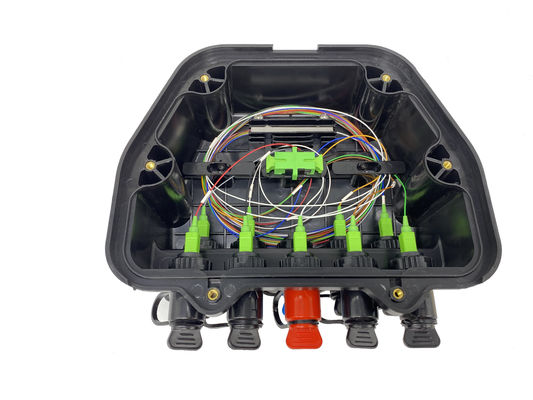

Pole Mount Air Unbalanced NAP 8 out SC/APC CTO 1X8 1X2 Splitter Fiber Optic Box Mini SC 3



Application:

Pole Mount Air Unbalanced NAP 8 out SC/APC CTO 1X8 1X2 Splitter Fiber Optic Box Mini SC 4
