Upc Apc FTTH 2*3mm Fiber Optic Stripping Tool Steel Carbon Steel Green

Place of Origin CHINA
Brand Name yingda
Certification ISO
Model Number YDCS-23
Minimum Order Quantity 1pc
Price negotiable
Packaging Details 1pc/individual package
Delivery Time 3days
Payment Terms Western Union, T/T, L/C, MoneyGram
Supply Ability 10000pcs/month
Product Details
Fiber Count 1core, 2core Fiber Type SM, MM
Material Carbon Steel Application Fiber Optic Ftth Network
Length 115mm Weight 0.17kg
OEM Accept Fiber Mode Upc Apc
Feature Strip Cable Jacket Sheath ,and Steel Strength Member
High Light

2*3mm Fiber Optic Stripping Tool

,

FTTH Fiber Optic Stripping Tool

,

FTTH fiber optic cable stripper

Leave a Message
Product Description

Upc Apc FTTH 2*3mm Fiber Optic Stripping Tool Steel Carbon Steel Green



FTTH Figure-8 2*3mm Fiber Optical Drop Cable Stripper Steel Carbon Steel Green



The stripper is a professional FTTH Optical Fiber to the home tool, which is specially used for the stripper optical cable. It has an improved structure, simple operation, flat incision and no damage to the optical fiber,



It is an indispensable tool for stripping sheath and strength member. It has the characteristics of small volume, light weight and easy to carry.

Upc Apc FTTH 2*3mm Fiber Optic Stripping Tool Steel Carbon Steel Green 0

Technical Parameter

ITEM Drop cable stripper
Model YDCS-23
Fiber count 1core, 2core
Applicable cable 2.0*3.0mm drop cable, 2mm / 3mm indoor cable
Fiber coating diameter Φ250um & φ900um
Fiber cladding diameter 125um
Strength member wire FRP / steel wire
Body Material carbon steel
Net weight 0.17kg


Features

  1. It does not damage the optical fiber, can cut horizontally or longitudinally.
  2. Light weight, small volume and simple operation and carry with.
  3. There are two straight blades in the transverse direction and one circular blade in the longitudinal direction.
  4. It is customized to strip1-core,2-core drop cable to ensure that the optical fiber is not damaged.
  5. Ergonomic anti-skid handle, made of PVC, is comfortable to grasp and labor-saving in crimping.
  6. It can not only cut off the out sheath, but also the plastic or metal reinforced core at the same time.
  7. Carbon steel body, good hardness, not easy to rust, firm and deformation free, durable and long service life.
  8. Sharp jaws, fast cutting speed.
  9. The latest upgraded return spring makes fiber stripping easier.
  10. Clear stripping scale, fast to fix length and cut, save time and material.

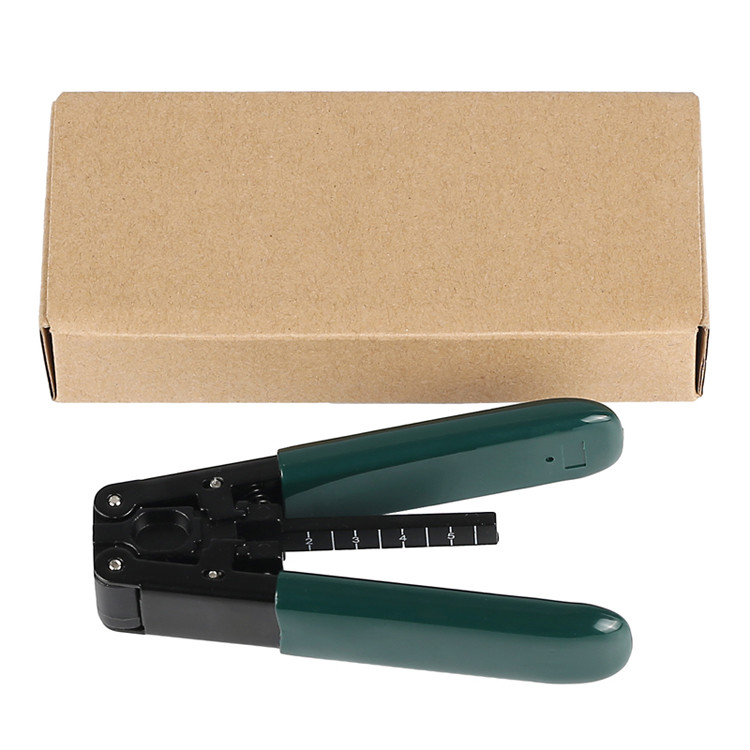

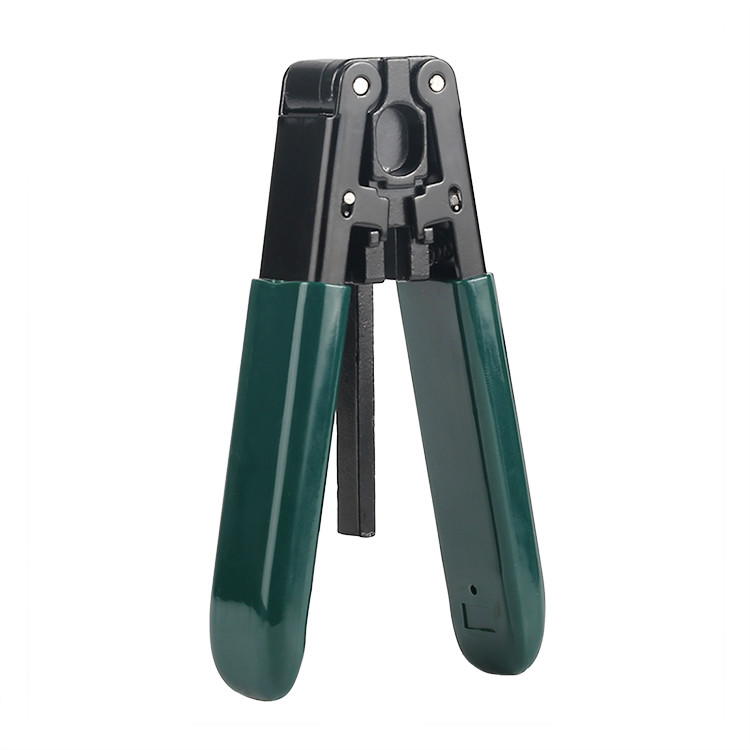

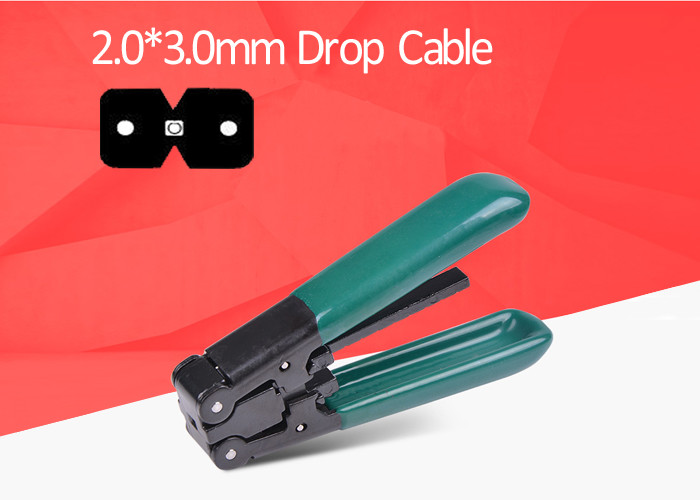

Upc Apc FTTH 2*3mm Fiber Optic Stripping Tool Steel Carbon Steel Green 1Upc Apc FTTH 2*3mm Fiber Optic Stripping Tool Steel Carbon Steel Green 2Upc Apc FTTH 2*3mm Fiber Optic Stripping Tool Steel Carbon Steel Green 3

Application

  • network cabling, optical cable construction, optical fiber to the home

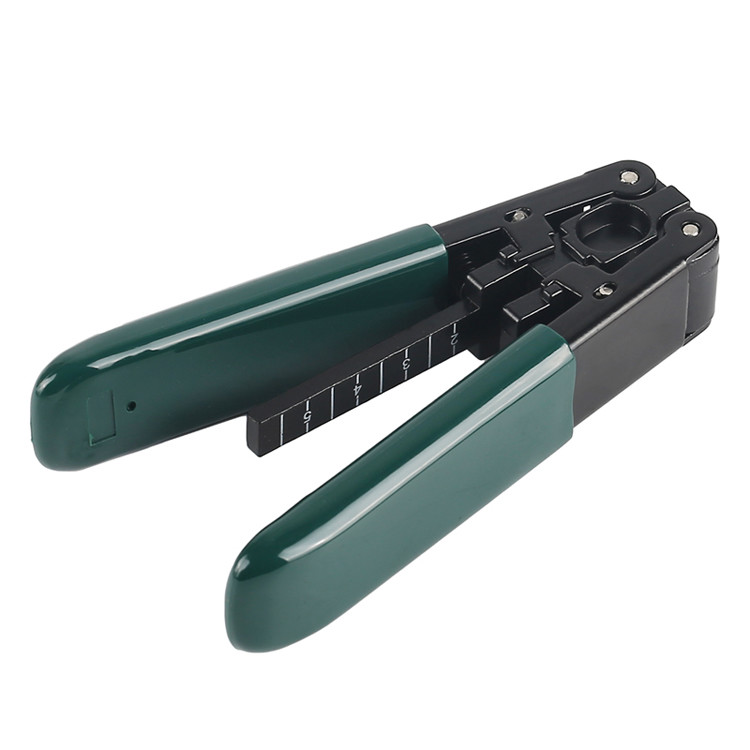

Upc Apc FTTH 2*3mm Fiber Optic Stripping Tool Steel Carbon Steel Green 4

Order information -- YDCS-CT

YDCS - Cable type=CT

YD=yingda

CS=cable stripper



21=2.1*1.6mm

23=2.0*3.0mm

01=kelvar scissor

02=CFS-2 250um

03=CFS-3 0.9mm+250um

For example:

YDCS-21 -- cable stripper for 2.1*1.6mm cable



keyword: drop cable stripper, fiber optic stripper, drop cable
