G65A72 LSZH 24 Cores CTO Fiber Optic Splitter Box

Place of Origin CHINA
Brand Name YINGDA
Certification ISO
Model Number FDB0224M-24SA-PA
Minimum Order Quantity 100CPS
Price Negotiable
Packaging Details 1pc/box, 10pcs/carton box
Delivery Time 5-8days
Payment Terms L/C, T/T, Western Union
Supply Ability 15000pcs per month
Product Details
Material ABS+PC Block Material HDPE
Color Grey Or Black Max Capacity 96cores
Product Name Fiber Optic Terminal Box, Telecom 1x8 CTO Ftth Fiber Distribution Box Application FTTH FTTB FTTX Network
Type Outdoor GPON 24 Fiber Optic Splitter Nap Terminal Box Fiber Type G657A Corning Single Mode SM
Weight 1.75kg Cable Diameter 12.5mm , 2x3mm Or 2x5mm Drop Cable
Cable Port 1mid Span Access, 2 Cable Glands, 24outlets For Flat Drop Cable
High Light

CTO Fiber Optic Splitter Box

,

G65A72 Fiber Splitter Box

,

FDB0224M-A

Leave a Message
Product Description

G65A72 LSZH 24 Cores CTO Fiber Optic Splitter Box

24 Cores CTO FTTH Splitter Plastic Optical Fiber Terminal Box SC/APC Couplers Pigtails Corning G65A72 LSZH


FDB0224M is access terminal box for FTTH network. It connect feeder cable or distribution cable to subscriber’s drop cable with PLC splitter. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

G65A72 LSZH 24 Cores CTO Fiber Optic Splitter Box 0
Specification

ModelFDB0224M-AFDB0224M-B
Dimension(A*B*C)345*220*95mm
Max.Capacity48cores=4*12F (single fiber)
Cable ports1mid span, 2 cable glands, 24out
Cable diameter1mid span:Φ14.5mm, 1cable gland:Φ7-12mm, 24 out:2*Φ3mm
Splitter quantity1x16 or 3pc 1x8 steel tube1x16 or 2pc 1x8 LGX module
Adapter quantity24SC--
ColorGrey / black


Features

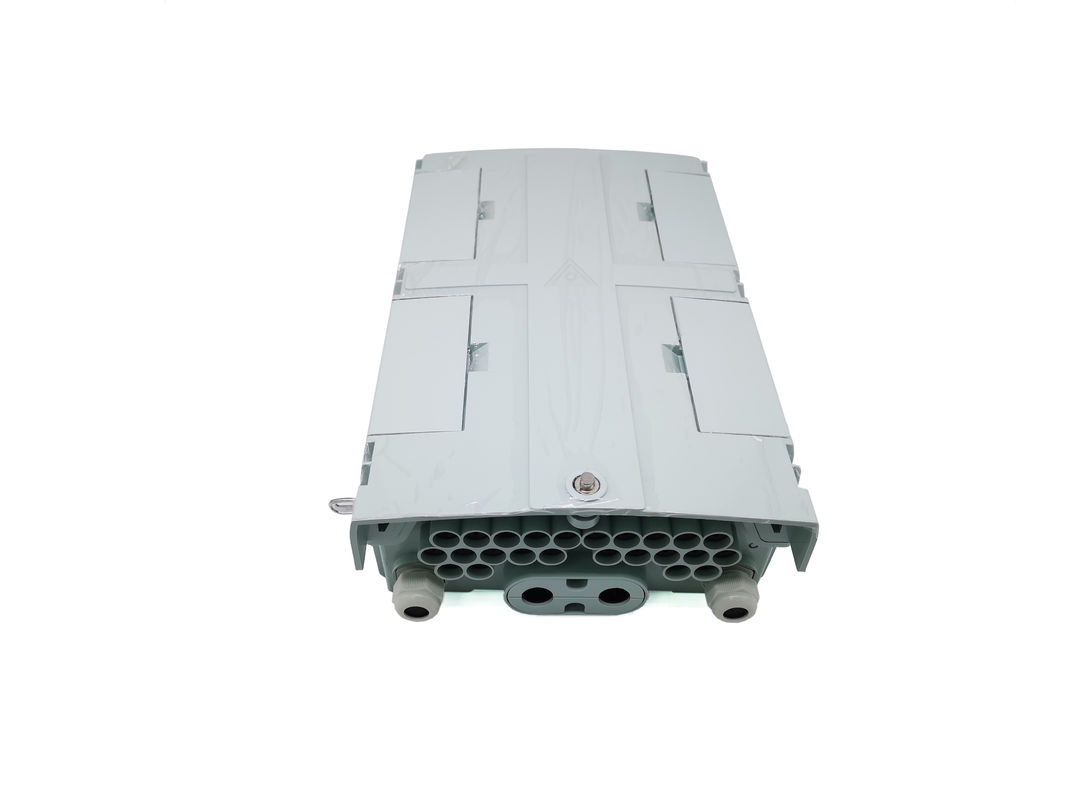

  • Total enclosed with key and 4buckles, light weight, compact size;
  • High strength engineer plastic, wet-proof/water-proof/dust-proof, anti-aging, resistance to chemical and U.V attack;
  • the box is total enclosed when delivery, the master key is fixed on side of the buckles with nylon tie.

G65A72 LSZH 24 Cores CTO Fiber Optic Splitter Box 1


  • There is figure lable for on-site construction installation, and laser mark stickers on the internal for reminding.
  • The accessory bag will be put inside of the box or in the inner box. But the mounting sheets and pole rings are put in the inner box.When open it, please check.

G65A72 LSZH 24 Cores CTO Fiber Optic Splitter Box 2

  • Clamp for feeder cable and drop cable, mix fiber splicing/ fixation/storage/distribution in one;
  • Cable, pigtails are running through own path without disturbing each other;

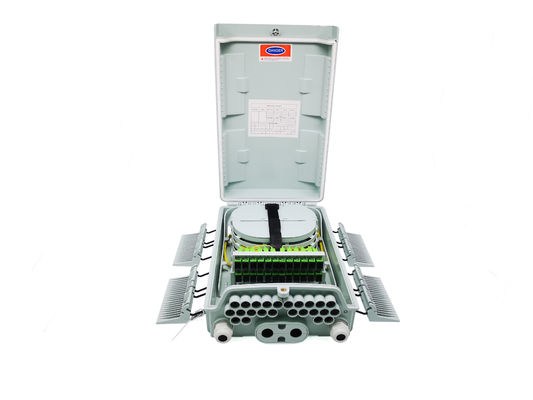

  • Adapter panel max can be 24SC, and 4trays fusion 48cores in total, each tray have 1x8 steel tube fix slot

G65A72 LSZH 24 Cores CTO Fiber Optic Splitter Box 3

  • Feeder cable can be placed by expression port, easy for maintenance and installation, there is metal cable clamps and plastic clamps inside of the box to fix the cable distribution.

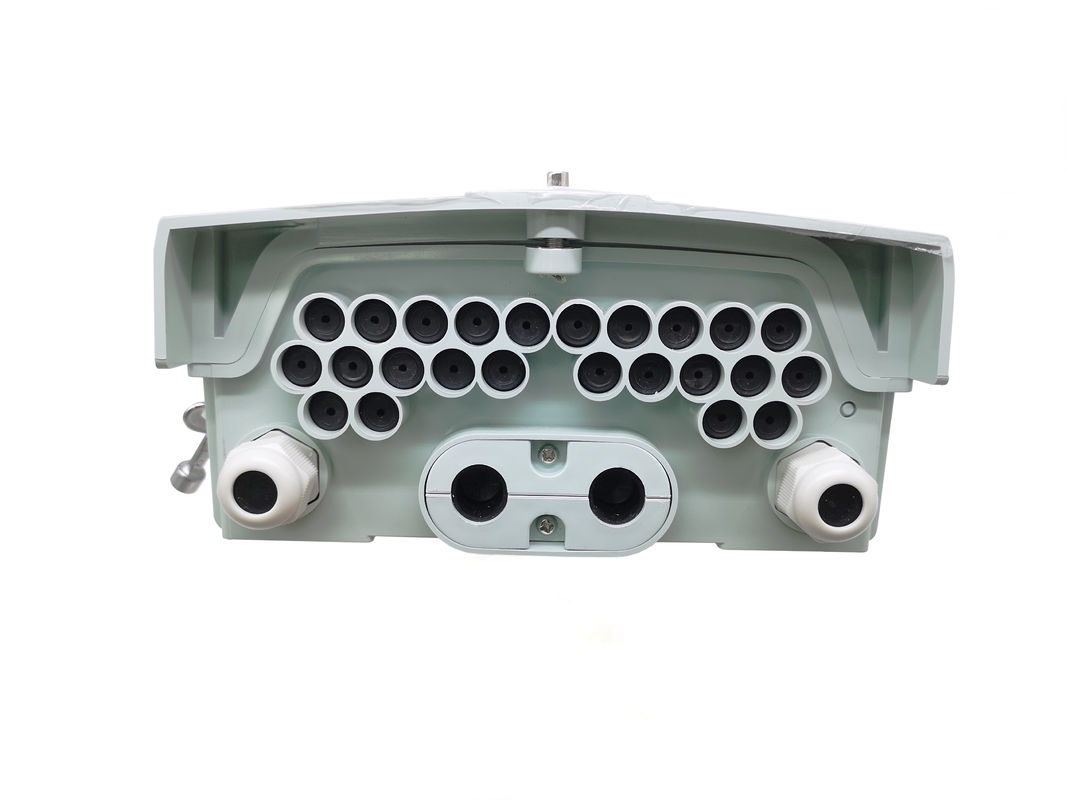

  • cable entry is mid span access or 2cable glands diameter 12.5mm, cable exit with 2x3mm or 2x5mm flat drop cable in and out.
  • Outdoor Wall mount or pole mount application, IP65 protection class with waterproof rubber seal ring on the cover.

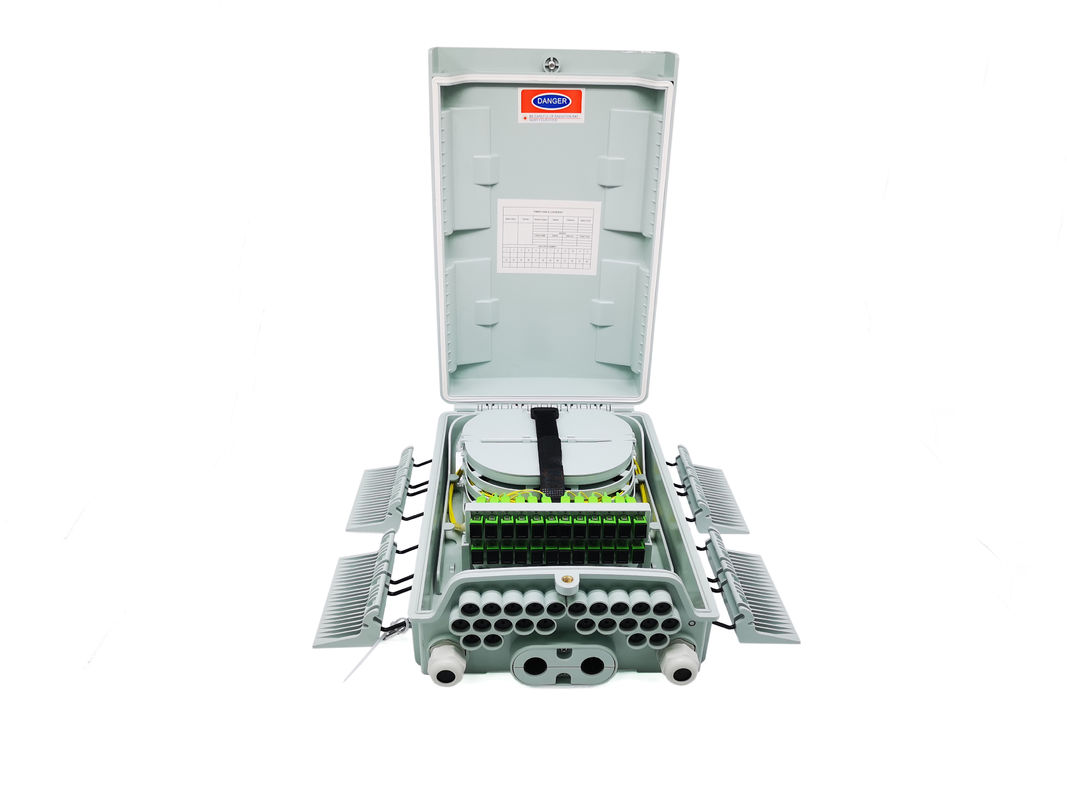

  • Box bottom with adapter  holder max. 24SC simplex adapters, and with special area for splitter input connector fix and splitter tube fix slots.

G65A72 LSZH 24 Cores CTO Fiber Optic Splitter Box 4

Pack information



Net weightInner boxQuantity / carton boxCarton box sizeGross weight/carton box
1.75Kgcm10 pcs46*38*59 cm21.03 kg
