G65A71 LSZH FC APC Single Mode 1x2 Fiber Optic Plc Splitter
  • name
  • name
  • name
  • name

G65A71 LSZH FC APC Single Mode 1x2 Fiber Optic Plc Splitter

MOQ: 10pcs
Price: 1.1USD-4.58USD
Standard Packaging: 1piece/box, 100pcs/carton box
Delivery Period: 7days
Payment Method: L/C,T/T,Western Union
Supply Capacity: 20000pcs per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
yingda
Certification
ISO
Model Number
YDPLC-AM-102-FAFA-1515
Material:
Plastic
Fiber Mode:
Singlemode
Fiber Length:
Input:1.5meter, Output:1.5meter
Connector Type:
FC/APC
Application:
PON, FTTH, ODN Network
Installation:
Fiber Optic Rack Mount Patch Pane, Splice Closure, Or Cabinet
ABS Box Size:
100*80*18mm
Pigtails Jacket:
LSZH
Fiber Color:
Output: Blue/Orange, Input: Original
Highlight:

1x2 Fiber Optic Plc Splitter

,

G65A71 Fiber Plc Splitter

,

LSZH Fiber Optic Plc Splitter

Product Description

G657A1 LSZH FC APC Single Mode 1x2 Fiber Optic Plc Splitter


1x2 ABS PLC Optical Splitter Module FC/APC Single mode G657A1 LSZH 2.0mm Yellow Blister Pack

1X2 ABS SPLITTER is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.
ABS PLC splitter is most commonly used in the PON networks. It provides the complete protection for inner optical components and cable, as well as designed for the convenient and reliable installation, but its volume is relatively large. It's mainly used for various connection and distribution products (outdoor fiber distribution box) or network cabinets.

Yingda can offer 1x2 1x4, 1x8, 1x16, 1x32 1x64 split ratio, and package be mini module, ABS module, LGX modular, rack type, or closure type of optical plc splitters on different application.

G65A71 LSZH FC APC Single Mode 1x2 Fiber Optic Plc Splitter 0



Technical specification


Optical Performance Unit Specification
Insertion Loss (without Connector) MAX dB 3.9
Insertion Loss of Connector MAX dB 0.1
Insertion Loss (with Connector) MAX dB 4.1
Uniformity Loss MAX dB 0.6
Polarization Dependent Loss MAX dB 0.3
Wavelength Bandwidth MIN nm 1260~1650
Return Loss (All Port) MIN dB 50
Directivity MIN dB 55
Operating Temperature oC dB -40~85
Labelling (Label Material & Dimension) - 75*50(mm)
Serialization (Laser Marking or others) - Label
PLC Splitter Packing - ABS Plastic Box
Package Diemension - 10*80*100(mm)
Fiber Type - G657A1
Fiber Color - Input: Original
Output: Original
Tube Type - Φ2.0, PVC
Tube Color - Input: Yellow
Output: Yellow
Connector Type - Input: FC/APC
Output: FC/APC
Individual Test Data Sheet Format Hardcopy 1310, 1490, 1550nm ILUFPDL



Product Details

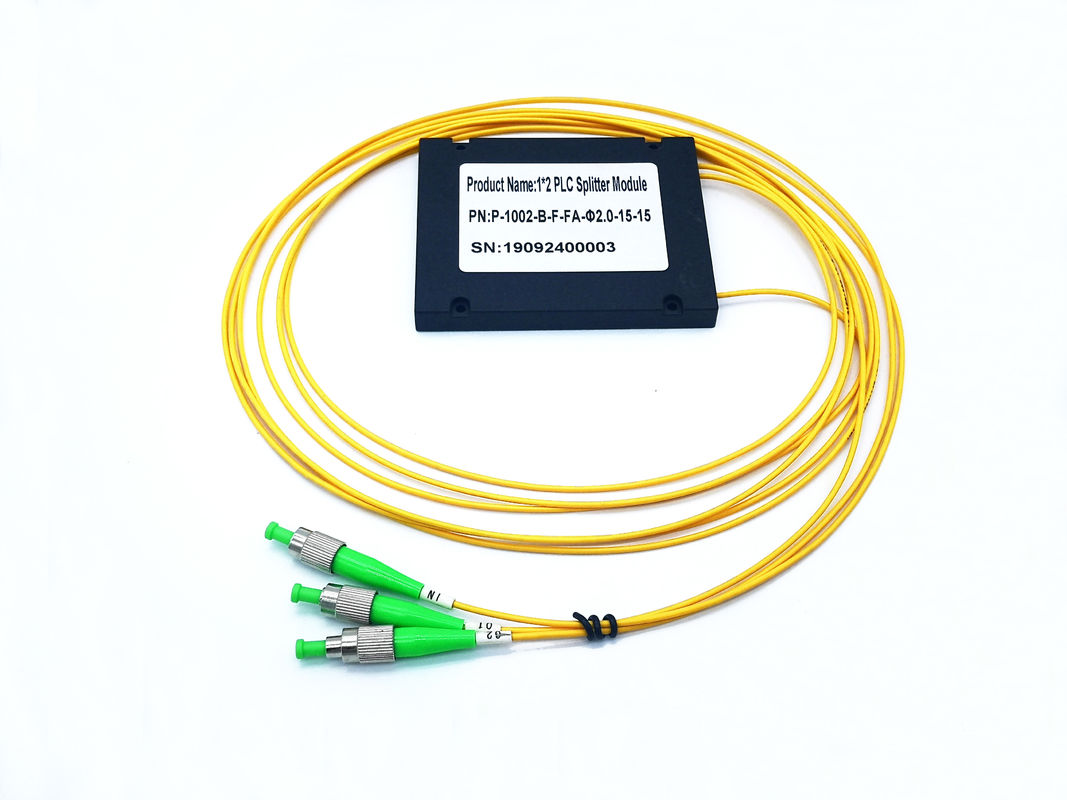

The box itself is printed with IN, OUT and number 1345678, which is convenient to identify the inlet and outlet and optical fiber classification, maintenance and luminous test.
G65A71 LSZH FC APC Single Mode 1x2 Fiber Optic Plc Splitter 1

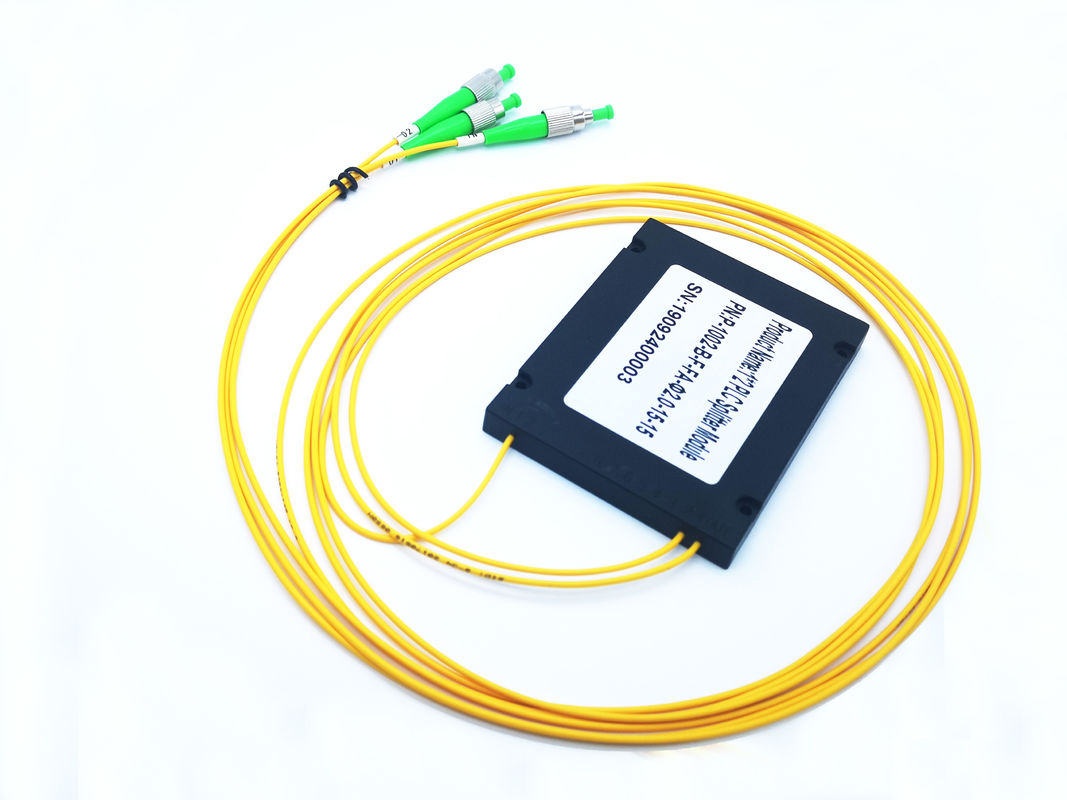

There is a white indication ring at the inlet and outlet of the optical cable, which is fast and easy to find the fiber that we need.

G65A71 LSZH FC APC Single Mode 1x2 Fiber Optic Plc Splitter 2

We can make custome LOGO oem stickers  here, or with our netural labels as below, include product name, part number, and serial number, etc.
If customer have special request, please let us know.

G65A71 LSZH FC APC Single Mode 1x2 Fiber Optic Plc Splitter 3



Package information:

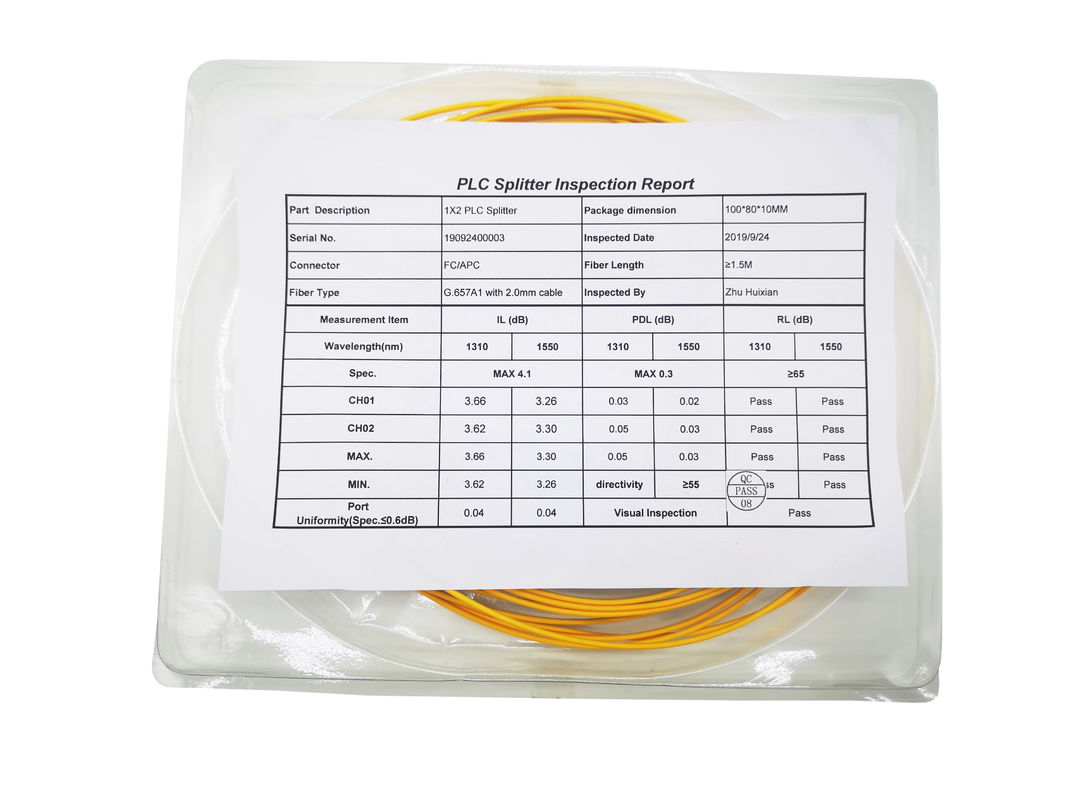

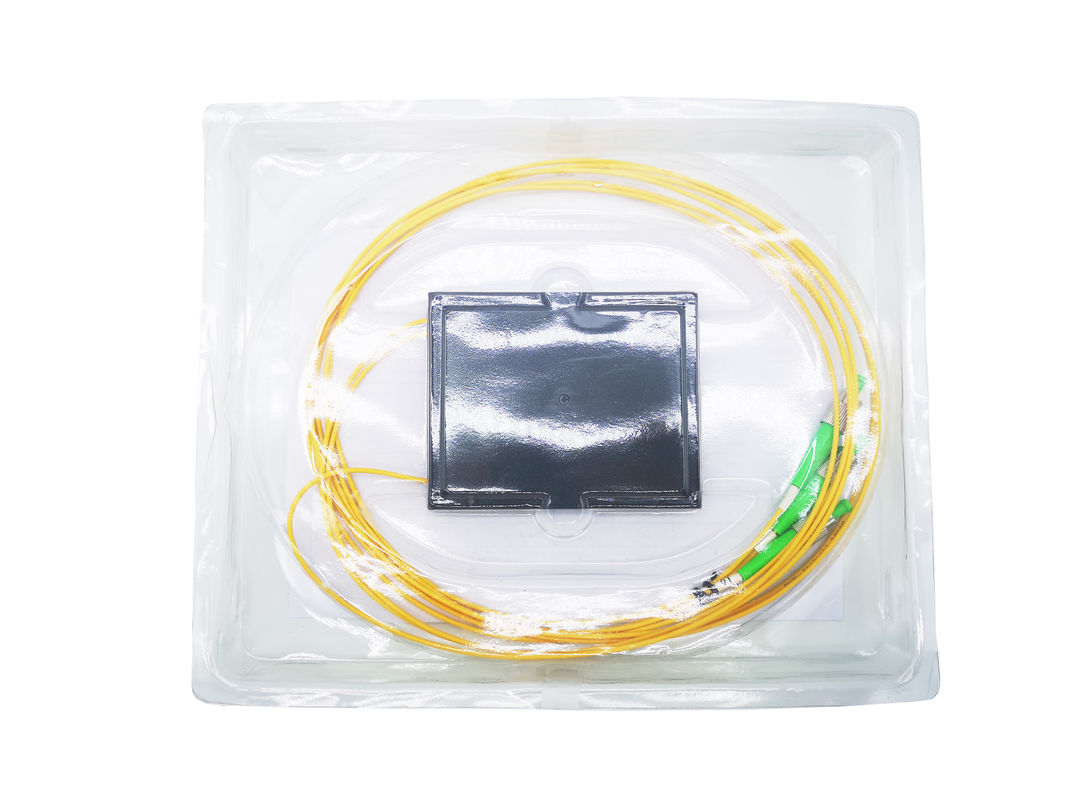

TYPE 1: BLISTER BOX-- 1PC individual package, with test report in each box, this will ease the on-site construction, only need to open the cover and take the splitter out, fast and simple, also good protection for the splitters, nice view.
G65A71 LSZH FC APC Single Mode 1x2 Fiber Optic Plc Splitter 4
TYPE 2: Cardboard Box-- several quantity in a cardboard box, but with foam at top and bottom, and left right with slots on foam to protect the splitter connectors in place, good protection, dust proof, with test report in each box.

G65A71 LSZH FC APC Single Mode 1x2 Fiber Optic Plc Splitter 5

Applications:

  • Fiber to The Point (FTTX)
  • Fiber to The Home (FTTH)
  • Passive Optical Networks (PON)
  • Gigabit Passive Optical Networks (GPON)
  • Local Area Networks (LAN)
  • Cable Television (CATV)
  • Test Equipment

G65A71 LSZH FC APC Single Mode 1x2 Fiber Optic Plc Splitter 6

Features:

  • Low insertion loss
  • Low Polarization Dependent Loss
  • Excellent Environmental Stability
  • Excellent Mechanical Stability
  • Telcordia GR-1221 and GR-1209

Order information


Model Split ratio Box size / mm Connectors
YDPLC-AM-102 1X2 100*80*10 SC/UPC=SU
YDPLC-AM-104 1X4 100*80*10 SC/APC=SA
YDPLC-AM-108 1X8 100*80*10 FC/UPC=FU
YDPLC-AM-116 1X16 120*80*18 FC/APC=FA
YDPLC-AM-132 1X32 120*80*18 LC/UPC=LU
YDPLC-AM-164 1X64 100*40*6 LC/APC=LA
YDPLC-AM-202 2X2 100*80*10 ...
YDPLC-AM-... ... ... ...
