Fiber Optic Splitter Box
Created with Pixso. IP65 1x8 OTB ODB FDB Mid Span FTTH Fiber Optic Splitter Box

IP65 1x8 OTB ODB FDB Mid Span FTTH Fiber Optic Splitter Box

Brand Name: YINGDA
Model Number: FDB0216L
MOQ: 10pcs
Price: negotiable
Delivery Time: 7-10days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Detail Information
Place of Origin:
china
Certification:
lSO
Material:
ABS+PC
Color:
Grey
Dimension:
327*258*88mm
Cable Entry:
3 Mid Span Express Port (uncut Ports)
Cable Exit:
16 Pcs Drop Cable 2x5mm
Splice Tray:
1tray 24cores
Box Type:
Fiber Splice Box
Cable Entry Diameter:
16 Mm
Adapter Quantity:
16 Pcs SC/upc Or SC/APC
Waterproof Grade:
IP65
Packaging Details:
1pc/box, 10pcs / master box
Supply Ability:
10k pices per month
Highlight:

Fiber Optic 1x8 Splitter Box

,

OTB Fiber Optic Splitter Box

,

FDB Fiber Optic Splitter Box

Product Description

IP65 1x8 OTB ODB FDB Mid Span FTTH Fiber Optic Splitter Box



1x8 Splitter OTB ODB FDB Mid Span FTTH Fiber Optic Termination Box SC Connectors Grey IP65





FDB0216L is access terminal box for FTTH network. It connect feeder cable or distribution cable to subscriber’s drop cable with PLC splitter. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.



Features

  • Total enclosed structure with key and buckles
  • High strength engineer plastic, wet-proof, water-proof, dust-proof, anti-aging, Resistance to chemical and U.V attack.
  • Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution,etc all in one.
  • Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adaptor installation, easy maintenance.
  • Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
  • Outdoor Wall mount or pole mount, IP65



Specification

Model FDB0216L
Dimension (AxBxC) 327*258*88mm, D*E /F*G(mm):150.5*130/312*230mm
Max.Capacity 16 cores (single fiber)
Cable ports 3mid span, 16out
Cable diameter In:φ16mm; out:2*φ3mm
Splitter quantity 1x16 or 2pc 1x8 steel tube PLC splitter
Adapter quantity 16 SC/UPC  or SC/APC
Color Grey / black



Application

  • Wall-mounted, Pole-mounted Installation
  • Suitable for ftth pre-connectorized drop cable with SC/LC connectors

Product details:

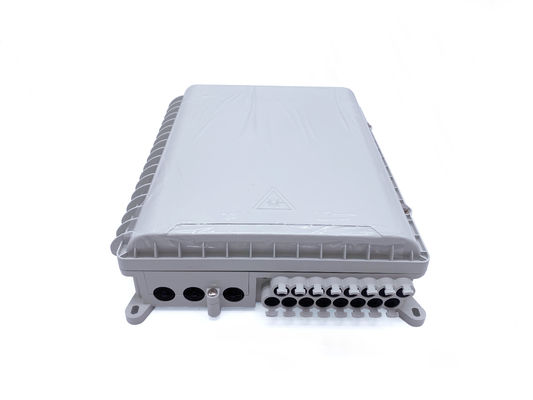

IP65 1x8 OTB ODB FDB Mid Span FTTH Fiber Optic Splitter Box 0



1piece in a cardborad box, with bubble bag and plastic film on the top, good protection for the box from factory to client, no scratches or fingerprints, brand new good outer apprearance.



IP65 1x8 OTB ODB FDB Mid Span FTTH Fiber Optic Splitter Box 1IP65 1x8 OTB ODB FDB Mid Span FTTH Fiber Optic Splitter Box 2



There is separate area for fusion, splitting area and distribute, multi- function, with cable label mark and laser mark to remind of construction, repair or future use. The box is ABS+PC raw material, no second hand materials, high strong and tensile strength, humanity design for the splitter, adapter and fiber management area, with large space for fiber route, store or splitting.

All the metal components used for this box is stainless steel, prevent corrosion and aging,make sure long life span.



IP65 1x8 OTB ODB FDB Mid Span FTTH Fiber Optic Splitter Box 3IP65 1x8 OTB ODB FDB Mid Span FTTH Fiber Optic Splitter Box 4

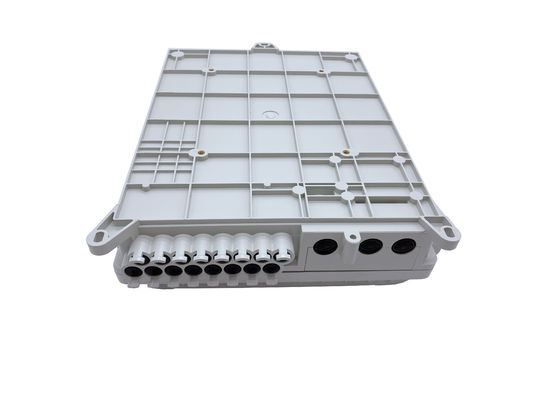

The whole box is total enclosed with a key, and sealed with rubber seal, meet waterproof outdoor IP65 standard, there are many striped stiffeners on the inside of the cover for better use in fttx networks.



IP65 1x8 OTB ODB FDB Mid Span FTTH Fiber Optic Splitter Box 5IP65 1x8 OTB ODB FDB Mid Span FTTH Fiber Optic Splitter Box 6



The box max. can use 2pcs 1:8 plc splitter steel tube, there is tube fix slot  design. and can splice fusion 24cores single fiber with figure mark, avoid of mess fiber management. The internal plate can be rotate 90degree flip over. Quite easy to operate, and you can take it off when install the splitter, adapter or pigtails or fusion.

IP65 1x8 OTB ODB FDB Mid Span FTTH Fiber Optic Splitter Box 7IP65 1x8 OTB ODB FDB Mid Span FTTH Fiber Optic Splitter Box 8

The adapter area have a plastic cover to protect dust and plc splitter output inside, no harm or damage to fiber.

The box can hold maximum 16pcs SC/APC or SC/UPC or LC duplex couplers with flange, there is no  need screws to fix,it is stable and faster.

The figure 1234...16 mark makes optical construction more easy and clear.

IP65 1x8 OTB ODB FDB Mid Span FTTH Fiber Optic Splitter Box 9

FDB0216L optical distribution box ODB have 3 mid span port for feeder cable go in and through the box without cutting. And 16pcs drop cable port 2*3mm rubber seal, the seal have upgrade anti pull off function, no need to worry the port will be come out when pulling the drop cable on site.







Standard accessory



Splice adapter rotate plate 1pc, 3pcs wall mount expansion screws, 16pcs fiber protective sleeve, spiral tube,nylon ties, a key,Pole mounted kits (optional).



          IP65 1x8 OTB ODB FDB Mid Span FTTH Fiber Optic Splitter Box 10
