single mode SMF 28E 1610nm FC UPC 1100G 8CH MUX DEMUX DWDM

single mode SMF 28E 1610nm FC UPC 1100G 8CH MUX DEMUX DWDM

  • High Light

    Mux Demux Dwdm

    ,

    fiber mux demux

    ,

    optical mux demux

  • Package Size
    100*80*0 (ABS Box)
  • Connector
    Sc Lc Fc St
  • Fiber Type
    Single Mode SMF-28E
  • Pigtail
    2mm Loose Tube
  • Pigtail Length
    1meter
  • Wavelength
    1270 - 1610nm
  • Place of Origin
    china
  • Brand Name
    yingda
  • Certification
    ISO
  • Model Number
    DWDM 100G 8CH
  • Minimum Order Quantity
    1pc
  • Price
    negotiable
  • Packaging Details
    1pc/box
  • Delivery Time
    3days
  • Payment Terms
    T/T, Western Union, MoneyGram, L/C
  • Supply Ability
    10000pcs/month

single mode SMF 28E 1610nm FC UPC 1100G 8CH MUX DEMUX DWDM

single mode SMF 28E 1610nm FC UPC 1100G 8CH Mux Demux Dwdm

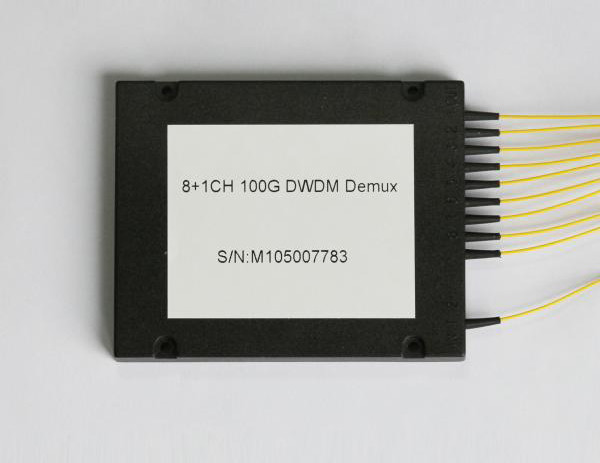

100G 8CH DWDM MODULE (Dense Wavelength Division Multiplexing) DEMUX / MUX FC/UPC



Features

Low insertion loss

High channel isolation

High stability and reliability

Epoxy free optical path



Application

DWDM Network

Wavelength routing

Fiber optical amplifier

CATV fiber optic system



Specification

Parameter 4CH 8CH 16CH 32CH 40CH
Channel wavelength(nm) ITU 100GHz grids
Center wavelength accuracy (nm) ±0.05
Minimum channel spacing (GHz) 100(0.8nm)
Channel passband (@-0.5dB bandwidth) (nm) >0.22
InsertIon loss (dB) <1.8 <3.2 <4.2 <5.4 <6.0
Channel uniformity (dB) <0.6 <1.0 <1.5 <2.0 <2.0
Channel ripple (dB) <0.3
Isolation Mux adjacent N/A
Non-adjacent N/A
Demux adjacent >25
Non-adjacent >35
Insertion loss temperature sensitivity <0.003
Wavelength temperature shifting (nm/°C) <0.002
Polariztion dependent loss (dB) <0.10 <0.25 <0.30
Polarization mode dispersion (ps) <0.10
Directivity (dB) >50
Return loss (dB) >45
Power handling (mW) 300
Operating temperature (°C) 0~+70
Storage temperature (°C) -40~+85
Package dimension (mm) 120*80*18 150*95*20 150*95*25 150*110*19



Packge information:

single mode SMF 28E 1610nm FC UPC 1100G 8CH MUX DEMUX DWDM 0

single mode SMF 28E 1610nm FC UPC 1100G 8CH MUX DEMUX DWDM 1

What is difference between dual fiber or single fiber?
