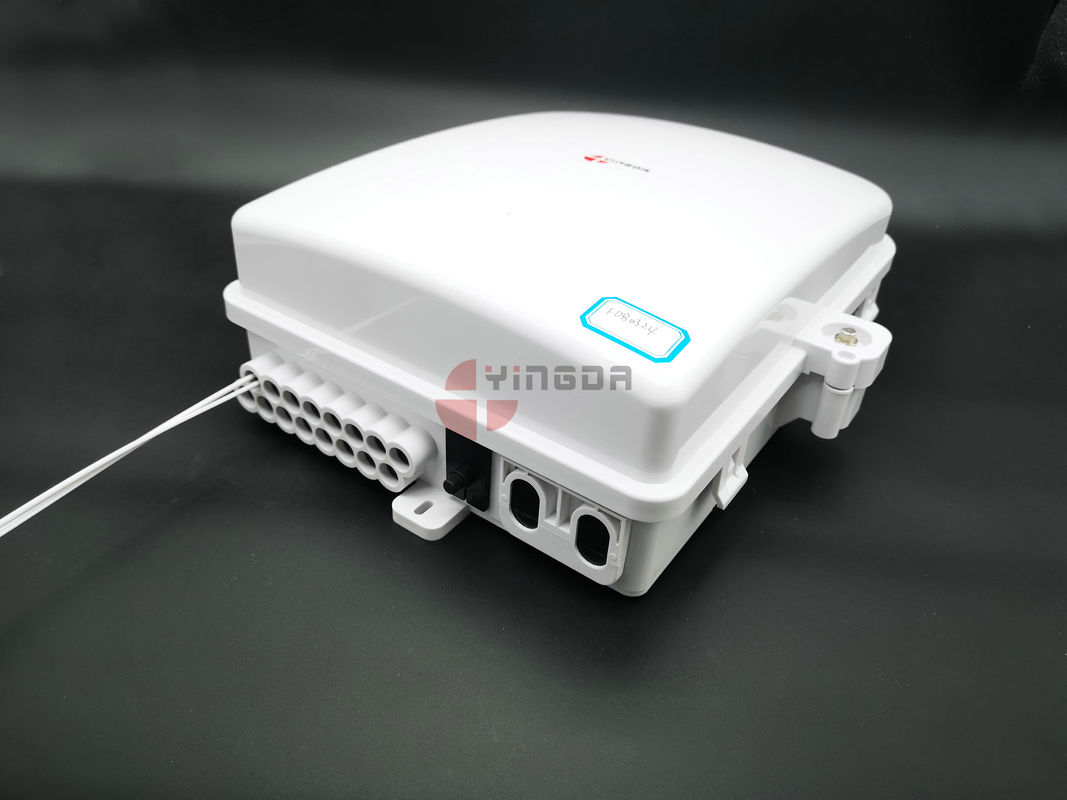

FDB0324 White PC SC Fiber Optic Termination Box ODB OSB 24 Port Hinge Design

FDB0324 White PC 24 Port SC Fiber Optic Termination Distribution Box ODB OSB



This terminal box is used for drop cable or soft cable in ftth deployment, maximum can do 24 pcs subscribers, it mix the function of fiber optic splitting, splicing, distribution and fiber storage in one box.



Features

  • Industry Standard User Interface, be made of high impact plastic.
  • Can accommodate 1x8 & 1X16 &24 PLC splitter.
  • Anti-UV, Ultra violet resistant and rainfall resistant.
  • Up to 24 FTTH drops.
  • Wall and pole mountable.
  • 3 inlet ports, 24 outlet ports.
  • Round shape, hinge design

Application

  • Widely used in FTTH access network.
  • Telecommunication Networks
  • CATV Networks
  • Data communications Networks
  • Local Area Networks

Specification

MODEL FDB0324
Dimension 334mm(W)x295mm(D)x116mm(D)
Cable ports 3 in, 32out
Cable diameter In:14mm ; out:3*2mm drop cable
Max. Adapter 24SC
Max. Splitter 1x8, 1x16,1x24 PLC splitter steel tube or ABS module
Color white
Capacity 24cores single fiber
Material PC
Waterproof grade IP65
Net weight 2.45kg
Quantity / carton 8 pcs
Gross weight / carton 24.5kg
Carton size 56*36*62cm



Box Size: 334.18*295.38*116.81mm

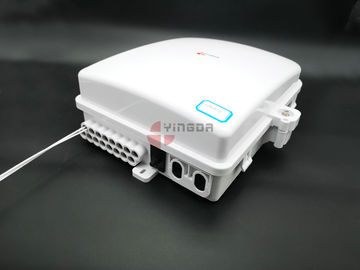

FDB0324 White PC SC Fiber Optic Termination Box ODB OSB 24 Port Hinge Design 0

Product details:

FDB0324 White PC SC Fiber Optic Termination Box ODB OSB 24 Port Hinge Design 1FDB0324 White PC SC Fiber Optic Termination Box ODB OSB 24 Port Hinge Design 2

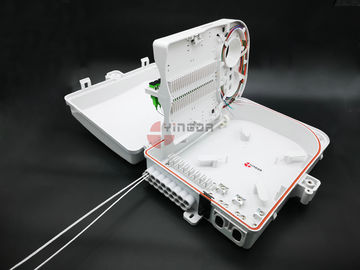

      Rotate splice tray front: adapter plate           bottom of the box is cable entry, exit, winding area



FDB0324 White PC SC Fiber Optic Termination Box ODB OSB 24 Port Hinge Design 3FDB0324 White PC SC Fiber Optic Termination Box ODB OSB 24 Port Hinge Design 4

splice tray:max. 24cores single fiber and storag; cable port: 3 uncut ports on right, 16ports on left, each 2pcs drop cable seal



FDB0324 White PC SC Fiber Optic Termination Box ODB OSB 24 Port Hinge Design 5FDB0324 White PC SC Fiber Optic Termination Box ODB OSB 24 Port Hinge Design 6

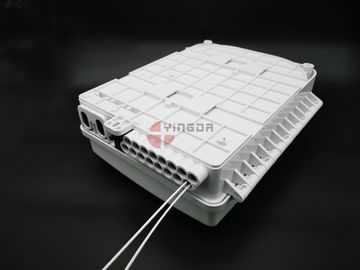

back is for wall mount or pole mount rings                key: 2screw rods, both sides with buckles too.



FDB0324 White PC SC Fiber Optic Termination Box ODB OSB 24 Port Hinge Design 7FDB0324 White PC SC Fiber Optic Termination Box ODB OSB 24 Port Hinge Design 8

Adapter panel: 24 SC simplex adapter.

  • one side:24pcs pigtails or splitter outputs SC
  • the other side: SC fast mechanical connector with drop cable



FDB0324 White PC SC Fiber Optic Termination Box ODB OSB 24 Port Hinge Design 9FDB0324 White PC SC Fiber Optic Termination Box ODB OSB 24 Port Hinge Design 10

Cable exit: rubber seal for each port, and each rubber with 2pcs flat drop cable hole, and there is enough cable fixtion white in front of it.

in the middle of the box bottom, you can install the ABS module splitter on it too.





Standard accessory

Heat shrink protection sleeve, buffer tube, nylon tie, label mark, expansion screws, etc.



Optional accessory:

Pole mount ring, adapter, pigtails, splitter, etc.
