IP65 Mid Span ABS Optical Distribution Box SC 16 Ports Flat Drop Cable Splice Closure

  • IP65 Mid Span ABS Optical Distribution Box SC 16 Ports Flat Drop Cable Splice Closure
  • IP65 Mid Span ABS Optical Distribution Box SC 16 Ports Flat Drop Cable Splice Closure
  • IP65 Mid Span ABS Optical Distribution Box SC 16 Ports Flat Drop Cable Splice Closure
  • IP65 Mid Span ABS Optical Distribution Box SC 16 Ports Flat Drop Cable Splice Closure
  • IP65 Mid Span ABS Optical Distribution Box SC 16 Ports Flat Drop Cable Splice Closure
Place of Origin china
Brand Name YINGDA
Certification ISO
Model Number FDB0216HF-B
Minimum Order Quantity 10pcs
Price negotiable
Packaging Details 1pc/box, 10pcs / master box
Delivery Time 7-10days
Payment Terms T/T, Western Union, MoneyGram, L/C
Supply Ability 10k pices per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material ABS+PC Color Black
Dimension 290*210*82mm Cable Entry 1 Mid Span, 2 Cable Glands Diameter:13.5mm
Cable Exit 16 Pieces SC Reinforced Adapters Splice Tray 5pcs / 24cores
Box Type Fiber Splice Closure
High Light

fiber optic closure

,

splitter distribution box
Leave a Message
Product Description

16 Port Mid Span Plastic Gray ABS PC SC Reinforced Adapter Fiber Access Terminal Box



FDB0216Y fiber access termination box is able to hold up to 16 subscribers. It is used as a termination point

for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting,

distribution, storage and cable connection in one solid protection box.



Specification

Model FDB0216Y
Dimension(L*W*D) mm 345*220*95
Cable port 1 express port (mid span), 2 cable glands
Max capacity 96 cores 4*24fiber tray
Max. Reinforced SC Adapter qty 16 pcs Mini SC coupler
Max. PLC splitter 2 pcs 1:8 or 1pc 1:16 block less splitter
Net weight 1.2kg
Color Gray, black
Waterproof grade IP65
Material Pc+abs



Product details

IP65 Mid Span ABS Optical Distribution Box SC 16 Ports Flat Drop Cable Splice Closure 0IP65 Mid Span ABS Optical Distribution Box SC 16 Ports Flat Drop Cable Splice Closure 1

IP65 Mid Span ABS Optical Distribution Box SC 16 Ports Flat Drop Cable Splice Closure 2IP65 Mid Span ABS Optical Distribution Box SC 16 Ports Flat Drop Cable Splice Closure 3

whole box is total enclosed, and with 5pcs splice tray, can hold 1x16 plc splitter or 2x16 splitter, 16pcs SC reinforced adapters/

4buckles at both sides of the box with strength strips to make it stronger.

laser mark and wiring label on the top of the lid.



IP65 Mid Span ABS Optical Distribution Box SC 16 Ports Flat Drop Cable Splice Closure 4IP65 Mid Span ABS Optical Distribution Box SC 16 Ports Flat Drop Cable Splice Closure 5

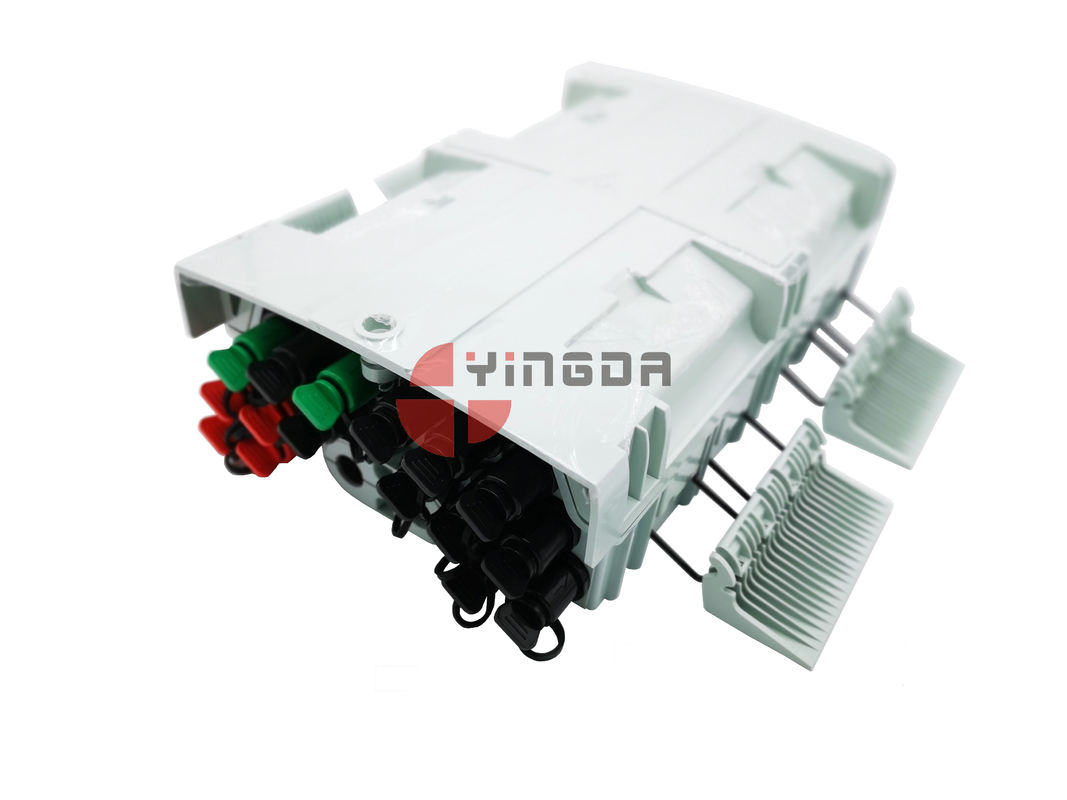

outputs is SC reinforced adapters, inside is normal type of SC connector, which is the output of the splitter,outside is the Mini SC connectors, must use the compatible SC mini connectors, the connector cable can be ftth drop cable or ftta round cable 5mm, both ok.

if there are more than 1 splitter inside of the box, in order to distinguish and make on-site construction easier, use colorful adapter caps to identify: such as blue, green, red, or black, etc.



IP65 Mid Span ABS Optical Distribution Box SC 16 Ports Flat Drop Cable Splice Closure 6   IP65 Mid Span ABS Optical Distribution Box SC 16 Ports Flat Drop Cable Splice Closure 7

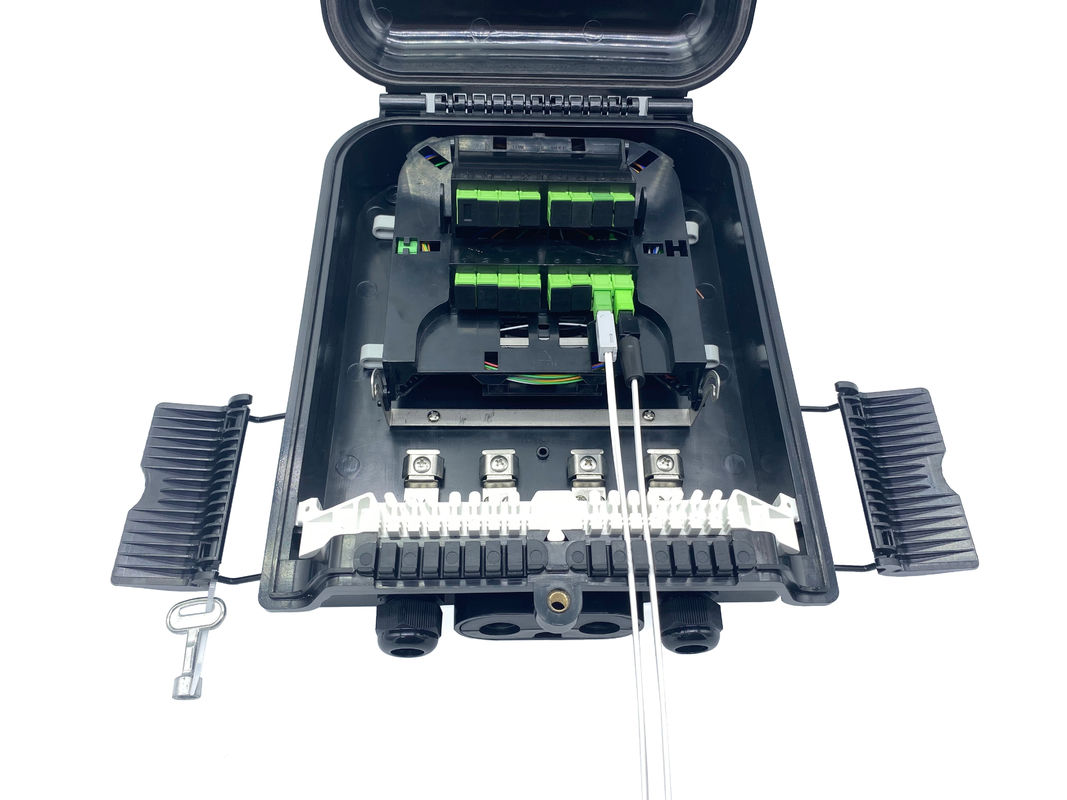

inside of the box, there is enoush space for cable routing and fixation, there is cable clamp and metal rods to fix the entry cable, output of the splitter with number 12345678...16 and input of the connector can be insert into the adapters too  with IN label ring.

there is steel tube fix position on each tray. and each tray can max. fusion 12cores 1way, 2way 24cores.





Features

  • Water-proof design with IP-68 Protection level.
  • Integrated with flap-up splice cassettes with splitter tube holder
  • Maximum 96F splice capacity
  • Plug-and-play installation, easy for maintenance and expansion.
  • Fiber bend radius control more than 40mm.
  • 180 degree access with buckled lock structure.
  • 2pcs 1*8 or 1*16 PLC splitter can be installed in splice tray as option.
  • 16 pcs of pre-installed Huawei compatible reinforced water-proof SC adapter
  • 1 mid- span cable entrance (10-16.5mm) for uncut cable and 2 reserved cable entrance for distribution cable (8-16.5mm).



Application

  • Wall-mounted, Pole-mounted, Aerial-hanging Installation
  • Suitable for pre-connectorized drop cable with reinforced connectors



Standard Accessories

Splice cassette and cable management tool, installation nuts and bolts, protection sleeves, hose clamp, cable tube,

key, wrench, rubber seal for cable entrance.



Optional Accessories

Pole mounted kits, Aerial hanging kits, plc splitter, Opti-tap adapters
