Durable Fiber Optic Splitter Box 16 Cores 3 Cable Glands SC LC CATV FTTX GPON Adapter
  • name
  • name
  • name

Durable Fiber Optic Splitter Box 16 Cores 3 Cable Glands SC LC CATV FTTX GPON Adapter

MOQ: 10 PCS
Price: 1.0USD-18.6USD
Standard Packaging: 1 pc / box, 30 pcs/ carton shipping box
Delivery Period: 5working days
Payment Method: Western Union, T/T, L/C
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO SGS ROHS
Model Number
GP62DW-3-16SC/UPC
Capacity:
24 Cores
Cable Ports:
3 Cable Glands
Dimension:
570*415*355mm
Material:
Polymer Synthetic Plastic
Color:
Grey
Adapter:
16 SC/UPC Adatper
Installation Method:
Outdoor Wall Mount
Splice Tray:
1 Pc
Feature:
Optical Distribution Box
Splitter:
1x8, 1x16 Steel Tube Plc Splitter
Highlight:

fiber optic closure

,

splitter distribution box

Product Description

16 Cores Fiber Optic Terminal Box Wall Mounting SC LC CATV FTTX GPON



Feature:

Suitable for protective splice for figure-8 or Φ3 drop cable and distribution for Φ12 cable termination

For wall mount applications

Built in swing out mini splice tray

Can accommodate up to a 1x8 splitter

Max capacity 24 LC( quad adapters) or 12 SC (simplex adapter)

Locking door with key

It is suitable for outdoor cable or indoor soft cable



Specification:

Parameter Value
PLC splitter Mini module 0.9mm
Splitter installation position Splitter fixing bracket
Adapter SC,LC
Max ratio 1x8(SC);1X16(LC)
Max distribution 24Fiber
Splice tray 1 pc 15#
Cable outdoor cable, indoor soft cable
Optional PLC splitter,SC duplex adapter, LC 4way adapter
Box dimension 570*415*355mm
Package 20pc/Carton

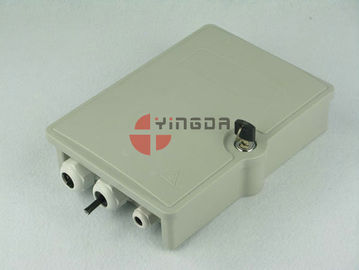

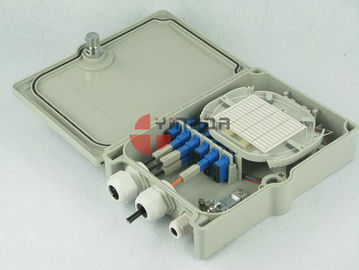

Product details:

Durable Fiber Optic Splitter Box 16 Cores 3 Cable Glands SC LC CATV FTTX GPON Adapter 0Durable Fiber Optic Splitter Box 16 Cores 3 Cable Glands SC LC CATV FTTX GPON Adapter 1

Durable Fiber Optic Splitter Box 16 Cores 3 Cable Glands SC LC CATV FTTX GPON Adapter 2Durable Fiber Optic Splitter Box 16 Cores 3 Cable Glands SC LC CATV FTTX GPON Adapter 3

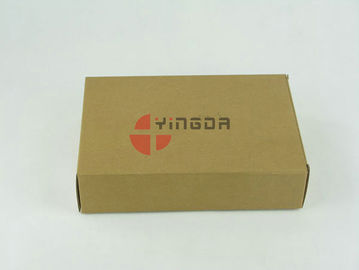

Package information:



Durable Fiber Optic Splitter Box 16 Cores 3 Cable Glands SC LC CATV FTTX GPON Adapter 4Durable Fiber Optic Splitter Box 16 Cores 3 Cable Glands SC LC CATV FTTX GPON Adapter 5



Other details:



Durable Fiber Optic Splitter Box 16 Cores 3 Cable Glands SC LC CATV FTTX GPON Adapter 6Durable Fiber Optic Splitter Box 16 Cores 3 Cable Glands SC LC CATV FTTX GPON Adapter 7

Durable Fiber Optic Splitter Box 16 Cores 3 Cable Glands SC LC CATV FTTX GPON Adapter 8Durable Fiber Optic Splitter Box 16 Cores 3 Cable Glands SC LC CATV FTTX GPON Adapter 9



Application:

Outdoor wall mount or pole mount

FTTH distribution or splitting
