Nap Caja Terminal Fiber Optic Splitter Box Exterior Plastic Waterproof 2 Cable Glands

Nap Caja Terminal Fiber Optic Splitter Box Exterior Plastic Waterproof 2 Cable Glands

  • High Light

    fiber optic closure

    ,

    splitter distribution box

  • Capacity
    2 Cores
  • Cable Ports
    2 Cable Glands
  • Dimension
    208×153×52mm
  • Material
    Polymer Synthetic Plastic
  • Color
    Grey
  • Adapter
    2 SC; 4 LC
  • Installation Method
    Outdoor Wall Mount
  • Splice Tray
    1 Pc
  • Feature
    Ftth Customer End User Box
  • Splitter
    1x2 1x4 Mini Module Plc Splitter
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO SGS CE ROHS
  • Model Number
    GP62DW-2 (FDB-6002)
  • Minimum Order Quantity
    10 PCS
  • Price
    Negotiable
  • Packaging Details
    1 pc / box, 30 pcs/ carton shipping box
  • Delivery Time
    5working days
  • Payment Terms
    Western Union, T/T, L/C

Nap Caja Terminal Fiber Optic Splitter Box Exterior Plastic Waterproof 2 Cable Glands

Nap Caja Terminal Box Exterior Plastic Waterproof Fiber Optic Splitter Distribution Box



GP62DW-2 is a new generation product for fiber to the home. The box is light and compact; it is especially for connecting and protection for fiber cable of FTTH.



Features

  • Max capacity: LC 4fiber, SC 2fiber.
  • Excellent sealing performance,reusable,protection class is IP 65.
  • Wall mount application
  • Built in swing out mini splice tray
  • Builk head panel with 2 SC/LC Duplex (SC footprint)
  • Built in weather tight grommets
  • Locking door with key
  • It is suitable for outdoor cable or indoor soft cable

Specification

Parameter Value
PLC splitter Mini module 0.9mm
Splitter installation position Splitter fixing bracket
Adapter SC,LC
Max ratio 1x2(SC);1X4(LC)
Splice tray 1 pc 18#
Cable outdoor cable, indoor soft cable
Optional PLC splitter,SC adapter,LC duplex adapter
Box dimension 460*335*590mm
Package 60pc/Carton



Product details

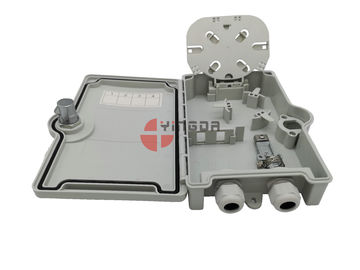

1. Outer apperance: 2cable glands, 1in 1out, wall mount holes on the back. It has strength hinge of the lid and cover.



Nap Caja Terminal Fiber Optic Splitter Box Exterior Plastic Waterproof 2 Cable Glands 0

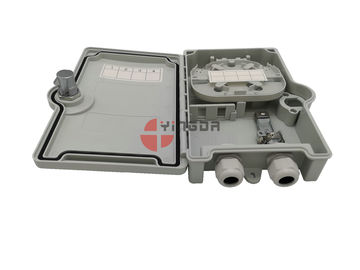

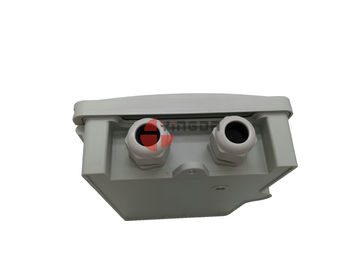

2. the box close with key, anti-thief. there is label mark for on-site construction, accessory bag in the box before delivery.

2pcs SC adapter panel on the bottom.

Nap Caja Terminal Fiber Optic Splitter Box Exterior Plastic Waterproof 2 Cable Glands 1

Nap Caja Terminal Fiber Optic Splitter Box Exterior Plastic Waterproof 2 Cable Glands 2

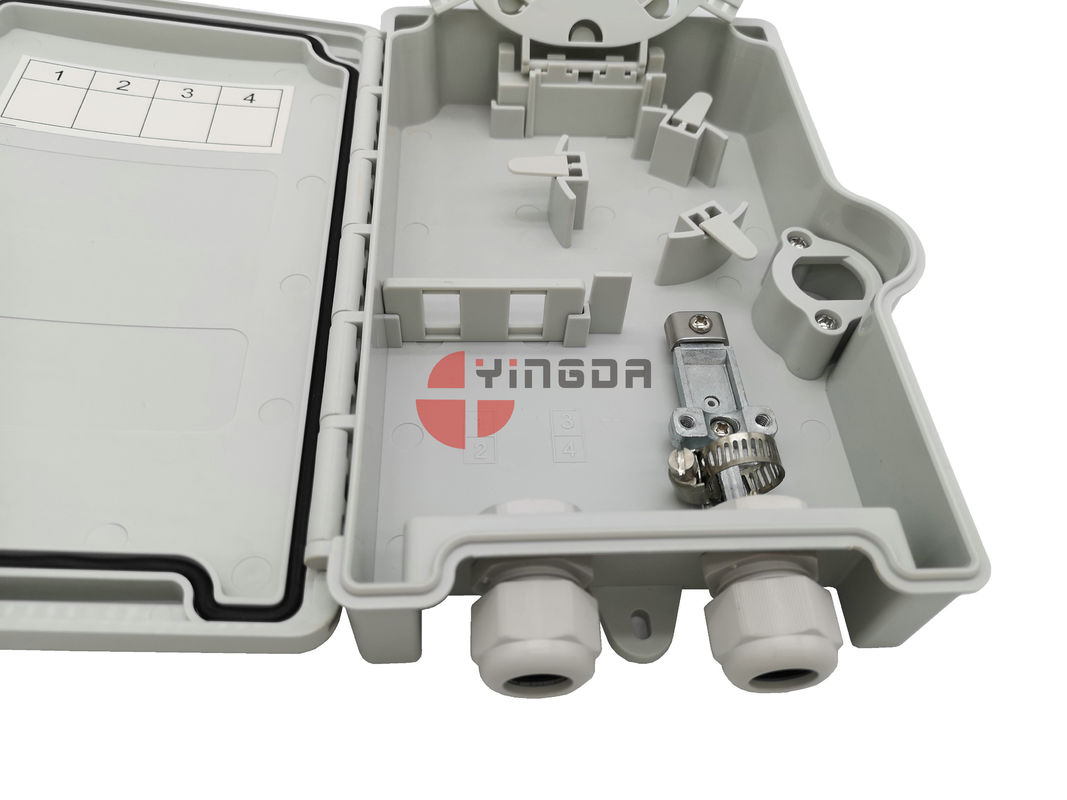

3. all the box will equipped with english user manual.

Nap Caja Terminal Fiber Optic Splitter Box Exterior Plastic Waterproof 2 Cable Glands 3

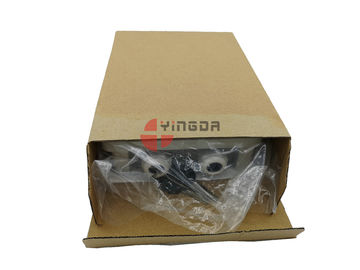

Standard accessory

Nap Caja Terminal Fiber Optic Splitter Box Exterior Plastic Waterproof 2 Cable Glands 4

Application

  • Outdoor wall mount or pole mount
  • FTTH distribution or splitting
