FDB Fiber Optic Cable Termination Box 2 Cores PC ABS Outdoor Wall Mounted

Name: FDB Fiber Optic Cable Termination Box 2 Cores PC ABS Outdoor Wall Mounted
Brand: YINGDA TECHNOLOGY LIMITED
SKU: GP62DW-2 (FDB-6002)
Price: 9.00 USD
Availability: InStock

Brand Name:	YINGDA
Model Number:	GP62DW-2 (FDB-6002)
MOQ:	10 PCS
Price:	1.0USD-18.6USD
Delivery Time:	5working days
Payment Terms:	Western Union, T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

ISO SGS CE ROHS

Capacity:

2 Cores

Cable Ports:

2 Cable Glands

Dimension:

208×153×52mm

Material:

Polymer Synthetic Plastic

Color:

Grey

Adapter:

2 SC; 4 LC

Installation Method:

Outdoor Wall Mount

Splice Tray:

1 Pc

Feature:

Ftth Customer End User Box

Splitter:

1x2 1x4 Mini Module Plc Splitter

Packaging Details:

1 pc / box, 30 pcs/ carton shipping box

Highlight:

fiber optic closure

splitter distribution box

Product Description

Fiber to The Home Customer Box for Optical Distribution FDB Box 2 Cores PC ABS

GP62DW-2 is a new generation product for fiber to the home. The box is light and compact; it is especially for connecting and protection for fiber cable of FTTH.

Specification

Parameter	Value
PLC splitter	Mini module 0.9mm
Splitter installation position	Splitter fixing bracket
Adapter	SC,LC
Max ratio	1x2(SC);1X4(LC)
Splice tray	1 pc 18#
Cable	outdoor cable, indoor soft cable
Optional	PLC splitter,SC adapter,LC duplex adapter
Box dimension	460335590mm
Package	60pc/Carton

Product details

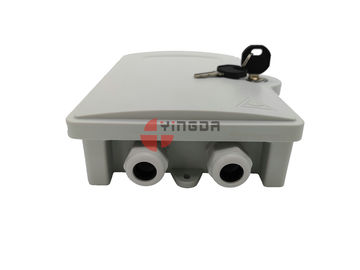

1. Outer apperance: 2cable glands, 1in 1out, wall mount holes on the back. It has strength hinge of the lid and cover.

FDB Fiber Optic Cable Termination Box 2 Cores PC ABS Outdoor Wall Mounted 0

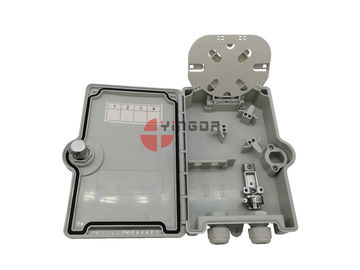

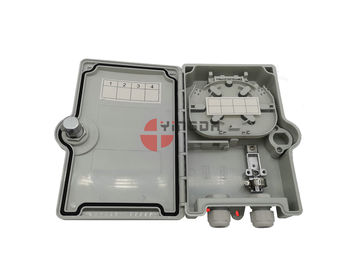

2. the box close with key, anti-thief. there is label mark for on-site construction, accessory bag in the box before delivery.

2pcs SC adapter panel on the bottom.

FDB Fiber Optic Cable Termination Box 2 Cores PC ABS Outdoor Wall Mounted 1

FDB Fiber Optic Cable Termination Box 2 Cores PC ABS Outdoor Wall Mounted 2

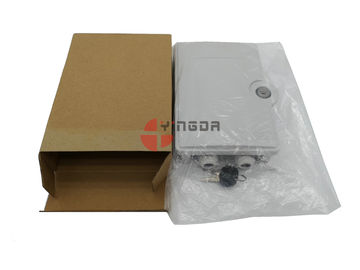

3. all the box will equipped with english user manual.

FDB Fiber Optic Cable Termination Box 2 Cores PC ABS Outdoor Wall Mounted 3

Standard accessory

FDB Fiber Optic Cable Termination Box 2 Cores PC ABS Outdoor Wall Mounted 4

Features

Max capacity: LC 4fiber, SC 2fiber.
Excellent sealing performance,reusable,protection class is IP 65.
Wall mount application
Built in swing out mini splice tray
Builk head panel with 2 SC/LC Duplex (SC footprint)
Built in weather tight grommets
Locking door with key
It is suitable for outdoor cable or indoor soft cable

Application

Outdoor wall mount or pole mount
FTTH distribution or splitting
