Outdoor IP65 Fiber Optic Splitter Box Plastic 2 Ports Polymer Synthetic Plastic Material

MOQ: 10 PCS
Price: 1.0USD-18.6USD
Standard Packaging: 1 pc / box, 30 pcs/ carton shipping box
Delivery Period: 5working days
Payment Method: Western Union, T/T, L/C
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO SGS CE ROHS
Model Number
GP62DW-2 (FDB-6002)
Capacity:
2 Cores
Cable Ports:
2 Cable Glands
Dimension:
208×153×52mm
Material:
Polymer Synthetic Plastic
Color:
Grey
Adapter:
2 SC; 4 LC
Installation Method:
Outdoor Wall Mount
Splice Tray:
1 Pc
Feature:
Ftth Customer End User Box
Splitter:
1x2 1x4 Mini Module Plc Splitter
Highlight:

fiber optic closure

,

splitter distribution box

Product Description

Outdoor IP65 Plastic 2 Ports SC Optical Fiber Ftth End User Box Wall Mount Grey



GP62DW-2 is a new generation product for fiber to the home. The box is light and compact; it is especially for connecting and protection for fiber cable of FTTH.



Features

  • Max capacity: LC 4fiber, SC 2fiber.
  • Excellent sealing performance,reusable,protection class is IP 65.
  • Wall mount application
  • Built in swing out mini splice tray
  • Builk head panel with 2 SC/LC Duplex (SC footprint)
  • Built in weather tight grommets
  • Locking door with key
  • It is suitable for outdoor cable or indoor soft cable

Specification

Parameter Value
PLC splitter Mini module 0.9mm
Splitter installation position Splitter fixing bracket
Adapter SC,LC
Max ratio 1x2(SC);1X4(LC)
Splice tray 1 pc 18#
Cable outdoor cable, indoor soft cable
Optional PLC splitter,SC adapter,LC duplex adapter
Box dimension 460*335*590mm
Package 60pc/Carton



Product details



1.Overview

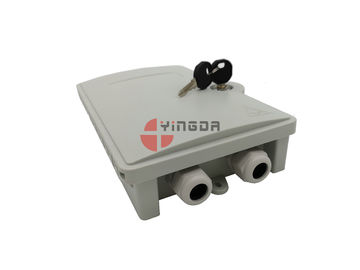

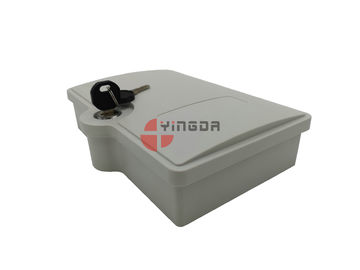

ABS+PC material, 2cable glands, with number for fiber routing. and there is splice tray transparent cover on the tray.

waterproof circle to protect the box, anit-UV, anti-wet, anti-dust, IP66.

Outdoor IP65 Fiber Optic Splitter Box Plastic 2 Ports Polymer Synthetic Plastic Material 0Outdoor IP65 Fiber Optic Splitter Box Plastic 2 Ports Polymer Synthetic Plastic Material 1

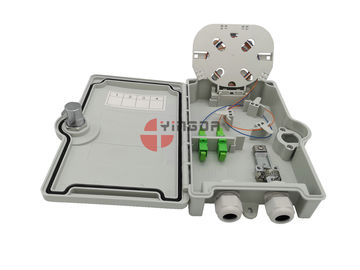

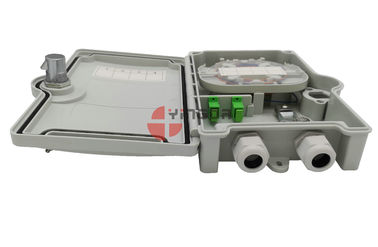

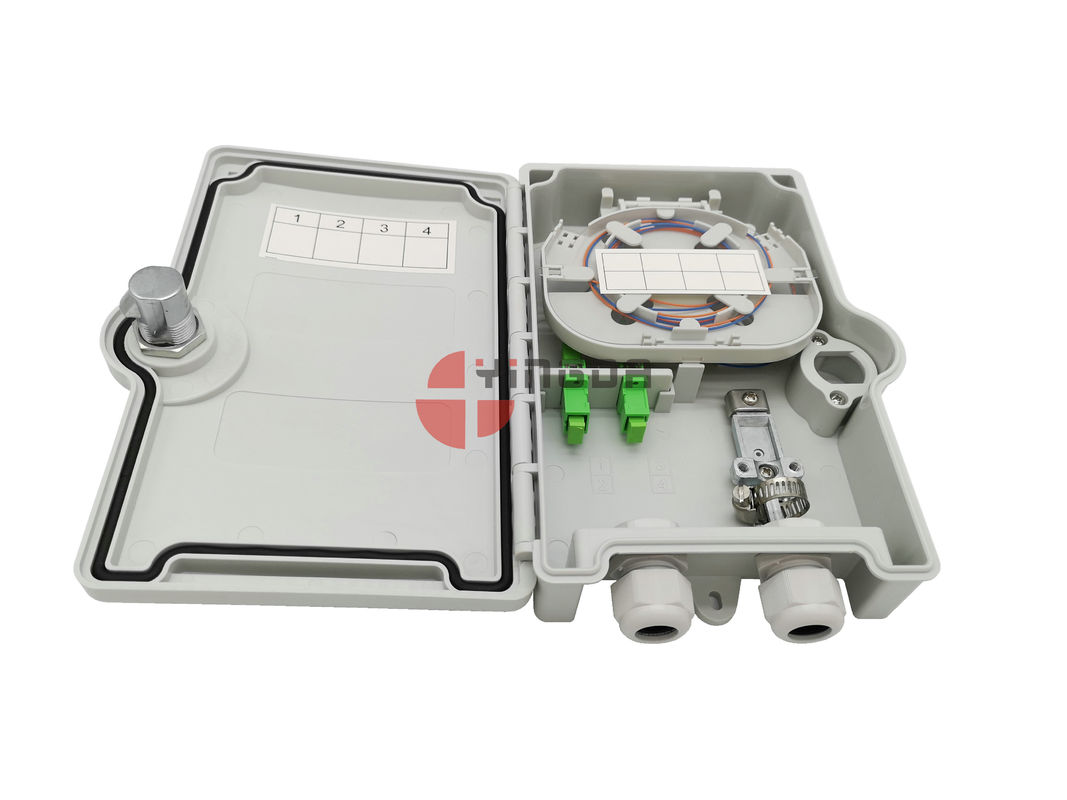

2. Cable distribution or fusion area:

there is adapter panel with 2SC or 4LC duplex adapter, there is steel tube holder, and cable rods for management.

we can fix the feeder cable on the metal fixtion, no loose, no fiber break.



Outdoor IP65 Fiber Optic Splitter Box Plastic 2 Ports Polymer Synthetic Plastic Material 2Outdoor IP65 Fiber Optic Splitter Box Plastic 2 Ports Polymer Synthetic Plastic Material 3

Outdoor IP65 Fiber Optic Splitter Box Plastic 2 Ports Polymer Synthetic Plastic Material 4Outdoor IP65 Fiber Optic Splitter Box Plastic 2 Ports Polymer Synthetic Plastic Material 5



3. metal rods with balck plastic keys

    2pcs key is in accessory bag before delivery.



Outdoor IP65 Fiber Optic Splitter Box Plastic 2 Ports Polymer Synthetic Plastic Material 6Outdoor IP65 Fiber Optic Splitter Box Plastic 2 Ports Polymer Synthetic Plastic Material 7

Application

  • Outdoor wall mount or pole mount
  • FTTH distribution or splitting

Standard accessory

Outdoor IP65 Fiber Optic Splitter Box Plastic 2 Ports Polymer Synthetic Plastic Material 8

Ratings & Review

Overall Rating

5.0
Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings
5 stars
0%
4 stars
0%
3 stars
0%
2 stars
0%
1 stars
0%

All Reviews

8
8*V
United States Feb 10.2024
Helpful (10)
Everything is working as expected. Communication was great for you and the shipping arrived promptly, thank you so much. Definitely will be purchasing from you guys in the future.
D
D*e
Venezuela Sep 26.2022
Helpful (24)
All connectors insert loss < 0.3db, and the quality is better than other suppliers. I recommend this supplier to everyone, very professional!
1
1*e
Morocco Sep 6.2022
Helpful (5)
This enclosure worked perfectly, well designed tray inside for spooling excess fiber. Solid post / clamp to secure jacket .Very happy with product , would buy again.
Tags:

splitter distribution box,

optical distribution box,

fiber optic closure
