FTTH 4 Cores Outdoor Fiber Termination Box , Fiber Optic Connection Box SC Adapter

Name: FTTH 4 Cores Outdoor Fiber Termination Box , Fiber Optic Connection Box SC Adapter
Brand: YINGDA TECHNOLOGY LIMITED
SKU: GP62DW-2 (FDB-6002)
Price: 9.00 USD
Availability: InStock

Brand Name:	YINGDA
Model Number:	GP62DW-2 (FDB-6002)
MOQ:	10 PCS
Price:	1.0USD-18.6USD
Delivery Time:	5working days
Payment Terms:	Western Union, T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

ISO SGS CE ROHS

Capacity:

2 Cores

Cable Ports:

2 Cable Glands

Dimension:

208×153×52mm

Material:

Polymer Synthetic Plastic

Color:

Grey

Adapter:

2 SC; 4 LC

Installation Method:

Outdoor Wall Mount

Splice Tray:

1 Pc

Feature:

Ftth Customer End User Box

Sealing Method:

Cable Gland And Rubber Circle

Splitter:

1x2 1x4 Mini Module Plc Splitter

Packaging Details:

1 pc / box, 30 pcs/ carton shipping box

Highlight:

fiber optic closure

splitter distribution box

Product Description

2 / 4 Cores FTTX Outdoor Fiber Optic Terminal Box With PC / ABS Material

Mechanical seal: Excellent sealing performance,reusable. Protection grade is IP 65.

Installation method: Outdoor wall-mounted

Specification

Material	Polymer synthetic plastic
Fiber tray capacity	4Core
Dimension	208×153×52mm
Weight	0.5-0.6kg

Feature

Professional terminal box is used in FTTH project and receives national patents.
The box is designed to be flipped over with compact size.
It is used to protect optical cable under Φ12, soft cable or Φ3 soft cable.
1:2SC or 1:4LC micro-splitter is applicable;
it also can be installed with SC or LC double cores adaptors.
Maximum of LC adaptor is 4 cores while 2 cores is the maximum for SC adaptor

Product details

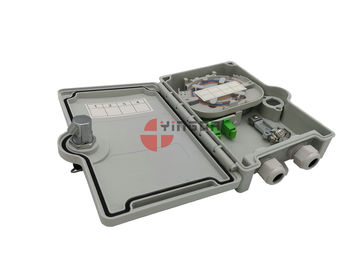

1. Overview:

fully load with 2pcs Pigtails SC/APC 900um 1meter red blue color, and 2pcs SC/APC adapters

1pc fiber tray for fiber storage and management, with 2slots for heat shrink protection sleeves.

FTTH 4 Cores Outdoor Fiber Termination Box , Fiber Optic Connection Box SC Adapter 0

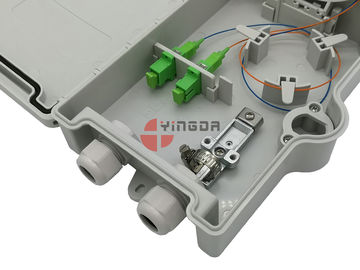

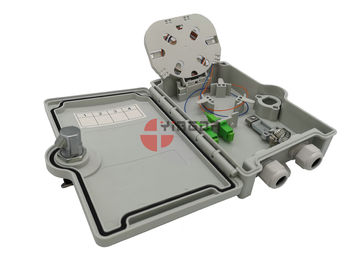

2. Cable distribution or fusion area:

there is adapter panel with 2SC or 4LC duplex adapter, there is steel tube holder, and cable rods for management.

we can fix the feeder cable on the metal fixtion, no loose, no fiber break.

FTTH 4 Cores Outdoor Fiber Termination Box , Fiber Optic Connection Box SC Adapter 2

FTTH 4 Cores Outdoor Fiber Termination Box , Fiber Optic Connection Box SC Adapter 4

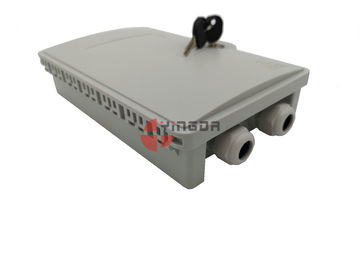

3. metal rods with balck plastic keys

2pcs key is in accessory bag before delivery.

FTTH 4 Cores Outdoor Fiber Termination Box , Fiber Optic Connection Box SC Adapter 6

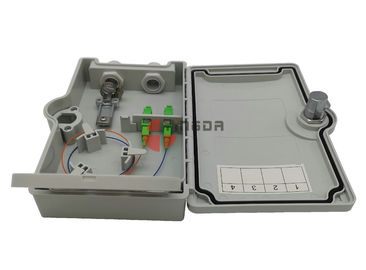

Pack information

FTTH 4 Cores Outdoor Fiber Termination Box , Fiber Optic Connection Box SC Adapter 8

Model	FDB-6002
Carton size	560450275mm
Carton quantity	30pcs
Carton weight	24kgs
