Pole Mount Fiber Optic Splitter Box Waterproof FTTH IP66 12 / 16 Cores Anti UV

  • Pole Mount Fiber Optic Splitter Box Waterproof FTTH IP66 12 / 16 Cores Anti UV
  • Pole Mount Fiber Optic Splitter Box Waterproof FTTH IP66 12 / 16 Cores Anti UV
  • Pole Mount Fiber Optic Splitter Box Waterproof FTTH IP66 12 / 16 Cores Anti UV
  • Pole Mount Fiber Optic Splitter Box Waterproof FTTH IP66 12 / 16 Cores Anti UV
Place of Origin china
Brand Name Yingda
Certification ISO,SGS
Model Number FDB0216V
Minimum Order Quantity 100pcs
Price negotiable
Packaging Details 1pc/box, 10pcs/carton
Delivery Time 7days
Payment Terms Western Union, T/T, L/C, MoneyGram
Supply Ability 50000PCS/Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Pc+abs Color Gray, Black
Application FTTH, FTTB FTTX Networks, Outoor Product Name 16 Cores Fiber Distribution Box, Fiber Optic Termination Box
Waranty 3 Years Size 287*172*102mm
High Light

splitter distribution box

,

optical distribution box
Leave a Message
Product Description

Pole Mount Waterproof FTTH IP66 12 & 16 Cores Fiber Optic Light Cable Junction Box



ODP GFS-16 Fiber Optical Distribution Box is a high density solution for FTTH next generation networks, it provide and manage maximum 16 cores fiber termination in a limited space. It can be wall mounting or pole mounted indoor and outdoor application. IP66 waterproof grade.



Feature

  • It is made of high impact plastic material, high strength, good performance
  • Can accommodate 1x8 1x16 mini module PLC splitter with SC Connector
  • Anti-UV, Ultra violet resistant and rainfall resistant.
  • Wall mounted, pole mounted
  • Max. Hold 16pcs SC or LC duplex adapters
  • 1pc mid span ports, 2 round cable port, 16 pcs FTTH drop cable outports
  • Pre-install SC adapter or micro splitter, pigtails available.
  • IP65 level for outdoor use

Pole Mount Fiber Optic Splitter Box Waterproof FTTH IP66 12 / 16 Cores Anti UV 0Pole Mount Fiber Optic Splitter Box Waterproof FTTH IP66 12 / 16 Cores Anti UV 1

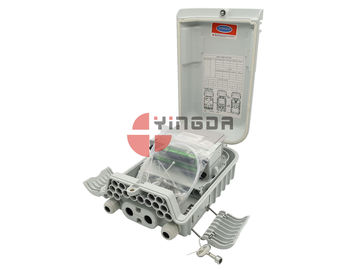

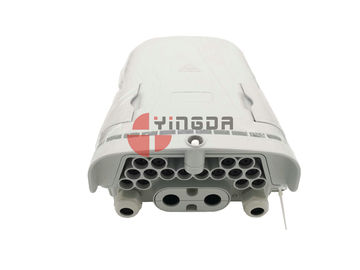

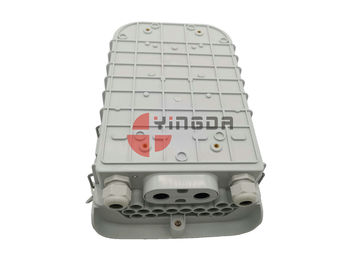

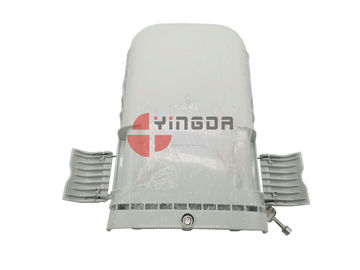

TOTAL VIEW: box+lgx module+accessory bag                       Back: wall mount/pole mount



Pole Mount Fiber Optic Splitter Box Waterproof FTTH IP66 12 / 16 Cores Anti UV 2Pole Mount Fiber Optic Splitter Box Waterproof FTTH IP66 12 / 16 Cores Anti UV 3



  1x16 LGX cassette module with adapters                    16cores fusion splice tray and storage

Pole Mount Fiber Optic Splitter Box Waterproof FTTH IP66 12 / 16 Cores Anti UV 4Pole Mount Fiber Optic Splitter Box Waterproof FTTH IP66 12 / 16 Cores Anti UV 5



                bottom cable management                    cable entry and exit with fixing rods and rubber





Application

  • Telecommunication Networks
  • WAN,LAN ,CATV Networks
  • Data communications Networks
  • FTTH access terminal network (FAT)

Specification

Model FDB0216V
Material ABS+PCS
Cable port 2round ports, 1mid span port, 16outputs for drop cable
Size(W*H*D)

287*172*102 mm
Max capacity 16 cores
Adapter qty 16 SC
PLC splitter 1x2,1x4,1x8,1x16 steel tube PLC splitter
Color black, gray



Packing information

Model QTY/CTN CTN size N.W/CTN G.W/ CTN
FDB0216v 10pcs cm 1.4 20kgs
