IP65 Outdoor Fiber Optic Splitter Box Wall Mount 16 Cores 1x8 Coupler ABS PC Material

IP65 Outdoor Fiber Optic Splitter Box Wall Mount 16 Cores 1x8 Coupler ABS PC Material

  • High Light

    splitter distribution box

    ,

    optical distribution box

  • Material
    ABS+PC
  • Color
    Gray
  • Dimension
    274*175*82 Mm
  • Application
    Fiber To The Home
  • Installation Method
    Wall Mount, Pole Mount
  • Drop Cable Size
    2*3mm Indoor Ftth Flat Cable
  • Adapter Qty
    18 Pcs SC
  • Splitter Qty
    2 Pcs 1x8 Or 1 Pcs 1x16 Plc Splitter
  • Place of Origin
    china
  • Brand Name
    yingda
  • Certification
    ISO, ROHS, SGS
  • Model Number
    FDB0216W-AD16-1108SA
  • Minimum Order Quantity
    100pcs
  • Price
    negotiable
  • Packaging Details
    1 pc / carton box, 10 pcs / master box
  • Payment Terms
    T/T, Western Union

IP65 Outdoor Fiber Optic Splitter Box Wall Mount 16 Cores 1x8 Coupler ABS PC Material

IP65 Outdoor Wall Mount 16 Cores 1x8 Coupler Optical Fiber Splice Splitter Box

Model:FDB0216W



ODP FDB0216W type Fiber Optic Splitter Distribution Box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.



Specification

Model FDB0216W
Dimension(L*W*D) 274*175*82 mm
Max capacity 1x8 micro mini plc splitter 2 pieces
SC simplex adapter 16 pieces
Fusion splice 16 fibers in a splice tray
Environmental requirement

Working temperature:-40℃~+60℃

Relative humidity:≤85%(+30℃)

Atmospheric pressure:70KP~106Kpa

Main technical

Insertion loss:≤0.2dB

UPC return loss:≥50dB

APC return loss:≥60dB

Life of insertion and extraction:>1000 times

Thunder-proof technical

The grounding device is isolated with the cabinet, isolation resistance is less than 2MΩ/500V(DC)

IR≥2MΩ/500V

The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture,no flashover

;U≥3000V





Features

1.Total enclosed structure with brackets and metal screw

2. Material: PC+ABS,wet-proof,water-proof,dust-proof,anti-aging,protection level up to IP65.

3.Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.

4.Cable,pigtails,patch cords are running through own path without disturbing each other,cassette type SC adaptor installation, easy maintenance.

5. Distribution panel can be flipped up, feeder cable can be placed by express port, easy for maintenance and installation.

6. Wall-mounted or poled-mounted, both indoor and outdoor use.



Product Details

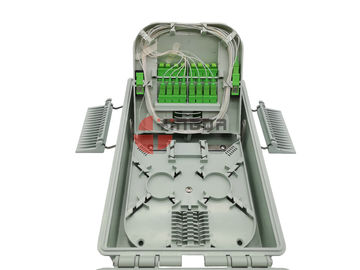

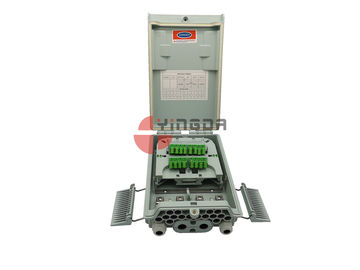

IP65 Outdoor Fiber Optic Splitter Box Wall Mount 16 Cores 1x8 Coupler ABS PC Material 0IP65 Outdoor Fiber Optic Splitter Box Wall Mount 16 Cores 1x8 Coupler ABS PC Material 1

The box is total enclosed with key, and 2 pieces of buckles to fix it.

it is waterproof Ip65, anti-UV, anti-dust, anti-wet, etc, it can be wall mount or pole mount, with screws holes at back of the box.

cable ports: 1 express port, 2 round ports, and 16outputs for ftth (fiber to the home) figure-8 drop cable.

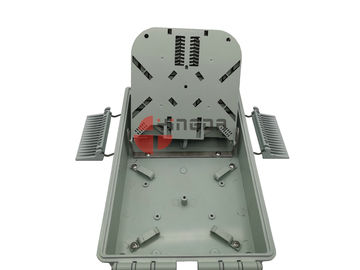

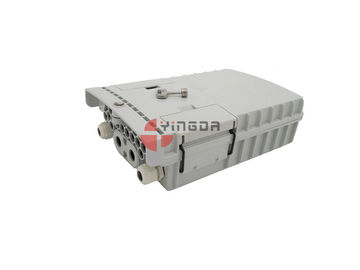

IP65 Outdoor Fiber Optic Splitter Box Wall Mount 16 Cores 1x8 Coupler ABS PC Material 2IP65 Outdoor Fiber Optic Splitter Box Wall Mount 16 Cores 1x8 Coupler ABS PC Material 3

                             TYPE A                                                                 TYPE B



2 Types of Rotate plate:



TYPE A  -- LGX cassette module splitter max. 2 pieces 1x8 or 1 piece 1x16 plc splitter with SC connectors

TYPE B -- adapter panel on the top side, it can fix the output of the splitter, and back side for splitter input fixtion with adapter at both sides, and steel tube slot fixtion.



IP65 Outdoor Fiber Optic Splitter Box Wall Mount 16 Cores 1x8 Coupler ABS PC Material 4IP65 Outdoor Fiber Optic Splitter Box Wall Mount 16 Cores 1x8 Coupler ABS PC Material 5



Fibre Fusion and Storage Area:



The second tray is for fiber optic fusino and management, max. 16 cores single fiber for fusion splice.

The bottom of the box is for fiber storage with cable routing and ties.





IP65 Outdoor Fiber Optic Splitter Box Wall Mount 16 Cores 1x8 Coupler ABS PC Material 6IP65 Outdoor Fiber Optic Splitter Box Wall Mount 16 Cores 1x8 Coupler ABS PC Material 7



Adapter plate:



all the plate is flip up design, at front max. 16 pcs SC adapter to connect the drop cable connector and the splitter outputs connectors, back 2 pcs SC adapter for splitter input connector fix.

At back there is also 2 pcs slot for 1:8 plc splitter steel tube.

the splitter input connectors can be put on both side of the tray, to distinguish the input and outputs. you can use SC/UPC adapter or blue, red,orange or other color of the loose tube to distinguish too.

IP65 Outdoor Fiber Optic Splitter Box Wall Mount 16 Cores 1x8 Coupler ABS PC Material 8IP65 Outdoor Fiber Optic Splitter Box Wall Mount 16 Cores 1x8 Coupler ABS PC Material 9

The plate is totally seperate design, it can be taken off by hand, and fix on the bottom with a metal unique brackets, it is easy to install and un-installation, fast and quick. ABS+PC material, unique design.



When need pre-terminated pigtails, adapter or splitters, first installl them, then fix the tray on the box, then finish the assembly. When on-site construction, you can directly insert the connectors on the top adapter plate, then finish distribution.



Package information

Packing 500*450*400MM
Weight 20kgs
Quantity 10 pcs/box



Standard accessory

IP65 Outdoor Fiber Optic Splitter Box Wall Mount 16 Cores 1x8 Coupler ABS PC Material 10

Screw, base, cover, connecting screw, rubber seal, lock blot, door clip, door clip conecting bracket, loop ring, flap fixed bracket, flip plate A/B/C, flip bracket, fiber fixer, grouding bracket, waterproof blocker, cable exit mat,etc.
