|Dimension:||274*175*82 Mm||Application:||Fiber To The Home|
|Installation Method:||Wall Mount, Pole Mount||Drop Cable Size:||2*3mm Indoor Ftth Flat Cable|

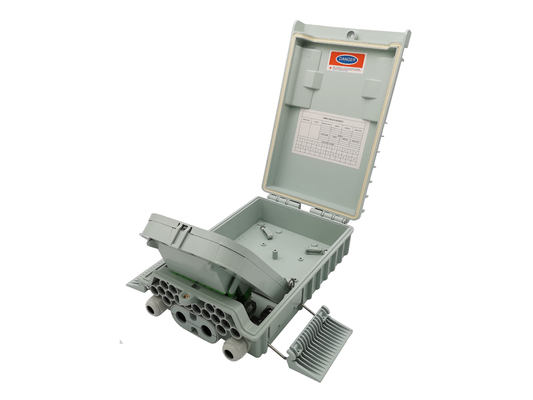

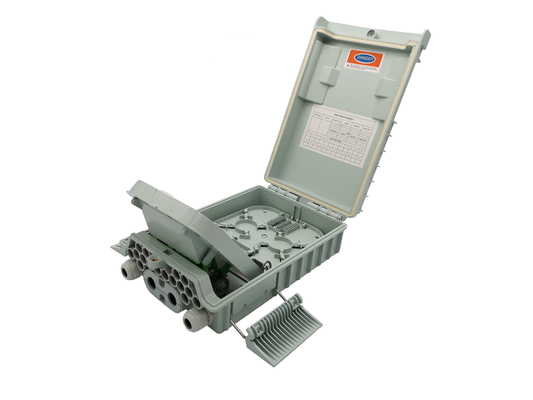

NAP BOX 16 Ports Exterior Outdoor Fiber Optic Termination Box for 2 Pcs 1:8 Spitter
ODP FDB0216W type Fiber Optic Splitter Distribution Box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
|Max capacity||1x8 micro mini plc splitter 2 pieces|
|SC simplex adapter 16 pieces|
|Fusion splice 16fibers|
Return loss:≥50dB(upc); ≥60dB(APC)
Life of insertion and extraction:>1000 times
The grounding device is isolated with the cabinet, isolation resistance is less than 2MΩ/500V(DC); IR≥2MΩ/500V
The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture,no flashover; U≥3000V

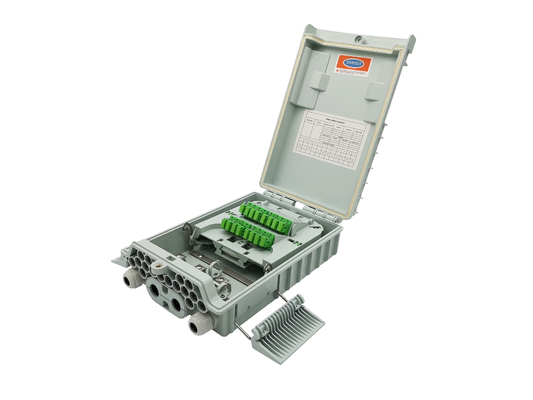

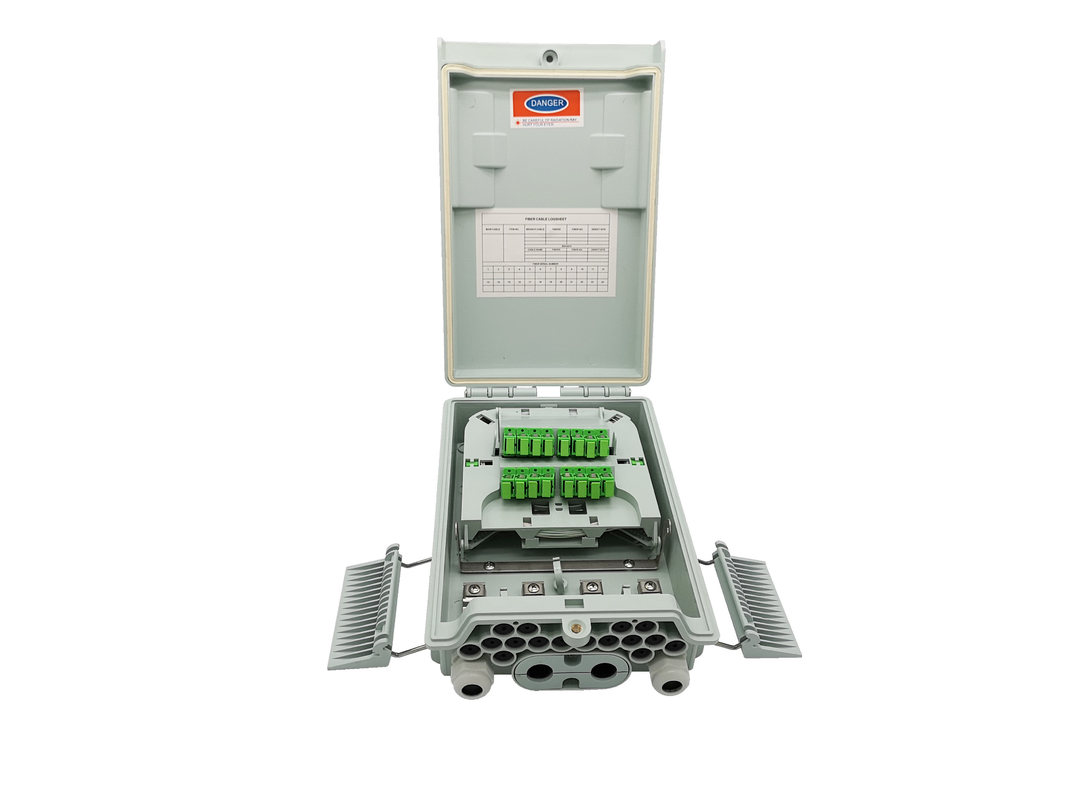

3 Layers inner parts: adapter plate / fusion splice tray / fiber storage and management area
1. Adapter plate:
The adapter plate can max.16pcs SC adapter 4ways, no need screws to fix it.
The upper plate can be flip up to easy install or un-install operation
The back of the plate is for splitter input and output fix, there is 2 SC adapter fixtion for splitter input, and there is slot for splitter steel tube fixtion, and enough space for 1meter long pigtail storage.
2. Fusion splice tray
the plate / tray can fusion splice max. 16 cores single fiber, and enough space for fiber storage.
3. Fiber storage and management area
metal cable ties to fix the entry cable, enough space for rebundant fiber routing and management.
all the plates are mounted on the metal strips which have hole at both sides.
Cble ports: 1 mid span port, 2 cable glands, 16 outputs for ftth cable 2x3mm
Total box is ABS+PC material, ROHS certified, waterproof outdoor use, IP65 grade.
1.Total enclosed structure with brackets and metal screw
2. Material: PC+ABS,wet-proof,water-proof,dust-proof,anti-aging,protection level up to IP65.
3.Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
4.Cable,pigtails,patch cords are running through own path without disturbing each other,cassette type SC adaptor installation, easy maintenance.
5. Distribution panel can be flipped up, feeder cable can be placed by express port, easy for maintenance and installation.
6. Wall-mounted or poled-mounted, both indoor and outdoor use.
Screw, base, cover, connecting screw, rubber seal, lock blot, door clip, door clip conecting bracket, loop ring, flap fixed bracket, flip plate A/B/C, flip bracket, fiber fixer, grouding bracket, waterproof blocker, cable exit mat,etc.
