ABS PLC Fiber Optic Splitter Box 7 - 10 Mm Cable Diameter For FTTH GON Network

ABS PLC Fiber Optic Splitter Box 7 - 10 Mm Cable Diameter For FTTH GON Network

  • High Light

    fiber optic closure

    ,

    splitter distribution box

  • Adapter
    SC Or LC Duplex
  • Capacity
    16cores Bunchy Fiber
  • Output
    16 Pieces Of 2*3mm Ftth Drop Cable
  • Cable Inport
    2 Pcs Cable Glands
  • PLC Splitter
    1:2, 1:4, 1:8, 1:16 Micro Splitter
  • Dimension
    260*320*90 Mm
  • Material
    PC+ABS
  • Color
    White
  • Cable Diameter
    7-10 Mm
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO, SGS, ROHS
  • Model Number
    FDB0216A-LGX-WG
  • Minimum Order Quantity
    100 pcs
  • Price
    negotiable
  • Packaging Details
    1 pc per box, 10 pcs per carton shipping box
  • Delivery Time
    5-8 working days
  • Payment Terms
    T/T, Western Union, MoneyGram
  • Supply Ability
    10000pcs per month

ABS PLC Fiber Optic Splitter Box 7 - 10 Mm Cable Diameter For FTTH GON Network

ABS IP68 1:16 Fiber Optic Cable PLC Splitter DistributionTermination Box For FTTH GON Network





YINGDA FTTH Fiber Customer Termination Box is used in the end termination of residential buildings and villas, to fix and splice with pigtails; Hinge and convenient press-pull button lock design; Wall mounted with mechanical protection function.

ABS PLC Fiber Optic Splitter Box 7 - 10 Mm Cable Diameter For FTTH GON Network 0ABS PLC Fiber Optic Splitter Box 7 - 10 Mm Cable Diameter For FTTH GON Network 1

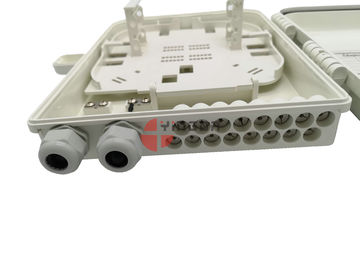

Cable entry: cable or straight through                                  LGX cassette slot max 2pcs 1:8

                    / uncut / express port ;                                       or 1pc 1:16 with SC adapters



ABS PLC Fiber Optic Splitter Box 7 - 10 Mm Cable Diameter For FTTH GON Network 2ABS PLC Fiber Optic Splitter Box 7 - 10 Mm Cable Diameter For FTTH GON Network 3

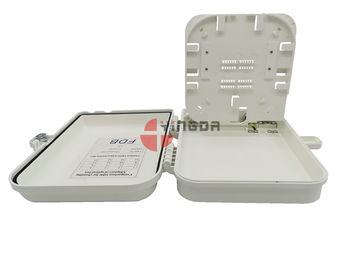

With standard accessory,grounding wire                   90 degree rotate tray for conveninent oepration

ABS PLC Fiber Optic Splitter Box 7 - 10 Mm Cable Diameter For FTTH GON Network 4ABS PLC Fiber Optic Splitter Box 7 - 10 Mm Cable Diameter For FTTH GON Network 5

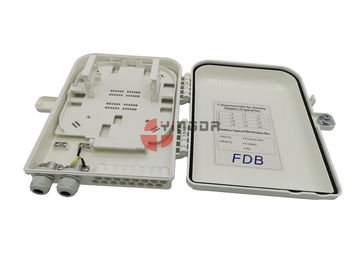

LGX cassette is clip in the holder, stable               all cable ports with rubber gromments for seal



ABS PLC Fiber Optic Splitter Box 7 - 10 Mm Cable Diameter For FTTH GON Network 6ABS PLC Fiber Optic Splitter Box 7 - 10 Mm Cable Diameter For FTTH GON Network 7

box is closed with key and buckles, anti-thief         box with label mark for cable management and future use



Specification

Model FDB0216A
Dimension 260*320*90 mm
Cable ports 2 in, 16 out
Cable diameter In :7-10mm , out: 2*3.0mm or indoor cable
PLC split ratio 1x2, 1x4, 1x8,1x16 micro splitter
Net weight 1.4kg
Material PC / ABS
Color White



Package information

Model FDB0216A
Carton quantity 10pcs
Carton size 56*36*62cm
Carton weight 15.6kg





Features

  • The box is made of high impact plastic PC material, high strength,good quality
  • Can use in outdoor harsh environment -40~+85°C
  • Can maximum hold 16pcs SC or LC duplex adapters
  • Indoor or outdoor pole-mounting or wall-mounting
  • Can install adapter, pigtails or plc splitter at factory
  • Can use micro splitter 1x8 or 1x16
  • 2inports, and 16outports
  • Waterproof class IP65
  • Max capacity 16cores
  • OEM or ODM ok
  • 100% test before shipment

Application

  1. Widely used in FTTH access network.
  2. Telecommunication Networks
  3. Data communications Networks
  4. Local Area Networks
  5. CATV Networks
