Plastic FTTH Drop Cable Fiber Optic Splitter Box 2 In 8 Out Port Indoor / Outdoor

Plastic FTTH Drop Cable Fiber Optic Splitter Box 2 In 8 Out Port Indoor / Outdoor

  • High Light

    fiber optic closure

    ,

    splitter distribution box

  • Material
    ABS+PC
  • Color
    White
  • Capacity
    FTTH Drop Cable 8 Cores
  • Cable Port
    2In 8Out
  • Dimension
    240*195*66 Mm
  • Adapter
    8PCS SC Simplex
  • Installation
    Wall Mount, Pole Mount
  • Usage
    Indoor Or Outdoor
  • PLC Splitter
    1x2, 1x4, 1x8 Mini Splitter
  • Sample
    OK
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO
  • Model Number
    FDB0208H
  • Minimum Order Quantity
    100 PCS
  • Price
    Negotiable
  • Packaging Details
    1pc/box, 10pcs per carton box
  • Delivery Time
    5-8 working days
  • Payment Terms
    L/C, T/T, Western Union, MoneyGram
  • Supply Ability
    10000 pcs per month

Plastic FTTH Drop Cable Fiber Optic Splitter Box 2 In 8 Out Port Indoor / Outdoor

1*8 ABS Plastic FTTH Drop Cable Fiber Optic Splitter Distribution Termination Box





FDB0208H is designed to connect feeder / distribution cable to subscriber's drop cable using
PLC splitter in FTTx networks. The rear tray is for splicing a fiber of feeder cable with PLC splitter
and the front tray is for connecting subscriber's drop cable through adaptor plate on the tray. It is
excellent sealing performance,reusable. Protection grade is IP 68. It can use SC or LC duplex adapter,
and maximum micro splitter 1x8.

Features
  • 2inputs, 8outputs
  • Industrial standard user interface max. 8pcs SC/LC duplex
  • Made of high impact engineering plastic
  • Can accommodate 1x4, 1x8 PLC blockless splitter
  • Anti-UV, Ultra violet resistant and rainfall resistant
  • Outdoor wall mount or pole mount
  • Up to 8FTTH drops


Showing more photos

Plastic FTTH Drop Cable Fiber Optic Splitter Box 2 In 8 Out Port Indoor / Outdoor 0

Plastic FTTH Drop Cable Fiber Optic Splitter Box 2 In 8 Out Port Indoor / Outdoor 1Plastic FTTH Drop Cable Fiber Optic Splitter Box 2 In 8 Out Port Indoor / Outdoor 2

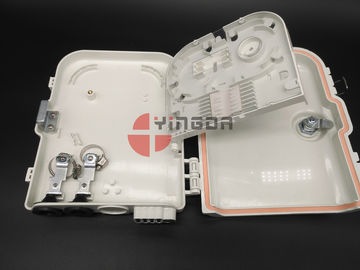

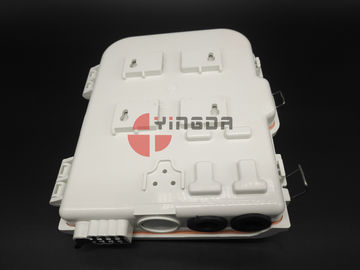

8pcs SC simplex adapter panel, 2way;                8 cores fusion splice tray, 2slots for steel tube splitter



Plastic FTTH Drop Cable Fiber Optic Splitter Box 2 In 8 Out Port Indoor / Outdoor 3Plastic FTTH Drop Cable Fiber Optic Splitter Box 2 In 8 Out Port Indoor / Outdoor 4

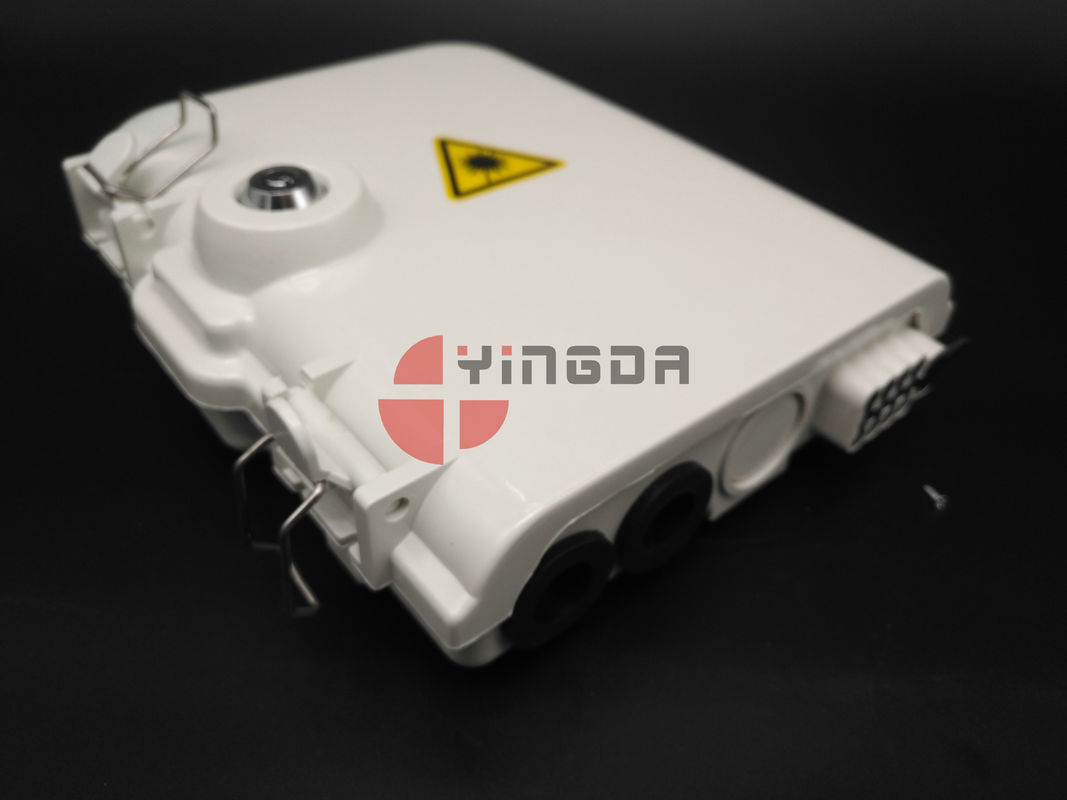

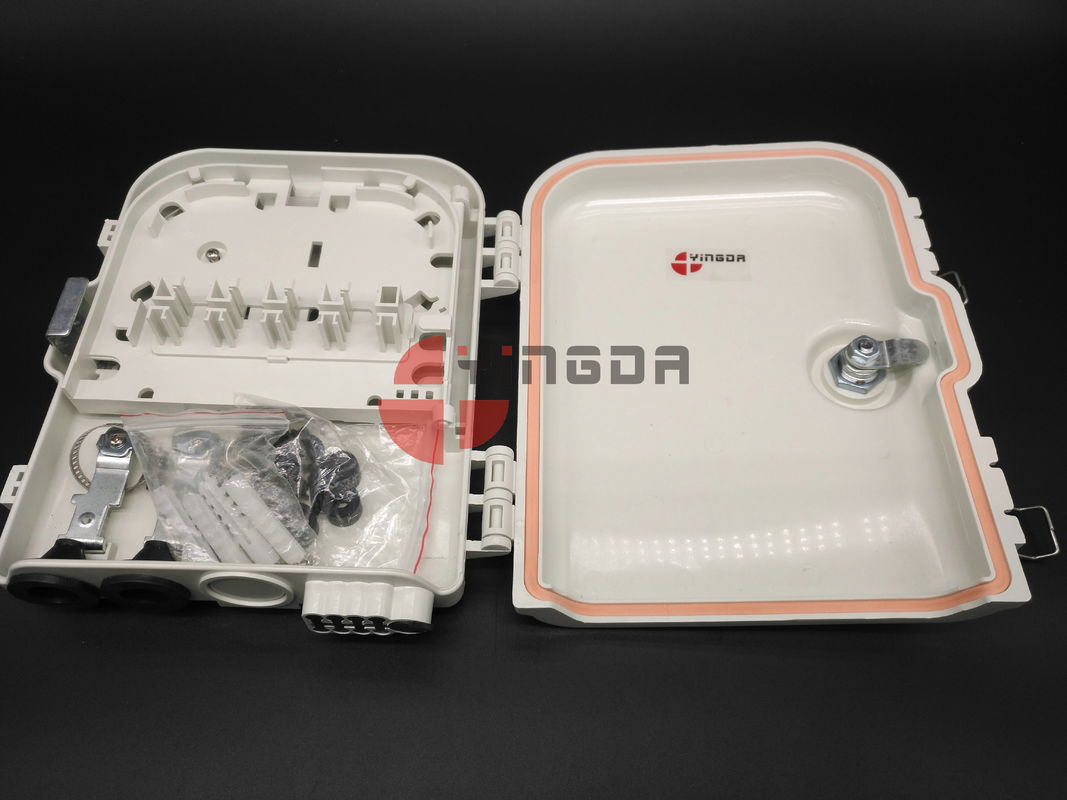

2 inputs, 8 outputs, metal cable fixing parts with clamp, waterproof ring of IP65, key+2buckles for lock



Specification

Model FDB0208H
Dimension (W*D*H)mm 240*195*66
Max. Capacity PLC 1x4 (2pc); PLC 1x8(1pc)
Cable ports 2inputs (1 more optional), 8outputs
Cable diameter(mm) In:Φ12, out:Φ2*3
Adapter Max. 8pcs SC



If any interests, please contact with us at sales@yingdapc.com or skype:yingdapc1.
