16 Outputs Fiber Optic Splitter Box With LGX Module Splitter Outdoor Waterproof
  • name
  • name
  • name
  • name

16 Outputs Fiber Optic Splitter Box With LGX Module Splitter Outdoor Waterproof

MOQ: 200pcs
Price: 1.0USD-18.6USD
Standard Packaging: 10 pcs / carton box
Delivery Period: 5-8 working days
Payment Method: T/T, Western Union, L/C
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO
Model Number
FDB0216M
Material:
PC+ABS
Color:
Grey
Dimension:
340*220*95mm
Cable Ports:
16 Outputs And 1 Uncut Port
Reserved Port:
2 Ports For Cable Gland
PLC Splitter:
Max. LGX 1*16
Splice Tray:
No
Application:
Outdoor IP68
Installation:
Wall Mount, Pole Mount
Flame Rating:
UL94-V0
Highlight:

fiber optic closure

,

optical distribution box

Product Description

16 Outputs Optic Fiber Splitter Closure With LGX Module Splitter Outdoor Waterproof



FDB0216M fiber optic distribution box can be done splice tray type, LGX PLC splitter type and adapter type. it is used as a splicing closure and a termination point for the feeder cable to connect with drop cable in FTTX network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.





Applications

  • Wall mounting and pole mounting installation
  • FTTH pre-installation and filed installation
  • 2*3mm indoor FTTH drop cable and outdoor figure-8 FTTH self-supporting drop cable



Specifications

Model FDB0216M
Material PC+ABS
Dimension 345*220*95mm
Cable Port 1 uncut port, 2 reserved cable entrance
Cable Dimension uncut port: 10-16.5mm; 2 reserved port: 8-16.5mm
Cable Outport 16 outputs for drop cable
Sealing structure Mechanical sealing(buckle and screw)
PLC Splitter Max. LGX 1x16 Splitter, 2 pcs 1*8 PLC Splitter
Color Gray
IP Grade IP65
Application Wall mount, pole mount
Weight 1.2KGS



Feature

  • Max. LGX 1*16 Splitter can be installed as an option
  • Water-proof design with IP-65 Protection Level.
  • Mechanical sealing structure and mid-span cable entry.
  • Integrated with 1*16 LGX Module PLC splitter plate.
  • All stainless metal plate and anti-rusting bolts, nuts
  • Fiber bend radius control more than 40mm
  • Suitable for the fusion splicer or mechanical splice
  • 16 ports cable entrance for drop cable
  • Pole mounted and wall mounted.

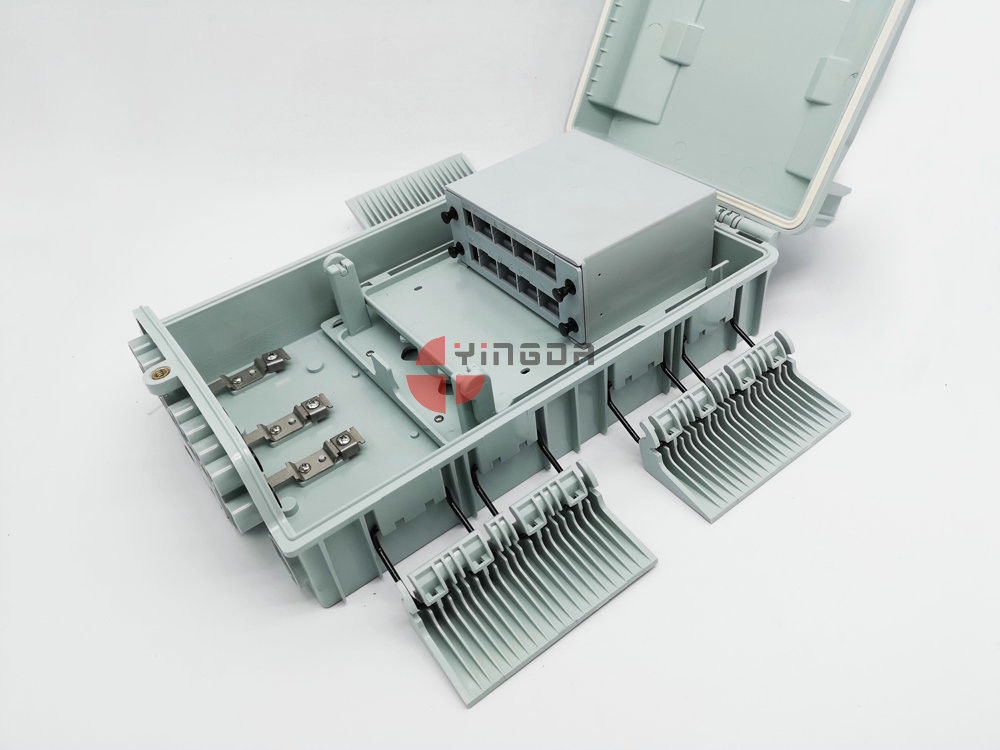

16 Outputs Fiber Optic Splitter Box With LGX Module Splitter Outdoor Waterproof 0

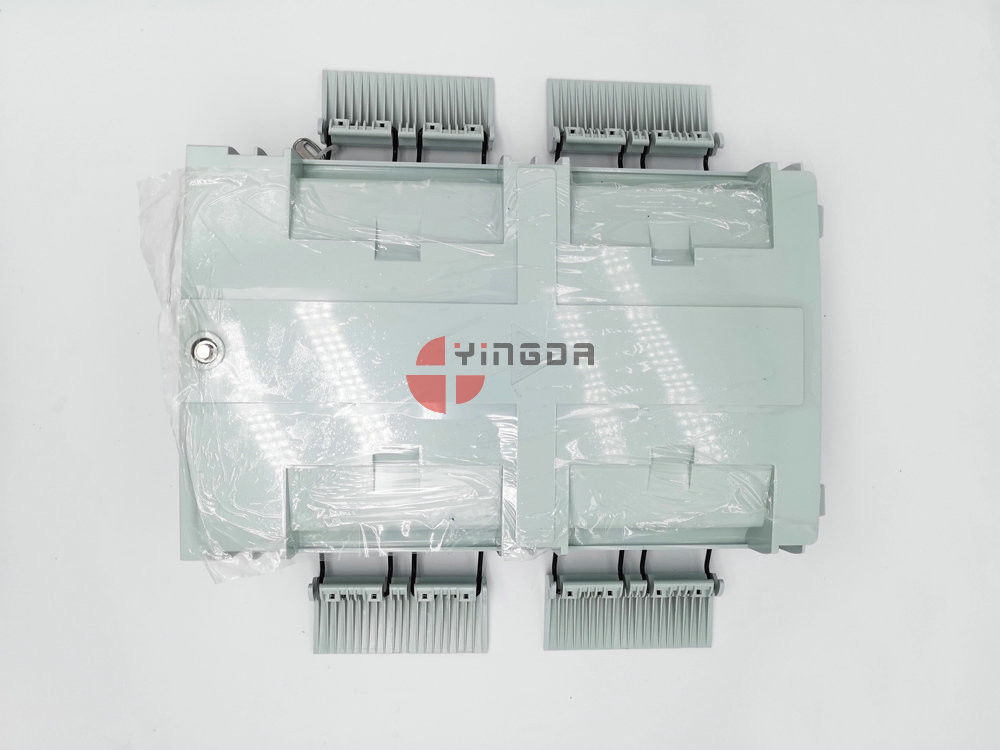

16 Outputs Fiber Optic Splitter Box With LGX Module Splitter Outdoor Waterproof 1

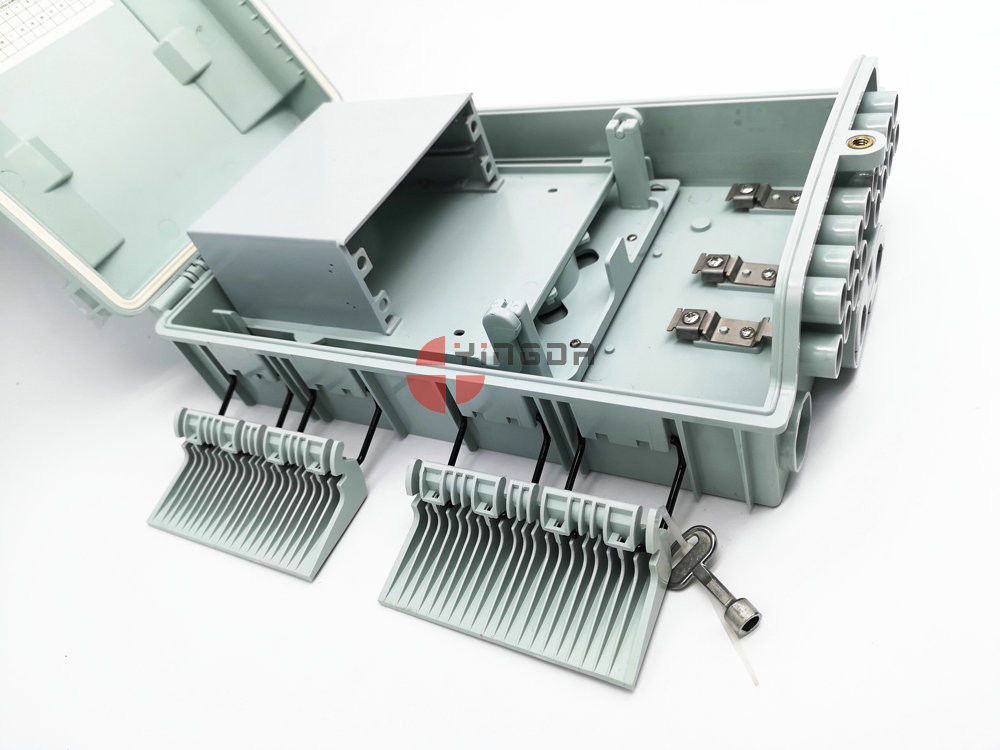

16 Outputs Fiber Optic Splitter Box With LGX Module Splitter Outdoor Waterproof 2

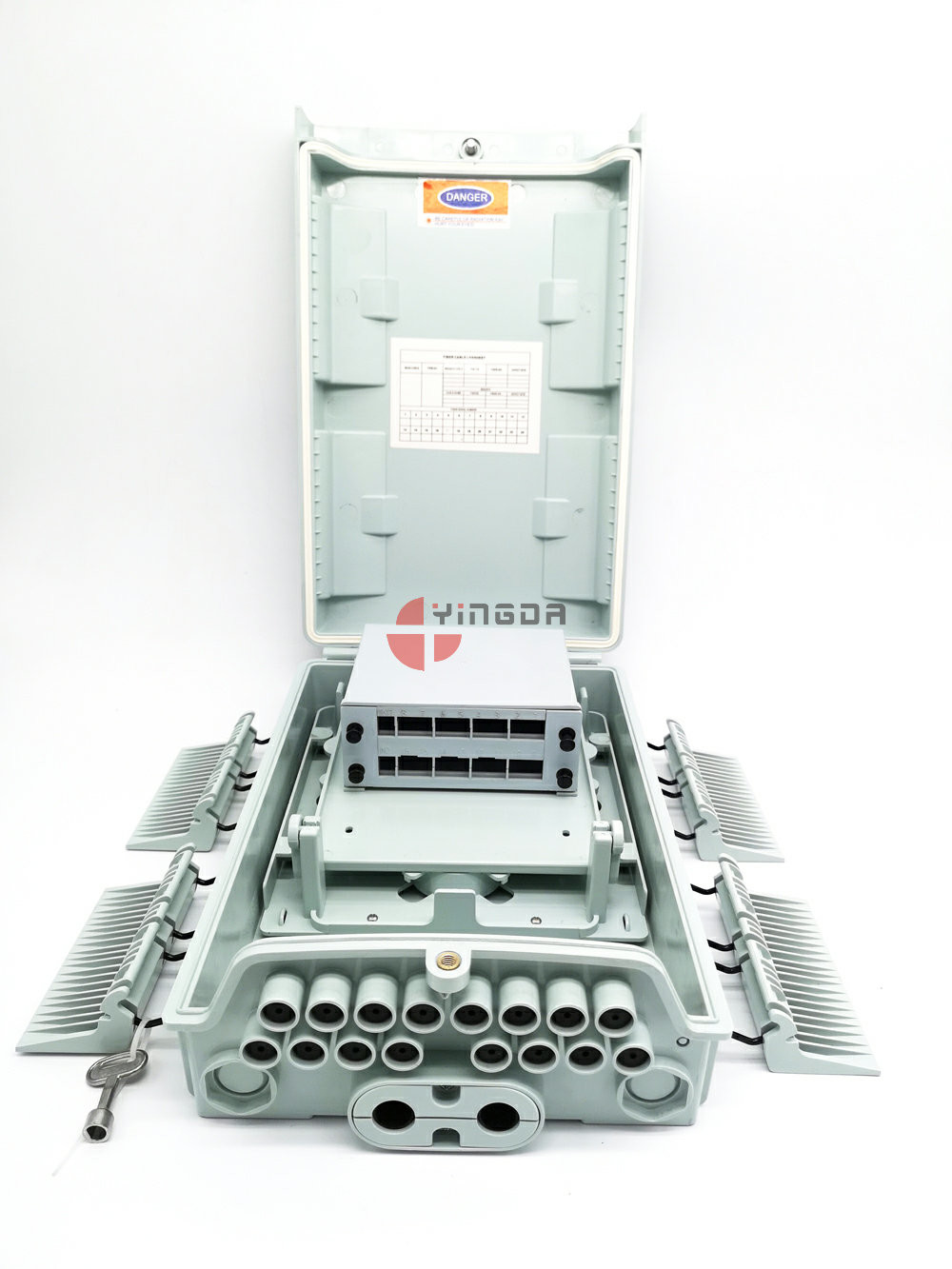

16 Outputs Fiber Optic Splitter Box With LGX Module Splitter Outdoor Waterproof 3

16 Outputs Fiber Optic Splitter Box With LGX Module Splitter Outdoor Waterproof 4



LGX Module spliter cassette

16 Outputs Fiber Optic Splitter Box With LGX Module Splitter Outdoor Waterproof 516 Outputs Fiber Optic Splitter Box With LGX Module Splitter Outdoor Waterproof 6

16 Outputs Fiber Optic Splitter Box With LGX Module Splitter Outdoor Waterproof 716 Outputs Fiber Optic Splitter Box With LGX Module Splitter Outdoor Waterproof 8

16 Outputs Fiber Optic Splitter Box With LGX Module Splitter Outdoor Waterproof 916 Outputs Fiber Optic Splitter Box With LGX Module Splitter Outdoor Waterproof 10



Accessories

Standard Accessories Splice cassette and cable management tool, installation nuts and bolts, protection sleeves, hose clamp, cable tube, cover, holder, wrench, rubber seal for cable entrance.
Optional Accessories Pole mounted kits
