1*16 LGX Splitter Fiber Optic Distribution Box 16 Ports with Uncut Port IP68

Place of Origin china
Brand Name YINGDA
Certification ISO
Model Number FDB0216M
Minimum Order Quantity 100PCS
Price Negotiable
Packaging Details 10 pcs / carton box
Delivery Time 5-8 working days
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material PC+ABS Dimension 340*220*95mm
Color Gray Or Black Output 16 Ports For Drop Cable
Input 1 Uncut Port Splitter LGX Module 1*16(max.)
Splice Tray No Application Outdoor IP68
High Light

optical distribution box

,

splitter distribution box

Leave a Message
Product Description

1*16 LGX Splitter Fiber Optic Distribution Box 16 Ports with Uncut Port IP68



FDB0216M fiber optic distribution box can be done splice tray type, LGX PLC splitter type and adapter type. it is used as a splicing closure and a termination point for the feeder cable to connect with drop cable in FTTX network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.



Feature

  • Water-proof design with IP-65 Protection Level.
  • Integrated with 1*16 LGX Module PLC splitter plate.
  • All stainless metal plate and anti-rusting bolts, nuts
  • Fiber bend radius control more than 40mm
  • Suitable for the fusion splicer or mechanical splice
  • 2 Pcs of 1*8 Splitter can be installed as an option
  • Mechanical sealing structure and mid-span cable entry.
  • 16 ports cable entrance for drop cable



Specifications

Model FDB0216M
Material PC+ABS
Dimension 345*220*95mm
Cable Entry 1 uncut port: 10-16.5mm; 2 reserved cable entrance: 8-16.5mm
Drop cable port 16 ports
Applicable cable diameter 2*3mm FTTH drop cable, 2*5mm figure 8 FTTH drop cable
Sealing structure Mechanical sealing
PLC Splitter Max. LGX module 1x16 Splitter, or 2pcs 1*8/1*4/1*2 plc splitters
Color Gray
IP Grade IP68
Application Wall mount, pole mount
Weight 1.7KGS
Midspan entry Yes
Storage (tube/micro cable) Yes

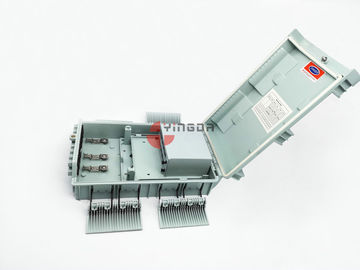

1*16 LGX Splitter Fiber Optic Distribution Box 16 Ports with Uncut Port IP68 0

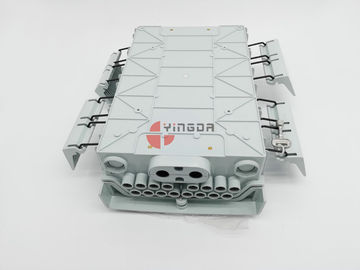

1*16 LGX Splitter Fiber Optic Distribution Box 16 Ports with Uncut Port IP68 1

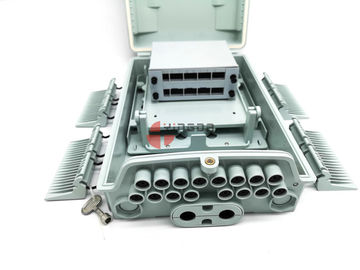

1*16 LGX Splitter Fiber Optic Distribution Box 16 Ports with Uncut Port IP68 2

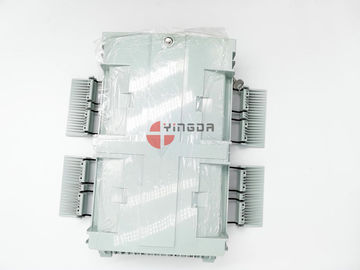

1*16 LGX Splitter Fiber Optic Distribution Box 16 Ports with Uncut Port IP68 3



                       LGX Module PLC                                                        Cover

1*16 LGX Splitter Fiber Optic Distribution Box 16 Ports with Uncut Port IP68 41*16 LGX Splitter Fiber Optic Distribution Box 16 Ports with Uncut Port IP68 5



                      Buckle and Key                                                        Accessories

1*16 LGX Splitter Fiber Optic Distribution Box 16 Ports with Uncut Port IP68 61*16 LGX Splitter Fiber Optic Distribution Box 16 Ports with Uncut Port IP68 7



Applications

  • Wall mounting and pole mounting installation
  • FTTH pre-installation and filed installation
  • 2*3mm indoor FTTH drop cable and outdoor figure-8 FTTH self-supporting drop cable



Standard Accessories

Splice cassette and cable management tool, installation nuts and bolts, protection sleeves hose clamp, cable tube, wrench, cover, holder, rubber seal for cable entrance.



Optional Accessories---Pole ring
