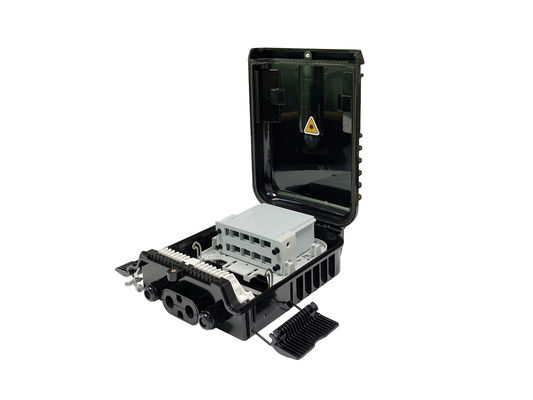

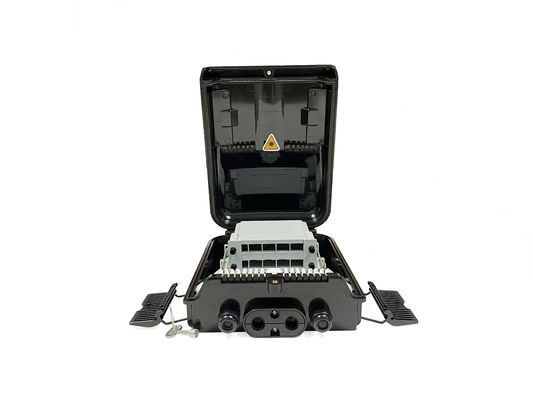

1*16 SC Fiber Optic Splitter Box for CCTV FTTH GPON Pole Wall Mount PC
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color | Black | Insertion Loss | <0.2dB |
|---|---|---|---|
| Connector Type | SC/APC | Waterproof | IP65 |
| Cable Type | 2*3mm Drop Cable | Application | FTTH FTTB FTTX Network |
| High Light | fiber optic closure,optical distribution box |
||
Product Description
Waterproof Mini SC Reinforced Connector FTTA Patch Cord 7mm 3Mts LSZH black
MINI-SC waterproof reinforced connector, is a small high waterproof SC single core waterproof connector. Built-in SC connector core, to better reduce the size of the waterproof connector. It is made of special plastic shell (which is resistant to high and low temperature, acid and alkali corrosion resistance, anti-UV) and auxiliary waterproof rubber pad, its sealing waterproof performance up to IP67 level. The unique screw mount design is compatible with the fiber optic waterproof ports of Huawei equipment ports. Suitable for 3.0-5.0mm single-core round cable or FTTH fiber access cable.
Connector Stuctrue:
| BREAKDOWN | |||
| Item | Description | Material | Q’ty |
| 1 | Rush cap | PEI +30% FV | 1 |
| 2 | Clamp for the cap headband | Polyamide | 1 |
| 3 | O-ring plug rush (15mm) | Silicone | 1 |
| 4 | Ferrule holder | Stainless teel | 1 |
| 4b | White cody of SC connector | -- | 1 |
| 4c | Standard SC ferrule spring | Zirconio | 1 |
| 5 | Hoolded alignment | PEI +30% FV | 1 |
| 6 | Body of connector | PEI +30% FV | 1 |
| 6b | Metal insert for crimping the aramid | Stainless steel | 1 |
| 6c | Crimp ring for aramid | Brass | 1 |
| 7 | Spring on the body of connector(L020MM, D=10MM) | Stainless steel | 1 |
| 8 | O-ring on the connector body(8mm) | Silicone | 1 |
| 8b | O-ring on the connector body(7mm) | Silicone | 1 |
| 9 | Hood for connector anchorage | PEI +30% FV | 1 |
| 10 | Clip ring | PEI +30% FV | 1 |
| 11 | Heat shrink sleeve | Poleolofine | 1 |
| 12 | Connector boot | Thermoplastic | 1 |
| 13 | Fiber 900um | -- | 1 |
Features :
- Spiral clamping mechanism ensures long-term reliable connection
- Guide mechanism, can be blinded with one hand, simple and quick, connect and install
- Seal design: It is waterproof, dust-proof, anti-corrosion and so on.
- Compact size, easy to operate, durable
- Through the wall seal design
- Reduce welding, connect directly to achieve interconnection
Product parameters:
- Insertion loss: ≤ 0.2db
- Repeat ability: ≤ 0.5db
- Number of plugs: ≥ 1000
- Operating temperature: -40 to 85°C
- Waterproof grade: IP67
Application:
- Fiber optic communications in harsh outdoor environments
- Outdoor communication equipment connection
- Huawei waterproof fiber equipment SC port
- Remote wireless base station
- FTTx wiring project
More information, pls send mail to sales@yingdapc.com or add skype:yingdapc1.
