3 In 24 Out Fiber Optic Splitter Box For Drop Cable , Outdoor 96 Cores With Uncut Port
  • name
  • name
  • name
  • name

3 In 24 Out Fiber Optic Splitter Box For Drop Cable , Outdoor 96 Cores With Uncut Port

MOQ: 100pcs
Price: 1.0USD-18.6USD
Standard Packaging: 100K per month
Payment Method: T/T, Western Union, L/C
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO
Model Number
FDB0224M
Dimension:
340*220*95mm
Color:
Gray/Black
Material:
PC/ABS
Cable Output:
16outputs For Drop Cable
Cable Input:
1uncut Port(express Port), 2 Reserved Ports
Optional Port:
2pcs Cable Gland
Output Diameter:
2x3mm
Adapter:
Max. 24pcs SC Simplex
Max. Capacity:
96 Splicing Fibers
Splice Tray:
4pcs
Installation:
Wall Mount, Pole Mount
Splitter:
Max. Mini Module PLC 1x16
Highlight:

optical distribution box

,

splitter distribution box

Product Description

3 In 24 Out Fiber Optic Splitter Box For Drop Cable, Outdoor 96 Cores With Uncut Port



This type optical distribution box is designed to seal with screws and buckles. The compact size and flip-over cover bring easy operation as well as complete function. The splice trays are jointed with a hinge at one side, which makes the operation in each tray easier. You can take each tray out, after splice, then fix it in closure. It is designed to prevent from operation damage.



Feature

  • Water-proof design with IP-65 Protection Level.
  • Integrated with flap-up splice cassette and adaptor holder
  • All stainless metal plate and anti-rusting bolts, nuts
  • Fiber bend radius control more than 40mm
  • Suitable for the fusion splicer or mechanical splice
  • 3 Pcs of 1*8 or 1pcs 1*16 Splitter can be installed as an option
  • Mechanical sealing structure and mid-span cable entry.
  • 24 ports cable entrance for drop cable
  • 24 adapter for drop cable patching



Specifications

Model FDB0224M
Material PC+ABS
Dimension 345*220*95mm
Cable Port 1 uncut port, 2 reserved cable entrance
Cable Dimension uncut port: 10-16.5mm; 2 reserved port: 8-16.5mm
Cable Outport 24 outputs for drop cable
Max. Capacity 96 Fibers (4 trays, 24F/tray)
Sealing structure Mechanical sealing(buckle and screw)
PLC Splitter Max. micro 1x16 Splitter, 3 pcs 1*8 PLC Splitter
Color Gray
IP Grade IP65
Application Wall mount, pole mount
Weight 1.7KGS



Applications

  • Wall mounting and pole mounting installation
  • FTTH pre-installation and filed installation
  • 2*3mm indoor FTTH drop cable and outdoor figure-8 FTTH self-supporting drop cable



Product Details



3 In 24 Out Fiber Optic Splitter Box For Drop Cable , Outdoor 96 Cores With Uncut Port 03 In 24 Out Fiber Optic Splitter Box For Drop Cable , Outdoor 96 Cores With Uncut Port 1

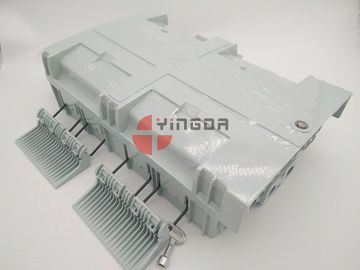

The appearance of the box



3 In 24 Out Fiber Optic Splitter Box For Drop Cable , Outdoor 96 Cores With Uncut Port 23 In 24 Out Fiber Optic Splitter Box For Drop Cable , Outdoor 96 Cores With Uncut Port 3

This distribution box is sealed with key and buckles(as the 1st picture).

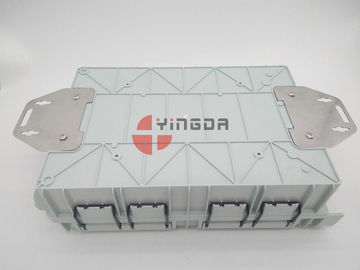

The back of box can be wall mounted and pole mounted according to clients' requirement.



3 In 24 Out Fiber Optic Splitter Box For Drop Cable , Outdoor 96 Cores With Uncut Port 43 In 24 Out Fiber Optic Splitter Box For Drop Cable , Outdoor 96 Cores With Uncut Port 5

The interior showing, this box integrates fiber splicing, splitting, distribution, storage and cable connection.



3 In 24 Out Fiber Optic Splitter Box For Drop Cable , Outdoor 96 Cores With Uncut Port 63 In 24 Out Fiber Optic Splitter Box For Drop Cable , Outdoor 96 Cores With Uncut Port 7

Show the details of splice trays. A total of 4pcs splice trays which can be flipped-up.



3 In 24 Out Fiber Optic Splitter Box For Drop Cable , Outdoor 96 Cores With Uncut Port 83 In 24 Out Fiber Optic Splitter Box For Drop Cable , Outdoor 96 Cores With Uncut Port 9

Each tray is for splicing 24 fibers max. There is a groove on the tray to put the steel tube of mini PLC splitter.



3 In 24 Out Fiber Optic Splitter Box For Drop Cable , Outdoor 96 Cores With Uncut Port 103 In 24 Out Fiber Optic Splitter Box For Drop Cable , Outdoor 96 Cores With Uncut Port 11

24 outports for drop cable, the plug in the outport can be taken out.



3 In 24 Out Fiber Optic Splitter Box For Drop Cable , Outdoor 96 Cores With Uncut Port 123 In 24 Out Fiber Optic Splitter Box For Drop Cable , Outdoor 96 Cores With Uncut Port 13

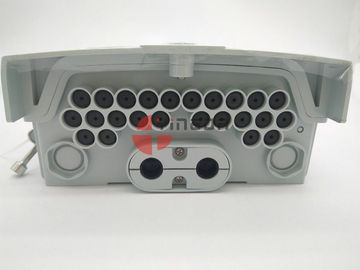

All ports showing.

2 round reserved ports(as the red marked in the picture) can be installed cable gland if clients require.



3 In 24 Out Fiber Optic Splitter Box For Drop Cable , Outdoor 96 Cores With Uncut Port 143 In 24 Out Fiber Optic Splitter Box For Drop Cable , Outdoor 96 Cores With Uncut Port 15

Standard Accessories
Splice cassette and cable management tool, installation nuts and bolts, protection sleeves hose clamp, cable tube, wrench, cover, holder, rubber seal for cable entrance



Optional Accessories---Pole ring



3 In 24 Out Fiber Optic Splitter Box For Drop Cable , Outdoor 96 Cores With Uncut Port 163 In 24 Out Fiber Optic Splitter Box For Drop Cable , Outdoor 96 Cores With Uncut Port 17

Packing box.



If any interest, please feel free to contact with us.
