Uncut Port Fiber Optic Splitter Box 96 Cores Outdoor Waterproof 1*8 1*16 Splitter

Uncut Port Fiber Optic Splitter Box 96 Cores Outdoor Waterproof 1*8 1*16 Splitter

  • High Light

    optical distribution box

    ,

    splitter distribution box

  • Material
    PC+ABS
  • Color
    Grey Or Black
  • Dimension
    340*220*95mm
  • Max. Adapter
    24pcs SC
  • Max. Capacity
    96cores
  • Max. Splice Tray
    4pcs
  • Outport
    16 Drop Cable Ports
  • Input
    1 Uncut Port
  • Optional Port
    2pcs Cable Gland
  • Usage
    Wall Mount, Pole Mount
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO
  • Model Number
    FDB0216M
  • Minimum Order Quantity
    100pcs
  • Price
    Negotiable
  • Packaging Details
    1pc/box
  • Delivery Time
    5-8 working days
  • Payment Terms
    T/T, Western Union, L/C
  • Supply Ability
    100k per month

Uncut Port Fiber Optic Splitter Box 96 Cores Outdoor Waterproof 1*8 1*16 Splitter

Uncut Port Fiber Optic Splitter Box 96 Cores Outdoor Waterproof 1*8 1*16 Splitter



FTTH drop cable fiber optic splice & splitter closure features with ruggedness, which is ested under harsh conditions and stand up to even the most severe conditions of moisture, vibration and extreme temperatures. Humanized design helps user get better experience and safer operating environment.



Feature

  • Can be used indoor and outdoor, wall mount and pole mount
  • Water-proof design with IP-65 Protection Level.
  • Integrated with 4pcs flap-up splice cassette and adaptor holder
  • All stainless metal plate and anti-rusting bolts, nuts
  • Fiber bend radius control more than 40mm
  • Suitable for the fusion splicer or mechanical splice
  • 2 Pcs of 1*8 Splitter can be installed as an option
  • Mechanical sealing structure and mid-span cable entry.
  • 16 outports for drop cable
  • 24 SC adapters for drop cable patching
  • Max. splice capacity 96 fibers



More details



Uncut Port Fiber Optic Splitter Box 96 Cores Outdoor Waterproof 1*8 1*16 Splitter 0Uncut Port Fiber Optic Splitter Box 96 Cores Outdoor Waterproof 1*8 1*16 Splitter 1

                       Hinge of box                                                          Box side



Uncut Port Fiber Optic Splitter Box 96 Cores Outdoor Waterproof 1*8 1*16 Splitter 2Uncut Port Fiber Optic Splitter Box 96 Cores Outdoor Waterproof 1*8 1*16 Splitter 3

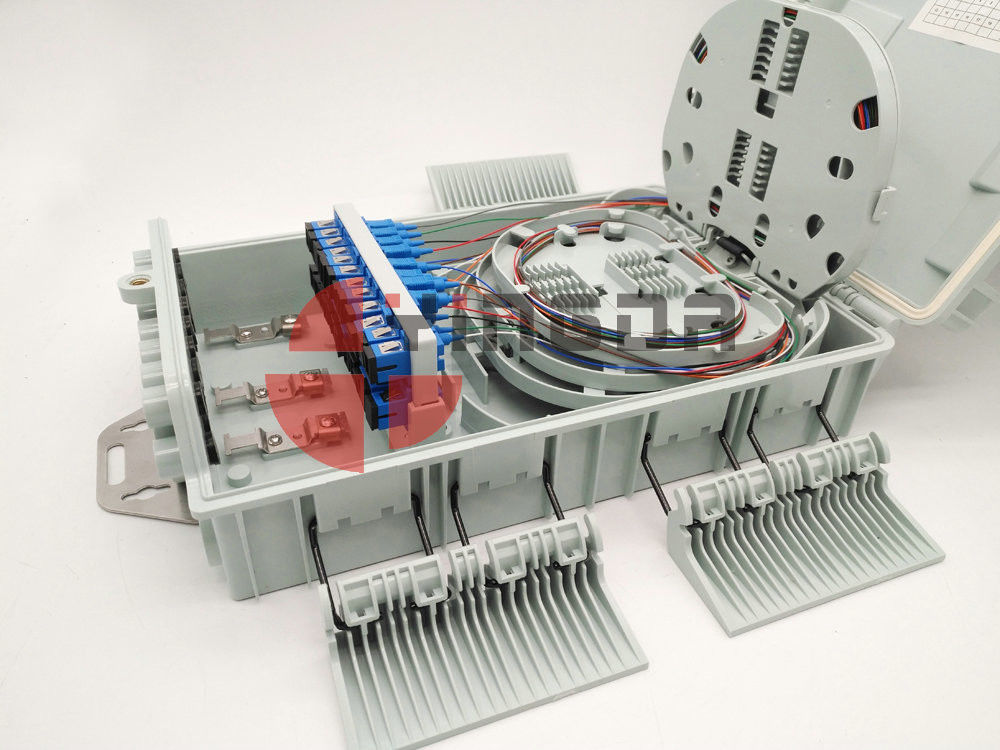

  • Total of 4pcs splice trays. Flap up the splice trays to see the bottom of box.
  • The bottom is designed to coiled and stored fibers if need.
  • There are several grooves on the bottom can be used according to the customer's own needs.



Uncut Port Fiber Optic Splitter Box 96 Cores Outdoor Waterproof 1*8 1*16 Splitter 4Uncut Port Fiber Optic Splitter Box 96 Cores Outdoor Waterproof 1*8 1*16 Splitter 5

  • Each splice tray can splice 24 cores. Fiber can be coiled and stored in the splice tray. There is a groove to put steel tube of mini plc splitter.
  • All metal parts are stainless steel.



Uncut Port Fiber Optic Splitter Box 96 Cores Outdoor Waterproof 1*8 1*16 Splitter 6Uncut Port Fiber Optic Splitter Box 96 Cores Outdoor Waterproof 1*8 1*16 Splitter 7

                          Screw lock                                                                    Cover

  • This box is sealed by screw and buckle. Besides, the cover has a white waterproof seals ring. Which offer the entire box excellent sealing performance.



Uncut Port Fiber Optic Splitter Box 96 Cores Outdoor Waterproof 1*8 1*16 Splitter 8Uncut Port Fiber Optic Splitter Box 96 Cores Outdoor Waterproof 1*8 1*16 Splitter 9

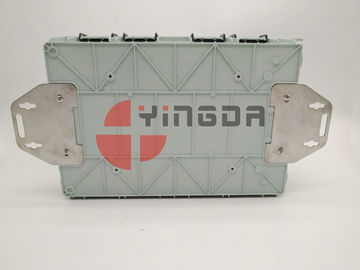

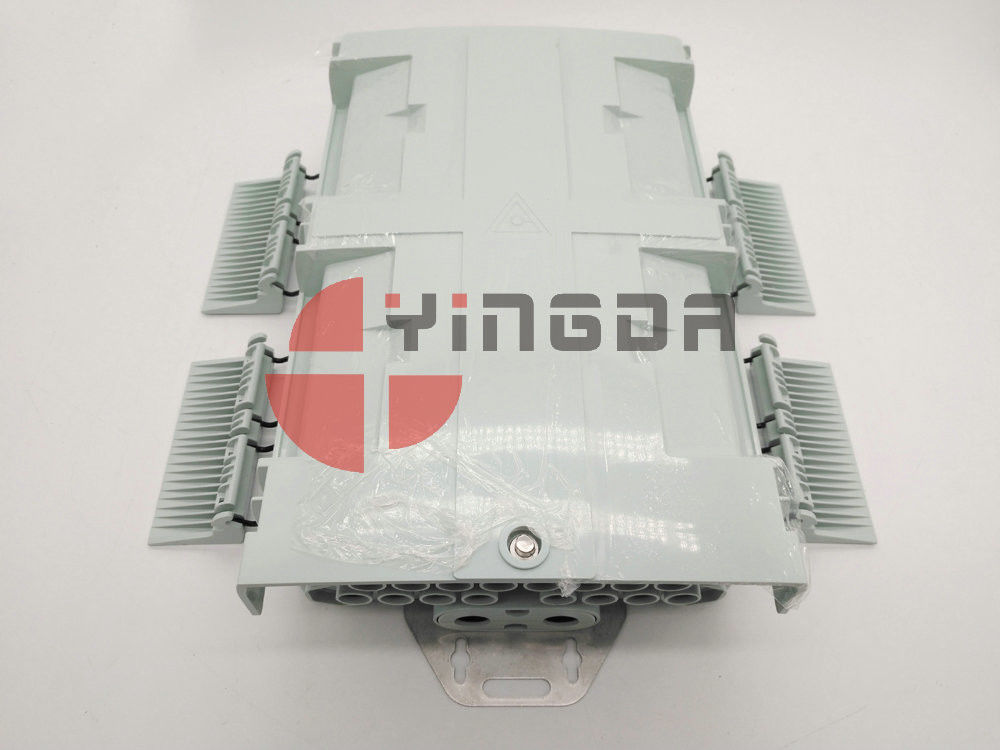

  • The metal parts are the wall mounted accessories. We install the metal parts on the back of box (as the red marked).
  • If need pole mount kits, please tell us.



Uncut Port Fiber Optic Splitter Box 96 Cores Outdoor Waterproof 1*8 1*16 Splitter 10Uncut Port Fiber Optic Splitter Box 96 Cores Outdoor Waterproof 1*8 1*16 Splitter 11

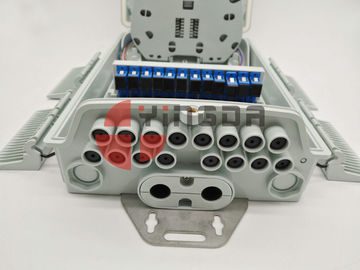

  • On both sides of the uncut port, there are 2 reserved cable entrance. As the red circle marked.
  • Can install the cable gland(picture 2) on the reserved cable entrance.



Specifications

Model FDB0216M
Material PC+ABS
Dimension 345*220*95mm
Cable Entry 1 uncut port: 10-16.5mm; 2 reserved cable entrance: 8-16.5mm
Drop cable port 16 ports
Applicable cable diameter 2*3mm FTTH drop cable, 2*5mm figure 8 FTTH drop cable
Max. Capacity 96 Fibers, 4 trays x 24F
Adapter Max. 24pcs SC simplex
Sealing structure Mechanical sealing
PLC Splitter Max. micro 1x16 Splitterm, or 2pcs 1*8 plc splitters
Color Gray
IP Grade IP65
Application Wall mount, pole mount
Weight 1.7KGS
Midspan entry Yes
Storage (tube/micro cable) Yes



Applications

  • Wall mounting and pole mounting installation
  • FTTH pre-installation and filed installation
  • 2*3mm indoor FTTH drop cable and outdoor figure-8 FTTH self-supporting drop cable



Accessories and packing

Uncut Port Fiber Optic Splitter Box 96 Cores Outdoor Waterproof 1*8 1*16 Splitter 12Uncut Port Fiber Optic Splitter Box 96 Cores Outdoor Waterproof 1*8 1*16 Splitter 13

Standard Accessories

Splice cassette and cable management tool, installation nuts and bolts, protection sleeves hose clamp, cable tube, wrench, cover, holder, rubber seal for cable entrance



Optional Accessories

Pole mount kits
