16 Ports Wall Mount FTTH Fiber Optic Splitter Box 24 Adapters with 96 Fibers IP65

16 Ports Wall Mount FTTH Fiber Optic Splitter Box 24 Adapters with 96 Fibers IP65

  • High Light

    fiber optic closure

    ,

    optical distribution box

  • Dimension
    345*220*95mm
  • IP Grade
    IP65
  • Material
    ABS+PC
  • Color
    Grey Or Black
  • Adapter
    24 Pcs SC Simplex
  • Capacity
    Max. 96 Cores
  • Cable Port
    16 Outputs, 1uncut Port, 2 Optional Port
  • Splice Tray
    4trays X 24 F
  • Installation
    Wall Mount, Pole Mount
  • N.W./KG
    1.7KGS
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO
  • Model Number
    FDB0216M
  • Minimum Order Quantity
    100PCS
  • Price
    Negotiable
  • Packaging Details
    1pc/box
  • Delivery Time
    5-8 working days
  • Payment Terms
    T/T, Western Union

16 Ports Wall Mount FTTH Fiber Optic Splitter Box 24 Adapters with 96 Fibers IP65

16 Ports Wall Mount FTTH Optical Distribution Box 24 Adapters with 96 Fibers IP65



This type optical distribution box is designed to seal with screws and buckles. The compact size and flip-over cover bring easy operation as well as complete function. The splice trays are jointed with a hinge at one side, which makes the operation in each tray easier. You can take each tray out, after splice, then fix it in closure. It is designed to prevent from operation damage.



Applications

  • Wall mounting and pole mounting installation
  • FTTH pre-installation and filed installation
  • 2*3mm indoor FTTH drop cable and outdoor figure-8 FTTH self-supporting drop cable



Features

  • Water-proof design with IP-65 Protection Level.
  • Can be used indoor and outdoor, wall mount and pole mount
  • Integrated with 4pcs flap-up splice cassette and adaptor holder
  • All stainless metal plate and anti-rusting bolts, nuts
  • Fiber bend radius control more than 40mm
  • Suitable for the fusion splicer or mechanical splice
  • 2 Pcs of 1*8 Splitter can be installed as an option
  • Mechanical sealing structure and mid-span cable entry.
  • 16 outports for drop cable



Product Introductions



16 Ports Wall Mount FTTH Fiber Optic Splitter Box 24 Adapters with 96 Fibers IP65 016 Ports Wall Mount FTTH Fiber Optic Splitter Box 24 Adapters with 96 Fibers IP65 1

                                 Overview                                                             Back

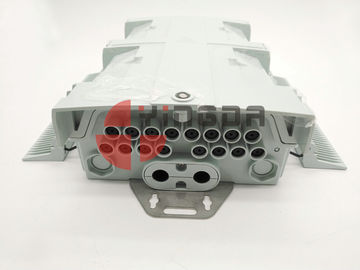

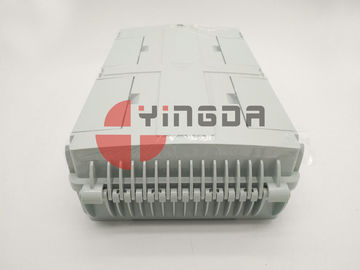

  • The size of whole box is 340*220*95mm.
  • The box can be used indoor and outdoor, wall-mounted and pole mounted.



16 Ports Wall Mount FTTH Fiber Optic Splitter Box 24 Adapters with 96 Fibers IP65 216 Ports Wall Mount FTTH Fiber Optic Splitter Box 24 Adapters with 96 Fibers IP65 3

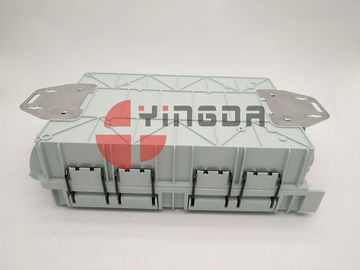

  • The sealing method is screw and buckle, which offer the entire box excellent sealing performance.



16 Ports Wall Mount FTTH Fiber Optic Splitter Box 24 Adapters with 96 Fibers IP65 416 Ports Wall Mount FTTH Fiber Optic Splitter Box 24 Adapters with 96 Fibers IP65 5

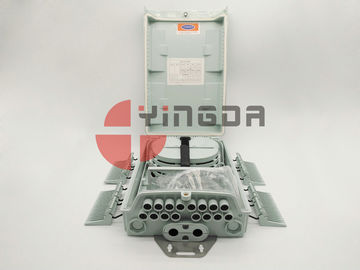

  • Box interior overview.
  • These splice trays can be flipped up. They are jointed with a hinge at one side, which makes the operation in each tray easier. You can take each tray out, after splicing, fix it in closure.



16 Ports Wall Mount FTTH Fiber Optic Splitter Box 24 Adapters with 96 Fibers IP65 616 Ports Wall Mount FTTH Fiber Optic Splitter Box 24 Adapters with 96 Fibers IP65 7

  • Black strap can fix these splice trays well.
  • Each tray can splice 24 fibers, so the max. capacity of box is 96 cores.
  • There is a tool on the splice cassette cover. we can use the tool to coil and storage fibers.



16 Ports Wall Mount FTTH Fiber Optic Splitter Box 24 Adapters with 96 Fibers IP65 816 Ports Wall Mount FTTH Fiber Optic Splitter Box 24 Adapters with 96 Fibers IP65 9

  • The adapter holder can accommodate max. 24pcs SC simplex adapters.



16 Ports Wall Mount FTTH Fiber Optic Splitter Box 24 Adapters with 96 Fibers IP65 1016 Ports Wall Mount FTTH Fiber Optic Splitter Box 24 Adapters with 96 Fibers IP65 11

  • FDB0216M box has 16 outputs for drop cable, 1 uncut port for main fiber cable and two reserved round cable ports. If customers require, we can install cable gland to the reserved ports.
  • The metal parts on the bottom of box are stainless steel.



16 Ports Wall Mount FTTH Fiber Optic Splitter Box 24 Adapters with 96 Fibers IP65 12

  • Standard Accessories
Standard Accessories Splice cassette and cable management tool, installation nuts and bolts, protection sleeves, hose clamp, cable tube, cover, holder, wrench, rubber seal for cable entrance.
Optional Accessories Pole mounted kits



Specifications

Model FDB0216M
Material PC+ABS
Dimension 345*220*95mm
Cable Port 1 uncut port, 2 reserved cable entrance
Cable Dimension uncut port: 10-16.5mm; 2 reserved port: 8-16.5mm
Cable Outport 16 outputs for drop cable
Max. Capacity 96 Fibers (4 trays, 24F/tray)
Sealing structure Mechanical sealing(buckle and screw)
PLC Splitter Max. micro 1x16 Splitter, 2 pcs 1*8 PLC Splitter
Color Gray
IP Grade IP65
Application Wall mount, pole mount
Weight 1.7KGS
