96 Cores Fiber Optic Splice Closure with 1x16 SC/APC PLC Splitter , Outdoor Splitter Box 16 Ports

96 Cores Fiber Optic Splice Closure with 1x16 SC/APC PLC Splitter , Outdoor Splitter Box 16 Ports

  • High Light

    fiber optic closure

    ,

    splitter distribution box

  • Material
    PC/ABS
  • Color
    Gray
  • Dimension
    340*220*95mm
  • Capacity
    Max. 96 Cores
  • Cable Exit
    16 Outputs For Drop Cable
  • Output Diameter
    2*3mm
  • Cable Entry
    1 Uncut Port, 2 Optional Round Ports
  • Entrance Dia.
    Uncut Port: 10-16.5mm;round Port: 8-16.5mm
  • Adapter
    Max. 24pcs SC Simplex
  • PLC Splitter
    Max. 1x16 Mini Splitter(1pc)
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO
  • Model Number
    FDB0216M
  • Minimum Order Quantity
    100pcs
  • Price
    Negotiable
  • Packaging Details
    1pc/box
  • Delivery Time
    5-8 working days
  • Payment Terms
    T/T, Western Union, L/C
  • Supply Ability
    100k per month

96 Cores Fiber Optic Splice Closure with 1x16 SC/APC PLC Splitter , Outdoor Splitter Box 16 Ports

96 Cores Fiber Optic Splice Closure with 1x16 SC/APC PLC Splitter, Outdoor Splitter Box 16 Ports



FDB0216M fiber access termination closure is able to hold up to 16 subscribers and 96 splicing points as closure. it is used as a splicing closure and a termination point for the feeder cable to connect with drop cable in FTTX network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.



Feature

  • Water-proof design with IP-65 Protection Level.
  • Integrated with 4pcs flap-up splice cassette and adaptor holder
  • All stainless metal plate and anti-rusting bolts, nuts
  • Fiber bend radius control more than 40mm
  • Suitable for the fusion splicer or mechanical splice
  • 2 Pcs of 1*8 Splitter can be installed as an option
  • Mechanical sealing structure and mid-span cable entry.
  • 16 outports for drop cable
  • 24 SC adapters for drop cable patching
  • Max. splice capacity 96 fibers



Specifications

Model FDB0216M
Material PC+ABS
Dimension 345*220*95mm
Cable Entry 1 uncut port: 10-16.5mm; 2 reserved cable entrance: 8-16.5mm
Cable Outport 16 outputs for drop cable
Max. Capacity 96 Fibers, 4 trays x 24F
Adapter Max. 24pcs SC simplex
Sealing structure Mechanical sealing
PLC Splitter Max. micro 1x16 Splitter
Color Gray
IP Grade IP65
Application Wall mount, pole mount
Weight 1.85KGS



Applications

  • Wall mounting and pole mounting installation
  • FTTH pre-installation and filed installation
  • 2*3mm indoor FTTH drop cable and outdoor figure-8 FTTH self-supporting drop cable



Product details



96 Cores Fiber Optic Splice Closure with 1x16 SC/APC PLC Splitter , Outdoor Splitter Box 16 Ports 096 Cores Fiber Optic Splice Closure with 1x16 SC/APC PLC Splitter , Outdoor Splitter Box 16 Ports 1

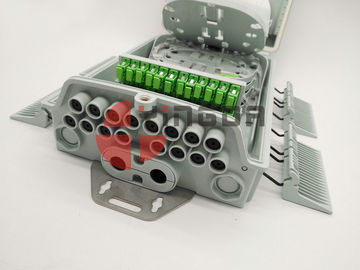

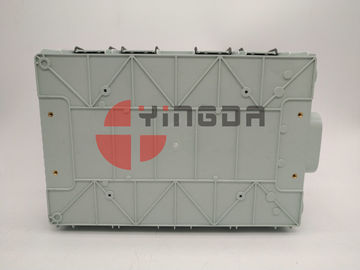

  • Picture 1, it's the outer of the splitter box.

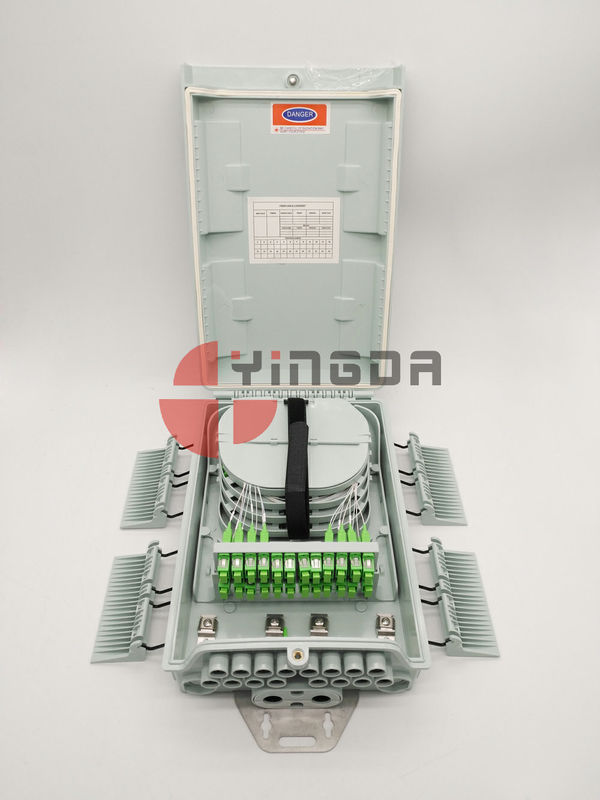

  • Picture 2, it's the inside of the splitter box. The adapter holder can accommodate max.24pcs SC simplex adapters. Now the box installs 2pcs 1x8 mini module PLC splitter.
  • Black strap can fix all of 4 splice trays.



96 Cores Fiber Optic Splice Closure with 1x16 SC/APC PLC Splitter , Outdoor Splitter Box 16 Ports 296 Cores Fiber Optic Splice Closure with 1x16 SC/APC PLC Splitter , Outdoor Splitter Box 16 Ports 3

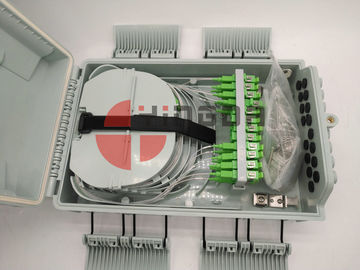

  • Total of 4pcs splice trays inside of the box, each trays can splice 24 cores.
  • Fiber can be coiled and stored in the splice tray. There is a groove to put steel tube of mini plc splitter.
  • The splice trays are jointed with a hinge at one side, which makes the operation in each tray easier. You can take each tray out, after splicing, fix it in closure.



96 Cores Fiber Optic Splice Closure with 1x16 SC/APC PLC Splitter , Outdoor Splitter Box 16 Ports 496 Cores Fiber Optic Splice Closure with 1x16 SC/APC PLC Splitter , Outdoor Splitter Box 16 Ports 5

  • Flap up the splice trays to see the bottom of box.
  • The bottom is designed to coiled and stored fibers if need.
  • There are several grooves that can be used according to the customer's own needs.



96 Cores Fiber Optic Splice Closure with 1x16 SC/APC PLC Splitter , Outdoor Splitter Box 16 Ports 696 Cores Fiber Optic Splice Closure with 1x16 SC/APC PLC Splitter , Outdoor Splitter Box 16 Ports 7

  • Adapter holder can install max. 24 pcs SC simplex adapters.



96 Cores Fiber Optic Splice Closure with 1x16 SC/APC PLC Splitter , Outdoor Splitter Box 16 Ports 896 Cores Fiber Optic Splice Closure with 1x16 SC/APC PLC Splitter , Outdoor Splitter Box 16 Ports 9

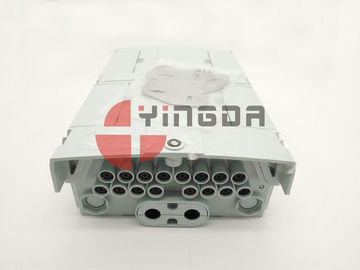

 16outputs+1uncut port+2 optional round ports                            Standard accessories

  • If customers require, we can help to install the cable glands on the two optical round ports, as the red marked in picutre.



Standard Accessories

Splice cassette and cable management tool, installation nuts and bolts, protection sleeves hose clamp, cable tube, wrench, cover, holder, rubber seal for cable entrance
